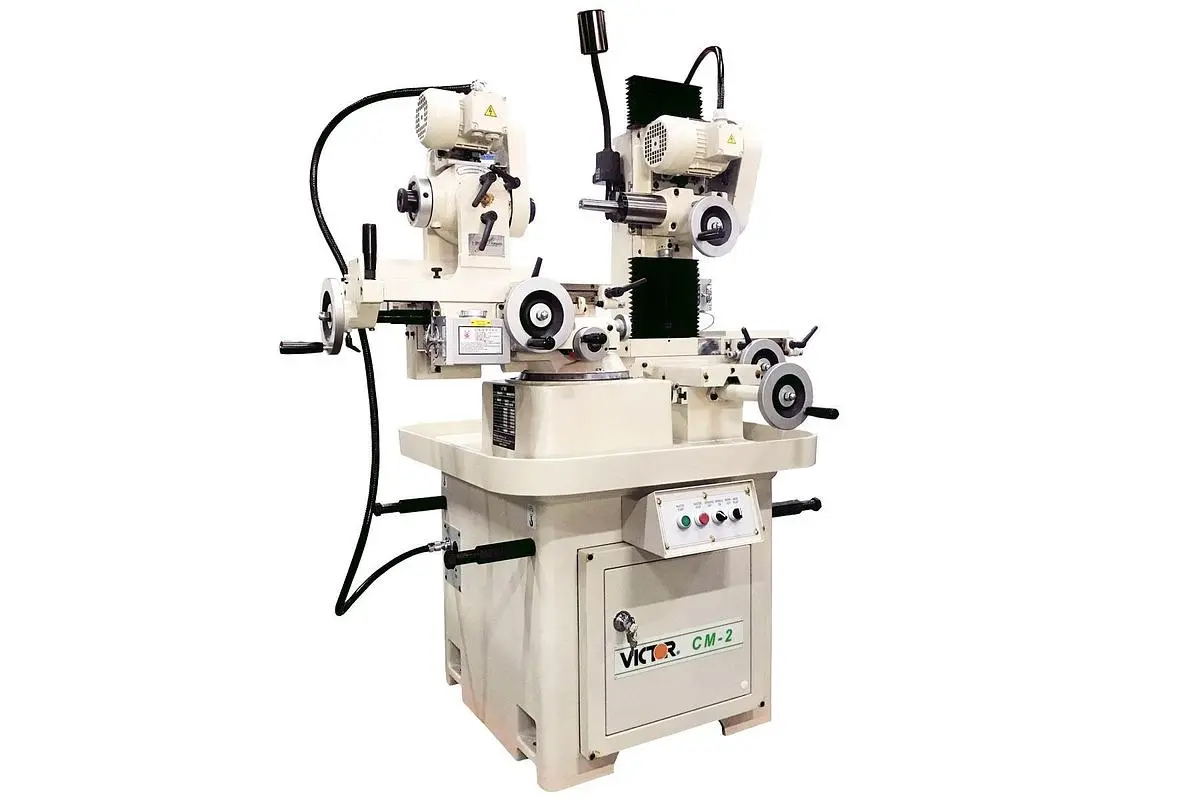

NEW VICTOR MACHINES CM-2

Victor CM-2 Monaset Tool & Cutter Grinder provides versatile capability for multiple grinding operations at a single chucking of the work piece.
FEATURES:
Sharpens and reconditions cutters & tools with complex shapes
Multiple grinding operations at a single chucking of the work piece. It saves setup time and assures excellent concentricity
Versatility for generating straight or tapered, right or left-hand, infinitely variable leads from a simple built-in lead mechanism
Turntable mounting of entire workhead slide assembly, adjustable through 210° in the horizontal plane
Workhead that is adjustable on separate main slide with dual handwheel control
Offset slide for workhead spindle permits centerline of spindle to be offset from center of turntable
Micrometer stop dogs and graduated dials which greatly simplify accurate positioning of workhead main slide, wheelhead cross, and longitudinal slides

STANDARD ACCESSORIES:
Leveling blocks
Collets (inch): 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1, 1-1/8 and 1-1/4
Collet wrench
Indexing plates (8, 10, 12 divisions)
Spring-loaded index pawl for workhead indexing plate
Diamond dressing tool
Diamond dressing tool holder or tool support bracket
Grinding wheels (WA) (including flat, bowl and dish types)
Grinding wheel guards with extension bar
Grinding wheel flanges: 2 standard and 1 extended flanges
Wheel spanner
Cutter holder center gauge
Workhead gauge for zeroing
Wrench set
Toolbox and adjusting tools
Oil bottle

Type: Monaset Tool & Cutter Grinder
Max. swing over main slide diameter: 12"
Max. collet work diameter: 1.25"
Min. collet work diameter: 0.20"
Max. spiral angle: 60°
Distance between collet nut and tailstock center: 5.31"
Grinding wheel diameter: 4"
Main slide travel: 5.12"
Offset slide travel: 3.94"
Front of center: 1.97"
Rear of center: 1.97"
Rotation of horizontal plane: ±105° (210°)
Rotation of vertical plane: ±40° (80°)
X axis - left-right slide travel: 4.33"
Y axis - total front-to-rear slide stroke: 6.69"
Z axis - total vertical slide stroke: 9.45"
Workhead speed: 440 rpm
Grinding wheelhead speeds: 4000, 6000, 8000 rpm
Workhead: 1/4 HP
Wheelhead: 1/2 HP
Floor space: 60"x67"x62.12"
Shipping dimensions (LxWxH): 60"x45"x65"
Gross weight: 2,140 lb.
