New | in-Stock VICTOR MACHINES TM-40 Tool & Cutter Grinders | DC Brewer Machinery #919413
New | in-Stock

NEW VICTOR MACHINES TM-40

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

DC Brewer Machinery
470Listings|4Followers
View seller profile
Overview
Tool & Cutter Grinders
VICTORTM40

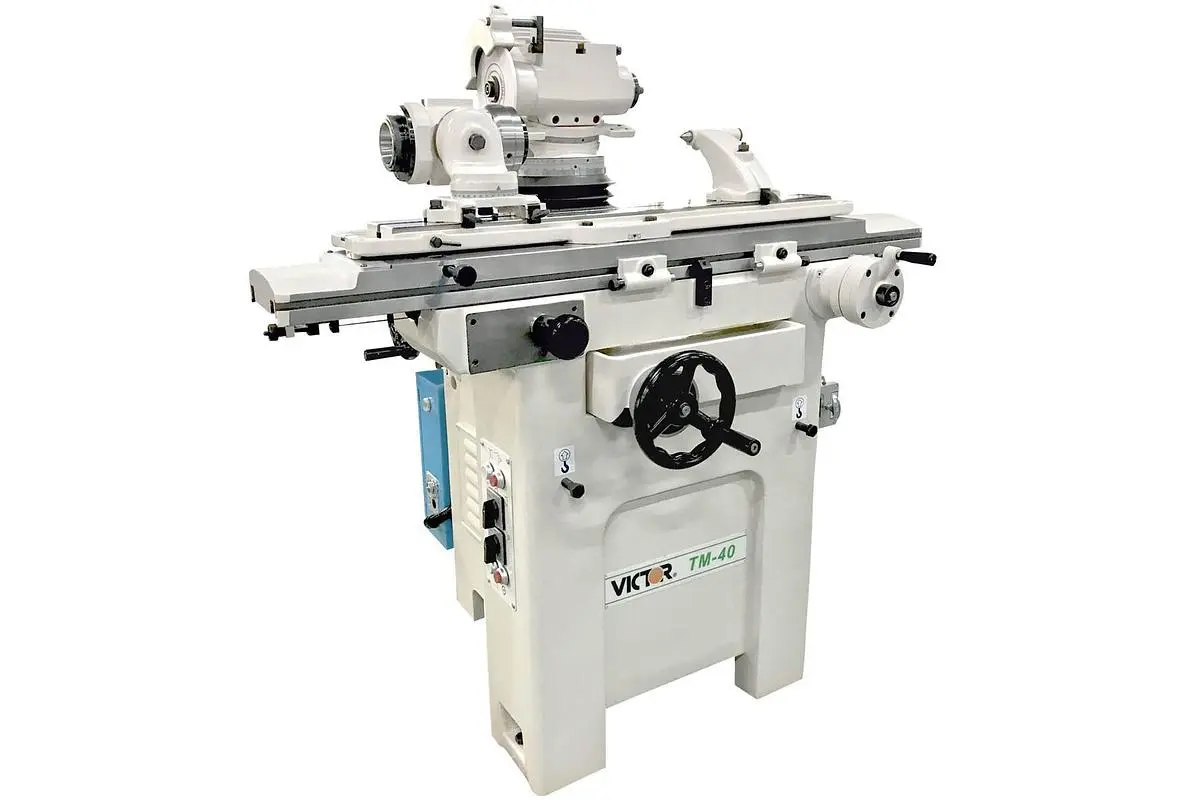

Victor TM-40 Universal Tool & Cutter Grinder can perform a wide range of work. In addition to almost limitless application as a tool sharpener, TM-40 can also be adapted to light cylindrical, surface and internal grinding operations. A wide selection of attachments permits you to extend the versatility of the basic machine to suit your specific needs.
FEATURES:
Versatility
A wide selection of optional attachments
Universal workhead
Tilting and swiveling wheelhead
2 HP grinding wheel motor

STANDARD ACCESSORIES:
Leveling blocks
Workhead
Right-hand tailstock
Center gauge
Ejector rod
Center for workhead spindle MT5
Diamond dresser holder
Grinding wheel washer set
Wheel guard (max. Ø 3.54")
Wheel guard (max. Ø 4.33")
Wheel guard (max. Ø 4.92")
Wheel guard (max. Ø 5.91")
Wheel guard holder (short)
Wheel guard holder (long)
2 sets of grinding wheel flanges
4" grinding wheel flange extension (Ø 1.25")
Grinding wheel (WA 90D x 38T x 31.75H)
Grinding wheel (GC 125D x 38T x 31.75H)
Grinding wheel (WA 150D x 13T x 31.75H)
Grinding wheel (GC 150D x 13T x 31.75H)
Grinding wheel (WA 150D x 19T x 31.75H)
Draw-in bolt for workhead and spacer
Wheel spanner
Collet wrench
Fixture rod
Open end wrench
Combination wrench (19 mm)
Combination wrench (24 mm)
Toolbox and adjusting tool

Specs
Weight
2,140 lb.

Type: Universal Tool & Cutter Grinder
Longitudinal movement of table (x-axis): 15.75"
Cross movement of saddle (y-axis): 9.84"
Vertical movement of wheelhead (z-axis): 9.84"
Distance between centers: 27.56"
Distance between tailstock and workhead: 22.83"
Workhead taper: One end MT5 / the other NT50
T-slot: 0.59" (+0.00197" ~ +0.00394")
Working range of table: 5.31" x 37"
Rotative angle of table: ±60°
JOG adjustment of table: ±10°
Inclination of wheelhead: ±15°
Rotative angle of wheelhead: 360°
Distance between centers of spindle and table: Max. 11.81" / Min. 1.97"
Distance between centers of spindle and T-slot: Max. 16.34" / Min. 6.50"
Peak power: 2 HP 3 Phase
Grinding wheel spindle speed: 2600, 3700, 6200 rpm
Dimensions (LxWxH): 68.31" x 61" x 58.27"
