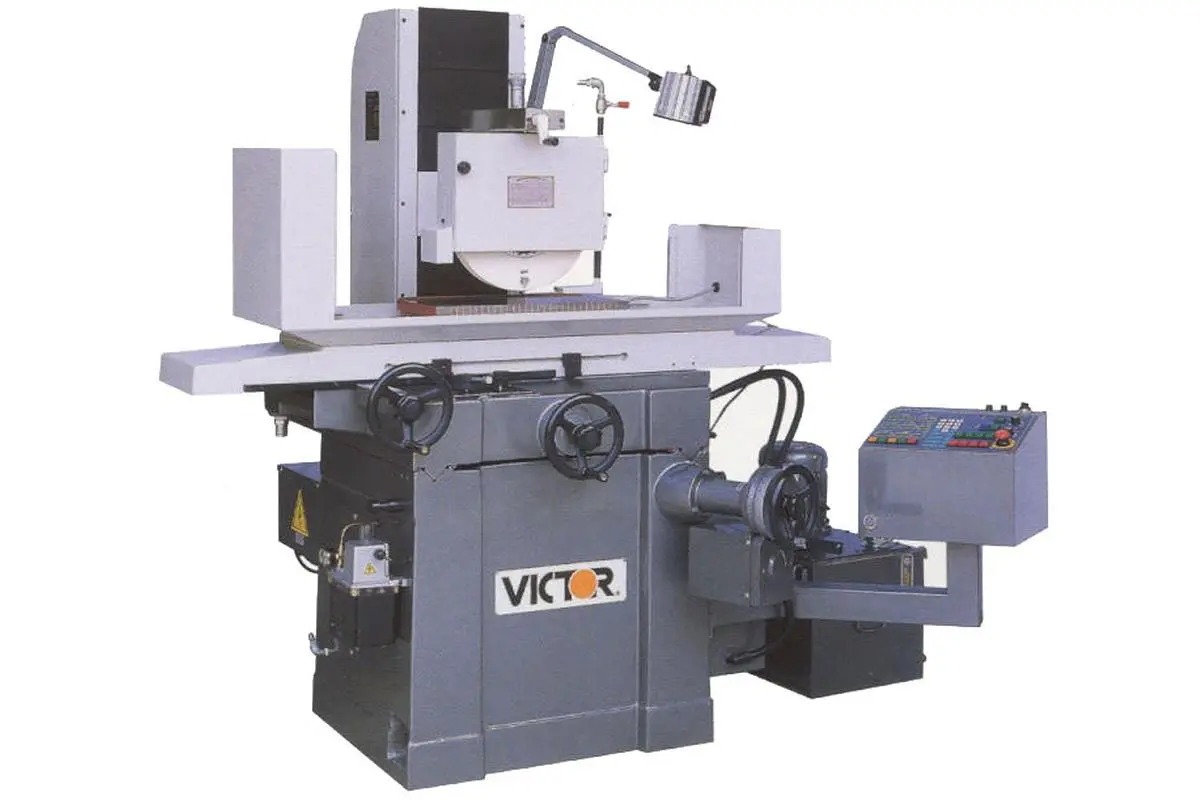

Saddle type surface grinder with longitudinal by hydraulic, cross feed by solid state relay, and vertical feed by manual. Optional auto downfeed system with elevating micro-feed motor is available.
FEATURES:
Meehanite casting of base, column, saddle, and table with outstanding structure designed and through internal stress elimination to ensure greater rigidity, accuracy, and stability
Precision spindle with P4 precision angular contact bearings and cartridge design that is completely sealed and lubricated to ensure high accuracy, durability, and superior surface finish
Hydraulic driven longitudinal table movement
Longitudinal and cross slideways are coated with Turcite-B to provide stable movement and superior accuracy. It's specially designed to maintain long life span
Cross feed control unit consists of a solid state relay which is designed to ensure a long service life
Automatic lubrication to all slide ways when hydraulic switch is "On"
Optional automatic down feed with elevating micro-feed motor and intuitive control panel to add more convenience to grinding operations
STANDARD ACCESSORIES:
Grinding wheel
Wheel flange
Flange extractor
Wheel balancing arbor and base
Wheel dresser withdiamond
Leveling screws and pads
Halogen work light
MACHINE INCLUDES:
Electromagnetic chuck
Auto demagnetizer for chuck
Parallel dresser (manual)
Coolant system
Type: Hydraulic Surface Grinder
Table size: 16" x 32"
Max. table travel: 18" x 34"
Max. surface ground: 16" x 32"
Max. distance from spindle center to table: 22"
Chuck size: 16" x 32" (Electromagnetic chuck)
Table speed: 200" ~ 1,000" / min
Table slideway: V & Flat Turcite Way
Auto cross feed increment: 0.004" ~ 0.8"
Power cross feed: 44" / min
Cross handwheel feed per graduation: 0.001"
Cross handwheel feed per revolution: 0.2"
Rapid power head elevation: 13" / min (Auto down feed model)
Auto down feed (including rapid): 0.0001" ~ 0.0999" / Time (Auto down feed model)
Vertical handwheel feed per graduation: 0.0001"
Vertical handwheel feed per revolution: 0.05"
Max. wheel size (O.D. x T x I.D.): 14" x 2" x 5"
Spindle wheel speed: 1,750 rpm
Spindle drive motor: 5 HP
Hydraulic pump motor: 2 HP
Auto cross feed motor: 1/5 HP
Rapid head elevation motor: 1/5 HP (Auto down feed model)
Coolant pump motor: 1/8 HP
Shipping dimensions (LxWxH): 90" x 90" x 85"
Net weight (Approx.): 5,830 lb.
Gross weight (Approx.): 6,380 lb.
