FEATURES:
Easy to read digital display on actual spindle rpm
High precision preloaded ball bearing 6-station turret with indexing lever
Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle
Fast lever collet chucking with a single movement
Hardened and ground alloy tool steel bedways.
Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
Double cross slide is held securely to the bed by a mating dovetail section and can be locked in any position on the bed.
5C lever type collet closer standard
3 HP frequency controlled motor
Yaskawa Inverter Drive
Variable frequency drive
5C lever type collet closer
Double tool cross slide
6-station turret with indexing lever
Coolant system
Leveling screws and pads
Manual and parts list
Releasing tap holder
Adjustable rotary stop
Drill chuck arbor
Drill chuck
Knee tool
Tool holder extension
5C collet fixture plate
5C collet set
Vertical cut-off slide without cut-off blade
Straight and taper turning slide for double tool cross slide
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Chip and coolant shield
Step chuck and closer
Compound slide
Threaded positive stops
Slide tool
Quick action recessing tool
Fixture plate
Adjustable holder
Radius turning attachment
Centering and facing tool
Tool setting gage
Universal collet stop
Quick change adjustable holder
Knurling holder
End-working slide
Releasing die nut holder

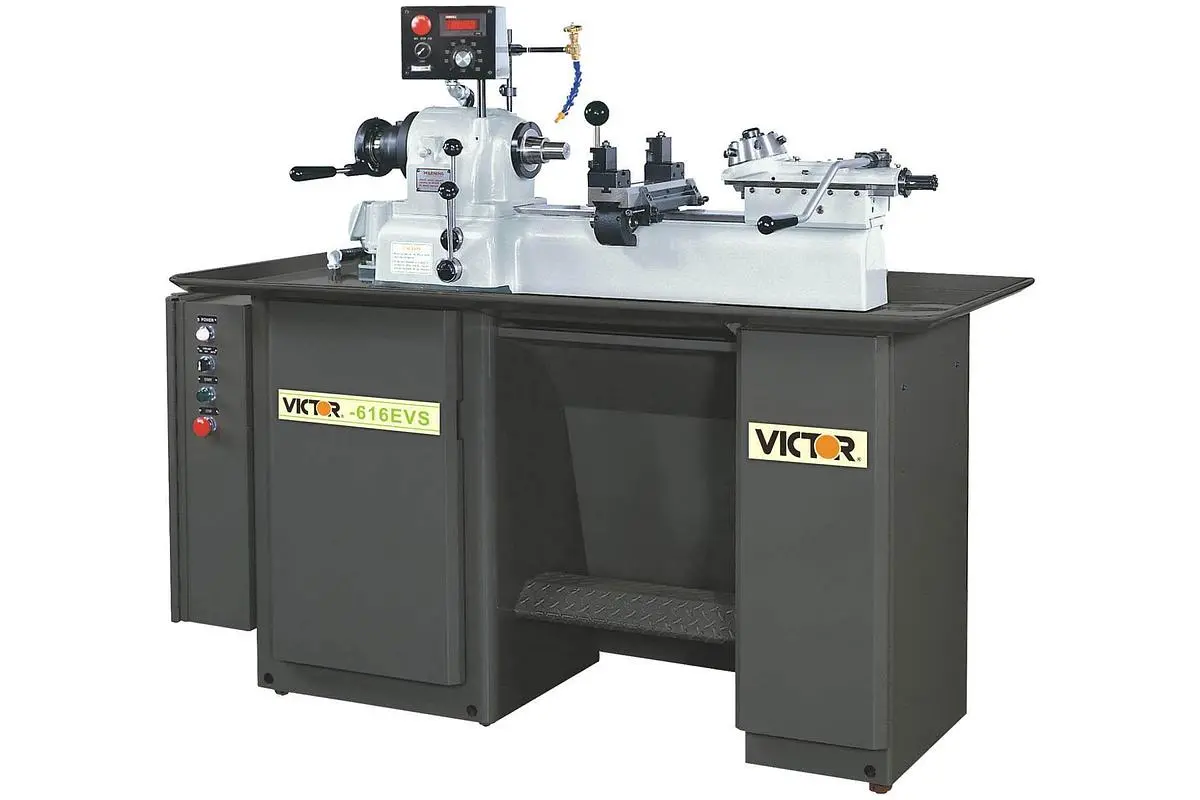

Type: Electronic Variable Speed Second Operation Lathe
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4° taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
Swing over bed: 9"
I.D. of turret head: 5/8"
Double tool cross slide travel: 3-3/4"
Turret slide travel: 4"
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
Machine dimensions (LxWxH): 69"x28"x63"
Gross weight: 1,364 lb.
