FEATURES:
Easy to read digital display on actual spindle rpm
Designed to machine precision small diameter parts
High performance machining capability of shaft, chucking, or collet held work piece
Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle
Hardened and ground alloy tool steel bedways.
Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
Hardened and ground compound slide
Tailstock with graduated quill
5C lever type collet closer standard
3 HP frequency controlled motor
Yaskawa Inverter Drive
Variable frequency drive
5C lever type collet closer
Compound slide
Tailstock
Coolant system
Leveling screws and pads
Manual and parts list
OPTIONAL ACCESSORIES:
Releasing tap holder
Adjustable rotary stop
Drill chuck arbor
Drill chuck
Knee tool
Tool holder extension
5C collet fixture plate
5C collet set
Vertical cut-off slide without cut-off blade
Straight and taper turning slide for double tool cross slide
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Chip and coolant shield
Step chuck and closer
Slide tool
Quick action recessing tool
Double tool cross slide
Adjustable holder
Radius turning attachment
Center and facing tool
Tool setting gage
Universal collet stop
Quick change adjustable tool holder
Knurling holder
End-working slide
Releasing die nut holder
Threaded positive stops
Fixture plate
Variable frequency drive
5C lever type collet closer
Compound slide
Tailstock
Coolant system
Leveling screws and pads
Manual and parts list
OPTIONAL ACCESSORIES:
Releasing tap holder
Adjustable rotary stop
Drill chuck arbor
Drill chuck
Knee tool
Tool holder extension
5C collet fixture plate
5C collet set
Vertical cut-off slide without cut-off blade
Straight and taper turning slide for double tool cross slide
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Chip and coolant shield
Step chuck and closer
Slide tool
Quick action recessing tool
Double tool cross slide
Adjustable holder
Radius turning attachment
Center and facing tool
Tool setting gage
Universal collet stop
Quick change adjustable tool holder
Knurling holder
End-working slide
Releasing die nut holder
Threaded positive stops
Fixture plate
Variable frequency drive
5C lever type collet closer
Compound slide
Tailstock
Coolant system
Leveling screws and pads
Manual and parts list
OPTIONAL ACCESSORIES:
Releasing tap holder
Adjustable rotary stop
Drill chuck arbor
Drill chuck
Knee tool
Tool holder extension
5C collet fixture plate
5C collet set
Vertical cut-off slide without cut-off blade
Straight and taper turning slide for double tool cross slide
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Chip and coolant shield
Step chuck and closer
Slide tool
Quick action recessing tool
Double tool cross slide
Adjustable holder
Radius turning attachment
Center and facing tool
Tool setting gage
Universal collet stop
Quick change adjustable tool holder
Knurling holder
End-working slide
Releasing die nut holder
Threaded positive stops
Fixture plate

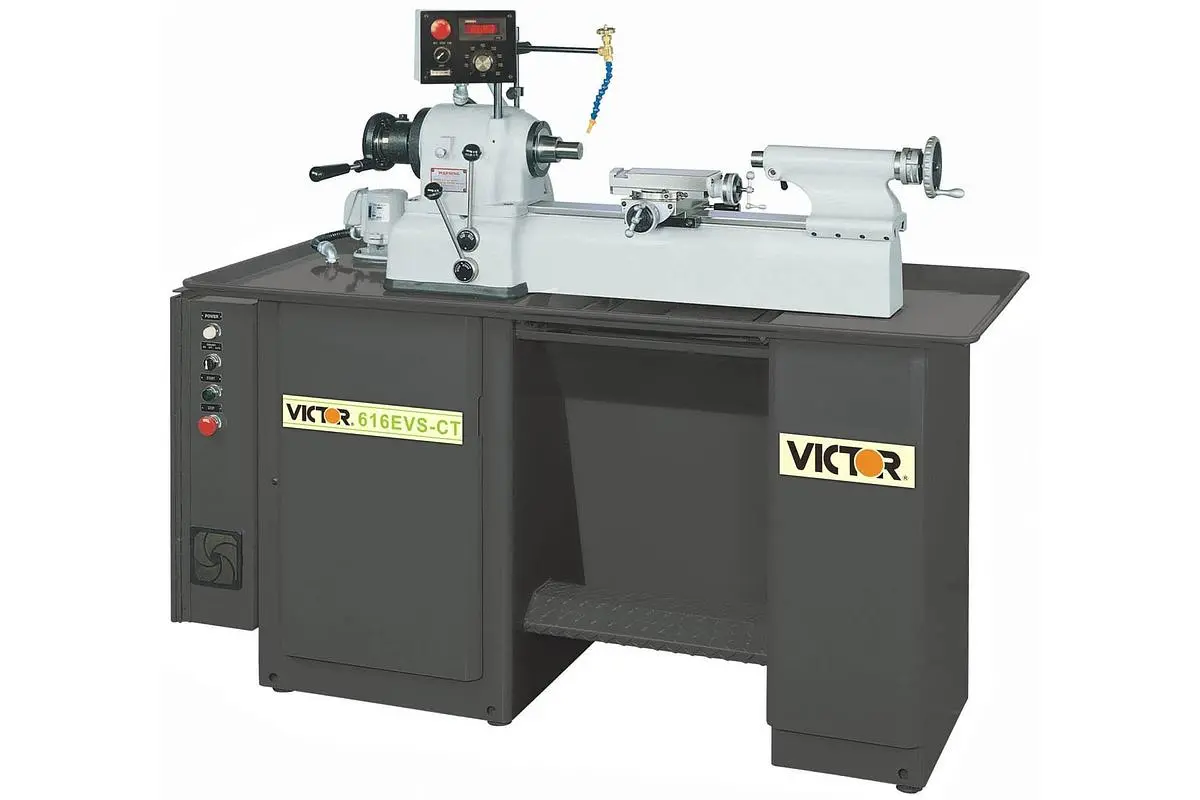

Type: Electronic Variable Speed Second Operation Lathe
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4° taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
Swing over bed: 9"
Compound slide X-axis travel: 4-1/2"
Compound slide Z-axis travel: 5-1/2"
Tailstock spindle taper: M.T. 2
Tailstock spindle travel: 3-3/4"
Inverter spindle motor: 3 HP, 220V 3PH
Coolant pump: 1/8 HP
Machine dimensions (LxWxH): 73"x35"x75"
Gross weight: 1,364 lb.
