FEATURES:
Easy to read digital display on actual spindle rpm
Welded steel pedestal
High accuracy spindle
Hardened and ground
Precision steel bedways
Compact design
Fast setup
Easy operation
Fast lever collet chucking
Wide chip pan
Foot rest
5C lever type collet closer standard
1 HP frequency controlled motor
Variable frequency drive
5C lever type collet closer
Double tool cross slide
Welded steel pedestal
Manual and parts list
OPTIONAL ACCESSORIES:
Compound slide
5C collet fixture plate
Vertical cut-off slide without cut-off blade
Step chuck and closer
5C collet set
Fixture plate
Expanding collet and pads
Straight and taper turning slide for double tool cross slide
Thread positive stops
Tool holder collet (collet type)
Releasing tap holder (collet type)
Variable frequency drive
5C lever type collet closer
Double tool cross slide
Welded steel pedestal
Manual and parts list
OPTIONAL ACCESSORIES:
Compound slide
5C collet fixture plate
Vertical cut-off slide without cut-off blade
Step chuck and closer
5C collet set
Fixture plate
Expanding collet and pads
Straight and taper turning slide for double tool cross slide
Thread positive stops
Tool holder collet (collet type)
Releasing tap holder (collet type)
Variable frequency drive
5C lever type collet closer
Double tool cross slide
Welded steel pedestal
Manual and parts list
OPTIONAL ACCESSORIES:
Compound slide
5C collet fixture plate
Vertical cut-off slide without cut-off blade
Step chuck and closer
5C collet set
Fixture plate
Expanding collet and pads
Straight and taper turning slide for double tool cross slide
Thread positive stops
Tool holder collet (collet type)
Releasing tap holder (collet type)

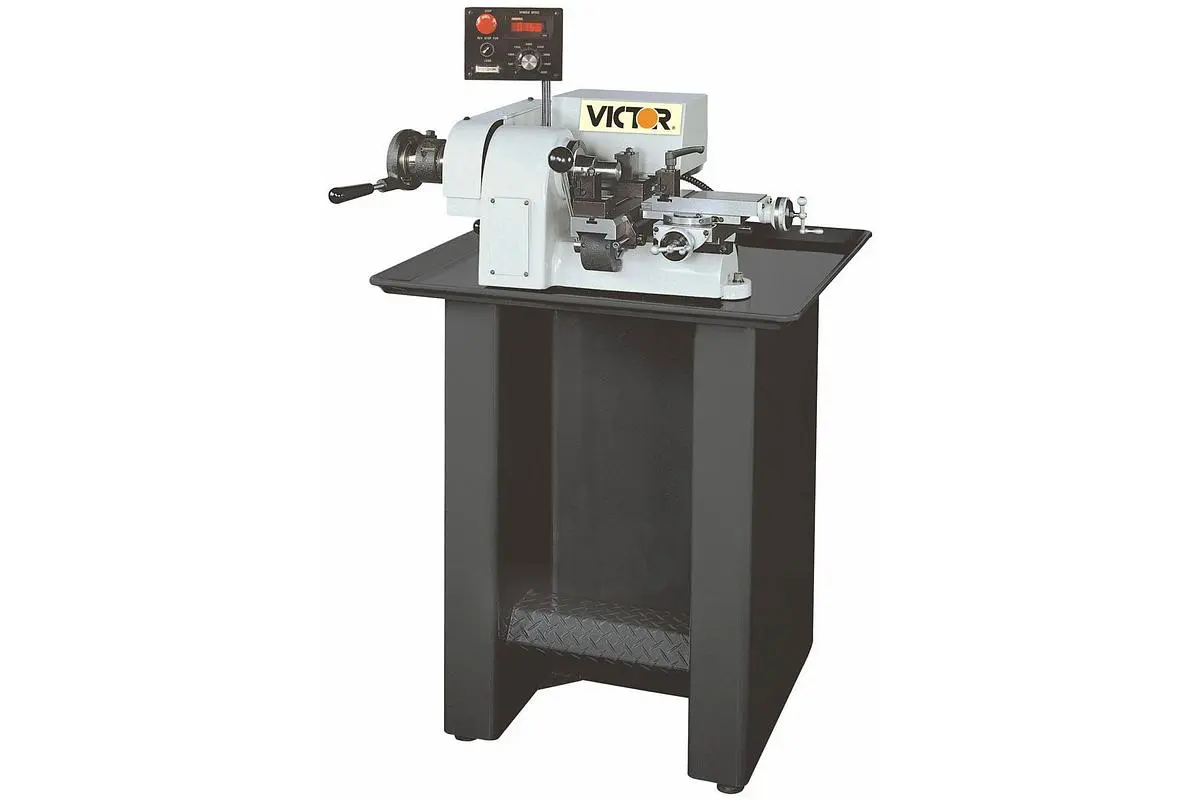

Type: Electronic Variable Speed Finishing Lathe
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2-3/16"
Spindle nose I.D. / O.D.: 5C / 4° taper
Variable spindle speeds: 0 ~ 4,000 rpm (5C collet)
Swing over bed: 9"
Inverter spindle motor: 1 HP 220V 3PH
Coolant pump: Optional
Machine dimensions (LxWxH): 36"x36"x55"
Gross weight: 820 lb.
