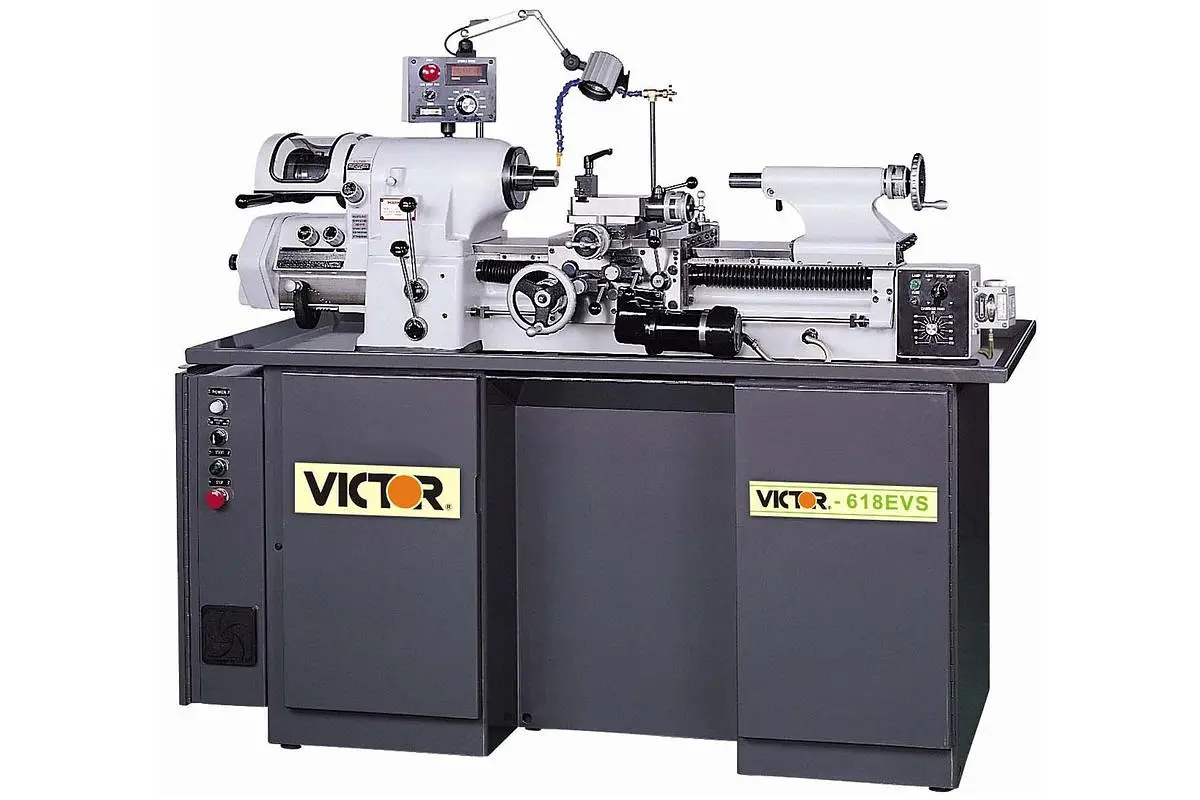

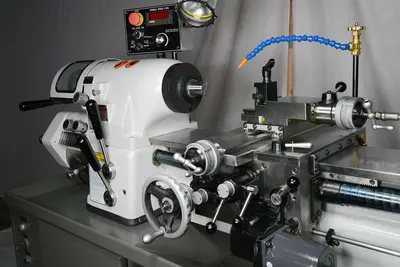

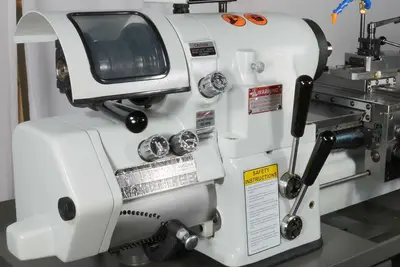

Super-precision toolroom lathe equipped with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quiet. With fewer mechanical parts and exceptional built quality, Victor 618EVS toolroom lathe is easy to maintain, yet provides superior accuracy and performance.
FEATURES:
Easy to read digital display on actual spindle rpm
Infinitely electronic variable spindle speeds from 0 ~ 4,000 rpm
Spindle runout within 50 millionths
Dual range inch/metric quick change gearbox
Electric variable feed control on carriage and cross slide
Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
Hardened and ground alloy tool steel bedways
Turcite-B slideway bearing surface between carriage and bed
Automatic thread length control with fine adjustable stops to provide accurate threading
Quick-action tool post slide for threading
5C lever type collet closer standard
3 HP frequency-controlled motor
Yaskawa Inverter Drive
Variable frequency drive
5C lever type collet closer
Tool holder
Tailstock
Coolant system
Halogen work light
Chuck cover with limit switch
Leveling screws and pads
Manual and parts list
6" adjustable 3-jaw chuck with 4º taper back plate
Chip and coolant shield (High impact resistance Lexan polycarbonate resin)
OPTIONAL ACCESSORIES:
Tool setting gage
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
Digital readout
Variable frequency drive
5C lever type collet closer
Tool holder
Tailstock
Coolant system
Halogen work light
Chuck cover with limit switch
Leveling screws and pads
Manual and parts list
6" adjustable 3-jaw chuck with 4º taper back plate
Chip and coolant shield (High impact resistance Lexan polycarbonate resin)
OPTIONAL ACCESSORIES:
Tool setting gage
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
Digital readout
Variable frequency drive
5C lever type collet closer
Tool holder
Tailstock
Coolant system
Halogen work light
Chuck cover with limit switch
Leveling screws and pads
Manual and parts list
6" adjustable 3-jaw chuck with 4º taper back plate
Chip and coolant shield (High impact resistance Lexan polycarbonate resin)
OPTIONAL ACCESSORIES:
Tool setting gage
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
Digital readout
Type: Super-Precision Electronic Variable High-Speed Toolroom Lathe
With jaw chucks: 6"
With expanding collets: 3"
With round 5C collets: 1-1/16"
With hexagon 5C collets: 7/8"
With square 5C collets: 3/4"
With step chucks: 1-1/16" to 6"
Spindle nose diameter: 2.189"
Spindle nose I.D. / O.D.: 5C / 4° taper
Hole through spindle: 1-1/4"
Variable spindle speeds: 0 ~ 4,000 rpm (5C Collet) 0 ~ 3,000 rpm (6" 3-Jaw Chuck)
Swing over carriage: 9"
Distance between center: 18"
Swing over cross slide: 6"
Swing over bed: 11"
Lead screw diameter: 1" - 8 TPI
Carriage power feed range: 5/16" ~ 7"
Cross slide power feed range: 3/16" ~ 4"
Cross slide travel: 6"
Quick-action compound slide travel: 0.1"
Compound slide travel: 3"
Inch threads: 11 ~ 108 TPI (36 thread changes)
Metric threads: 0.275 ~ 2.7 mm (36 thread changes)
Tailstock spindle diameter: 1.358"
Tailstock spindle taper: M.T. 2
Tailstock spindle travel: 3-3/4"
Inverter spindle motor: 3 HP 220V 3PH
Coolant pump: 1/8 HP
D.C. feed motor: 110V, 70W
Machine dimensions (LxWxH): 73"x30"x67"
Gross weight: 2,530 lb.
