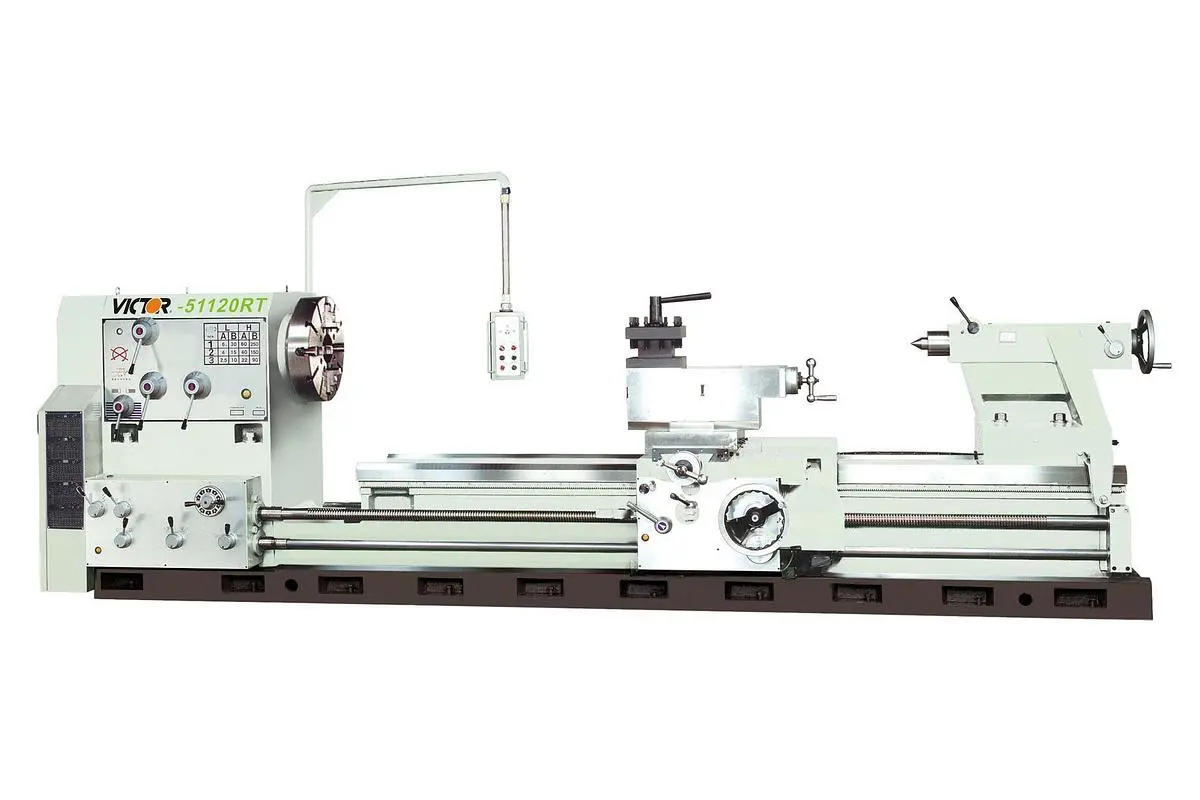

NEW VICTOR MACHINES 5160RT 5180RT 51120RT 51160RT 51200RT 51240RT

The Victor 5100RT series lathe is designed for outstanding performance and structural rigidity. Its large 6.02" spindle bore accommodates large diameter workpieces.
FEATURES:
6.02" spindle bore is designed to accommodate larger diameter workpieces
Carbonized and precision ground Ni-Cr-Mo alloy steel gears and shafts
The precision ground spindle is supported by high precision bearings suitable for heavy and precision cutting
One-piece structure bed enhances the machine's life and working performance
High tensile cast iron wide bed ensures rigidity, stability, and low vibration during machining operations
Universal gearbox for inch, metric, D.P., and module threading without changing gears
Oil bath lubrication and a built-in safety clutch safeguard the continuous and proper operation of the gearbox
Automatic forced lubrication system in the headstock
Control of the main drive through the electromagnetic brake
The tailstock is equipped with a two-speed quill feed for convenience in drilling work
Automatic lubrication system built inside the apron
A locked safe device protects feeding and threading operations
4-way power rapid traverse

STANDARD ACCESSORIES:
Center sleeve
Dead center M.T. #6
Coolant system
Tailstock with a two-speed quill feed
Removable gap
Leveling screws and pads
Manual and parts list
Tool box with tools
MACHINE INCLUDES:
Steady rest with rollers
4-way power rapid traverse
45" face plate with 4-jaw
Auto lubrication system
Electromagnetic brake
4-way tool post
Halogen work light
Chuck cover with limit switch

Type: Big Bore Heavy-Duty Lathe
Swing over bed: 51"
Swing over cross slide: 39"
Swing over gap: 72.80"
Bed width: 26"
Distance between centers: 59.00" 78.74" 118.11" 157.48" 196.85" 236.22"
Spindle bore diameter: 6.02" (9.06" or 12.13" Opt.)
Taper of center in sleeve: M.T. 6
Spindle nose: A2-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 4 ~ 400 rpm
Range of longitudinal feeds: 0.0033" ~ 0.40"/rev.
Range of cross feeds: 0.0017" ~ 0.20"/rev.
Inch threads: 1/4 ~ 30 TPI x 70 kinds
Metric threads: 1 ~ 120 mm x 62 kinds
Cross slide travel: 25"
Compound slide travel: 16.50"
Tailstock taper center: M.T. 6
Tailstock quill travel: 13.38"
Main motor: 30 HP 4P / 3 Phase
Coolant pump: 1/4 HP
Shipping dimensions (LxWxH): 161"x80"x88" 181"x80"x88" 221"x80"x88" 260"x80"x88" 301"x80"x88" 341"x80"x88"
Gross weight: 17,420 lb. 18,740 lb. 21,390 lb. 24,030 lb. 26,680 lb. 29,330 lb.
