Overview
Type:
Engine Lathes
Manufacturer:
VICTOR
Model:
3260RS 3280RS 32120RS 32160RS 32200RS 32240RS
Stock #:
8171408
Description

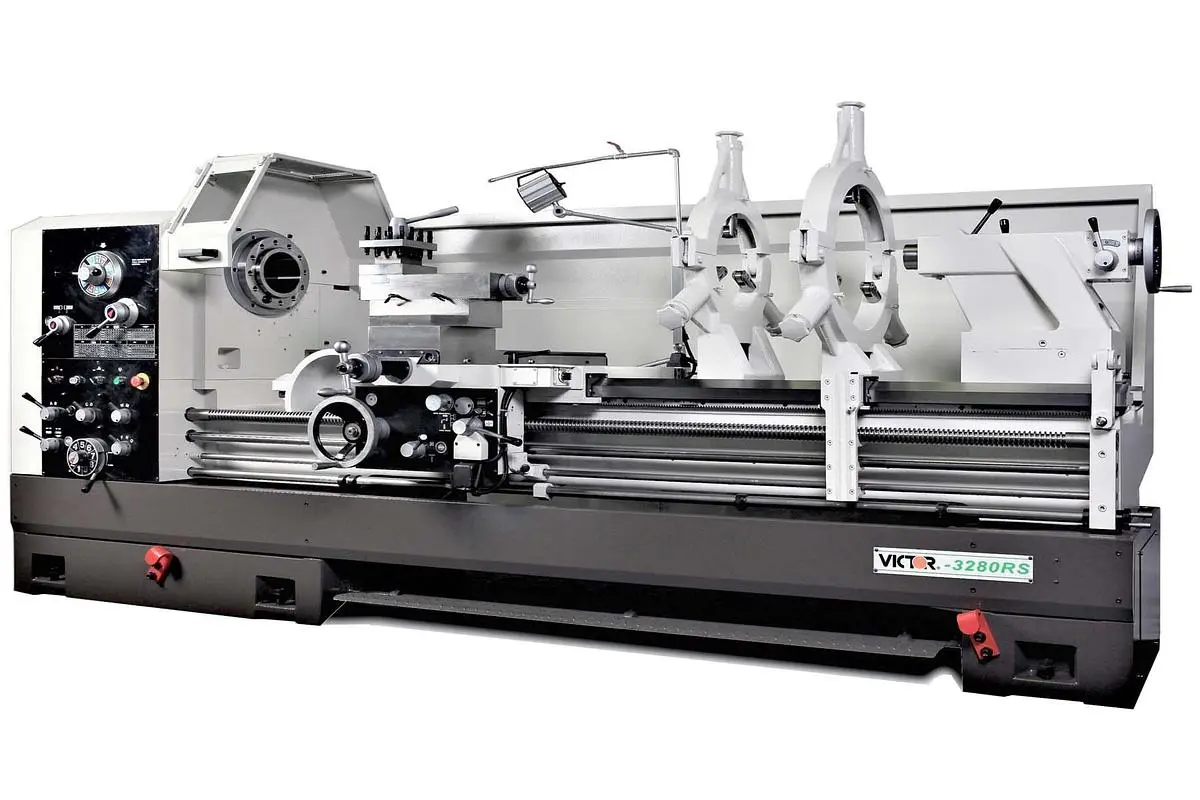

Victor 3200RS series lathe is designed to provide outstanding performance and structural rigidity with a 4-1/8" spindle bore and 20 HP main motor.
FEATURES:
4-1/8" spindle bore with D1-11 camlock spindle nose
The precision ground spindle is supported at three points by high-precision bearings
Heavily ribbed wide bed with induction hardened and precision ground bed ways for rigidity and low vibration
Hardened and precision ground alloy steel gears and shafts

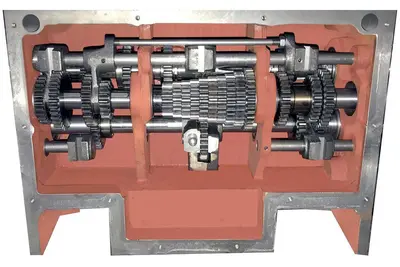

Universal gearbox for inch, metric, D.P., and module threading without changing gears
Automatic and manual dual-mode lubrication system for slideways
Adjustable safety overload device
The tailstock quill is equipped with 4:1 reduction gearing ratio to provide easy drilling operation
Two-way longitudinal power rapid traverse on the model with 120" between centers or longer
Automatic stopper for longitudinal feeds
20 HP main motor

STANDARD ACCESSORIES:
Center sleeve
Dead center M.T. #5
Threading dial indicator
Coolant system
Leveling screws and pads
Tailstock with two-speed quill
Removable gap
Two-way power rapid traverse on model with 120" between centers or longer
Manual and parts list
MACHINE INCLUDES:
Steady rest with rollers
4-way tool post
Halogen work light
Chuck cover with limit switch

Specifications

Type: Precision Heavy-Duty Lathe
Swing over bed: 32"
Swing over cross slide: 23.50"
Swing over gap: 44"
Bed width: 18-1/8"
Distance between centers: 59.06" 78.74" 118.11" 157.48" 196.85" 236.22"
Spindle bore diameter: 4.13" (6.02" Opt.)
Taper of center in sleeve: M.T. 5
Spindle nose: D1-11 (Opt. 6.02" bore is A2-11)
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 15 ~ 1,000 rpm
Range of longitudinal feeds: 0.0020" ~ 0.0276"/rev.
Range of cross feeds: 0.0010" ~ 0.0138"/rev.
Inch threads: 2 ~ 28 TPI x 36 kinds
Metric threads: 0.8 ~ 14 mm x 38 kinds
Cross slide travel: 16-1/2"
Compound slide travel: 10"
Tailstock taper center: M.T. 5
Tailstock quill travel: 9"
Main motor: 20 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 136"x52"x71" 156"x52"x71" 197"x52"x71" 237"x52"x71" 276"x52"x71" 315"x52"x71"
Gross weight: 7,280 lb. 7,940 lb. 9,480 lb. 10,800 lb. 12,130 lb. 13,450 lb.
