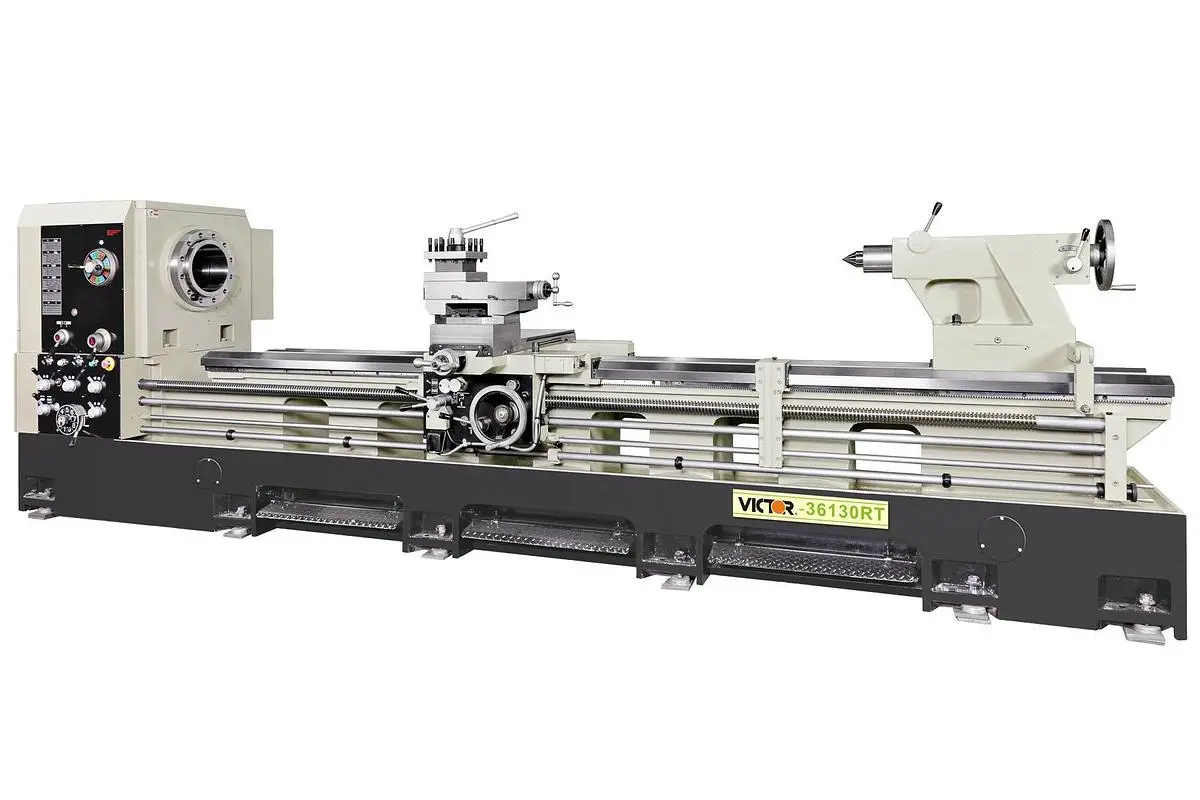

NEW VICTOR MACHINES 3670RT 3690RT 36130RT 36170RT 36210RT 36250RT

The Victor 3600RT series lathe is designed to accommodate larger diameter workpieces with its large 6.02" spindle bore.
FEATURES:
6.02" A2-11 spindle bore (9.06" A2-15 bore optional)
Hardened and precision-ground alloy steel gears and shafts
The precision-ground spindle is supported at three points by high-precision bearings
One-piece structure bed enhances the machine's life and working performance
Heavily ribbed wide bed with induction hardened and precision ground bed ways
Universal gearbox for inch, metric, D.P., and module threading without changing gears
Automatic or manual dual lubrication system for slideways
The electromagnetic brake system offers faster and more precise stopping
Adjustable overload safety device
Dial rotary system for quick and easy speed changes
The tailstock is equipped with a 2-speed quill feed for convenience in drilling
4-way power rapid traverse
Automatic stopper for longitudinal feeds

STANDARD ACCESSORIES:
Center sleeve
Coolant system
Dead center M.T. #6
Tailstock with a two-speed quill feed
Removable gap
Leveling screws and pads
Manual and parts list
Tool box with tools
MACHINE INCLUDES:
Steady rest with rollers
4-way power rapid traverse
Electromagnetic brake
Automatic lube system
4-way tool post
Halogen work light
Chuck cover with limit switch
On-carriage splash guard

Type: Big Bore Heavy-Duty Lathe
Swing over bed: 36"
Swing over cross slide: 27.5"
Swing over gap: 48"
Bed width: 20"
Distance between centers: 70" 90" 130" 170" 210" 250"
Spindle bore diameter: 6.02" (9.06" Opt.)
Taper of center in sleeve: M.T. 6
Spindle nose: A2-11 (Opt. 9.06" bore is A2-15)
Number of spindle speeds: 12 steps
Range of spindle speeds (rpm): 15 ~ 1,000 rpm
Range of longitudinal feeds: 0.0020" ~ 0.0276"/rev.
Range of cross feeds: 0.0010" ~ 0.0138"/rev.
Inch threads: 2 ~ 28 TPI x 36 kinds
Metric threads: 0.8 ~ 14 mm x 38 kinds
Cross slide travel: 18.5"
Compound slide travel: 9"
Tailstock taper center: M.T. 6
Tailstock quill travel: 10"
Main motor: 25 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 149"x70"x82" 158"x70"x82" 208"x70"x82" 247"x70"x82" 286"x70"x82" 326"x70"x82"
Gross weight: 12,350 lb. 13,250 lb. 15,000 lb. 16,800 lb. 18,550 lb. 20,300 lb.
