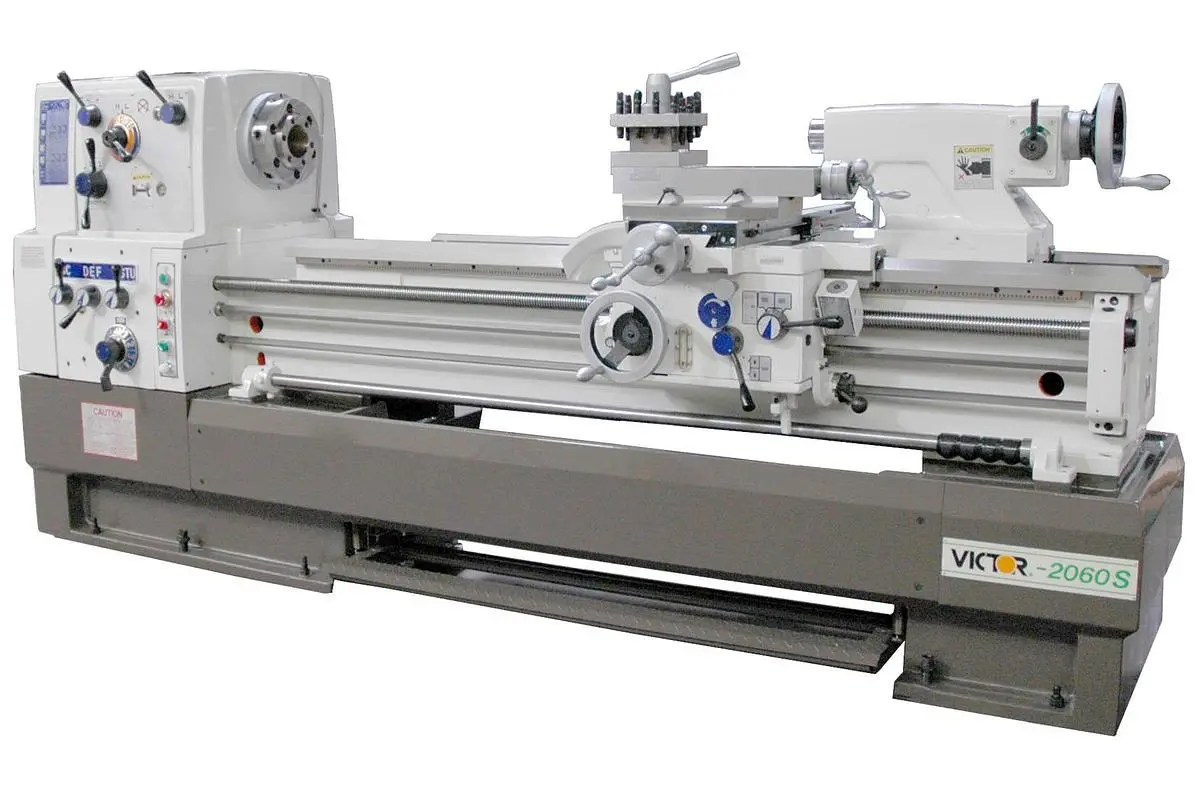

NEW VICTOR MACHINES 2040S 2060S 2080S 20120S 20160S

NEW VICTOR MACHINES 2040S 2060S 2080S 20120S 20160S

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engine Lathes
Manufacturer:
VICTOR
Model:
2040S 2060S 2080S 20120S 20160S
Stock #:
8171405
Description

Extra large rigid compound rest and Meehanite casting bed provide excellent stability and consistency during machining. Large 3-1/8" spindle bore and 10 HP main motor are sufficient for high demanding jobs.
FEATURES:
Oversized rigid compound rest for heavy cutting
Hardened and precision ground gears and bedways
Hardened and ground spindle nose
Full Meehanite casting bed
Headstock transmission gears driven by spline shafts
The spindle is supported at 3 points by precision bearings
Safety overload device
Inch/metric threading without changing gears
10 HP main motor delivers full power at all 12 speeds
Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation
2-way longitudinal (z-axis) power rapid traverse on 20120S and 20160S

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (20120S and 20160S only)
Leveling screws and pads
Manual and parts list
OPTIONAL SPECIAL PACKAGE INCLUDES:
10" 3-jaw chuck
16" 4-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard for 2040S, 2060S and 2080S only
On-carriage splash guard for 20120S and 20160S only

Specifications

Type: Precision Heavy-Duty Lathe
Swing over bed: 20"
Swing over cross slide: 13"
Swing over gap: 26-3/8"
Bed width: 15-3/4"
Distance between centers: 40" 60" 80" 120" 160"
Spindle bore diameter: 3.13"
Spindle bore taper: M.T. 7
Taper of center in sleeve: M.T. 5
Spindle nose: D1-8
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 20 ~ 1,550 rpm
Speed selections: 20, 30, 45, 60, 100, 150, 210, 350, 490, 680, 1100, 1550
Range of longitudinal feeds: 0.0014" ~ 0.0387"/rev.
Range of cross feeds: 0.0007" ~ 0.01935"/rev.
Inch threads: 2 ~ 112 TPI x 60 kinds
Metric threads: 0.2 ~ 14 mm x 60 kinds
Cross slide travel: 12-1/2"
Compound slide travel: 10"
Tailstock taper center: M.T. 5
Tailstock quill travel: 6-5/16"
Main motor: 10 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 89"x44"x65" 110"x44"x65" 140"x44"x65" 185"x44"x65" 230"x44"x65"
Gross weight: 4,660 lb. 5,320 lb. 5,870 lb. 7,230 lb. 8,330 lb.
