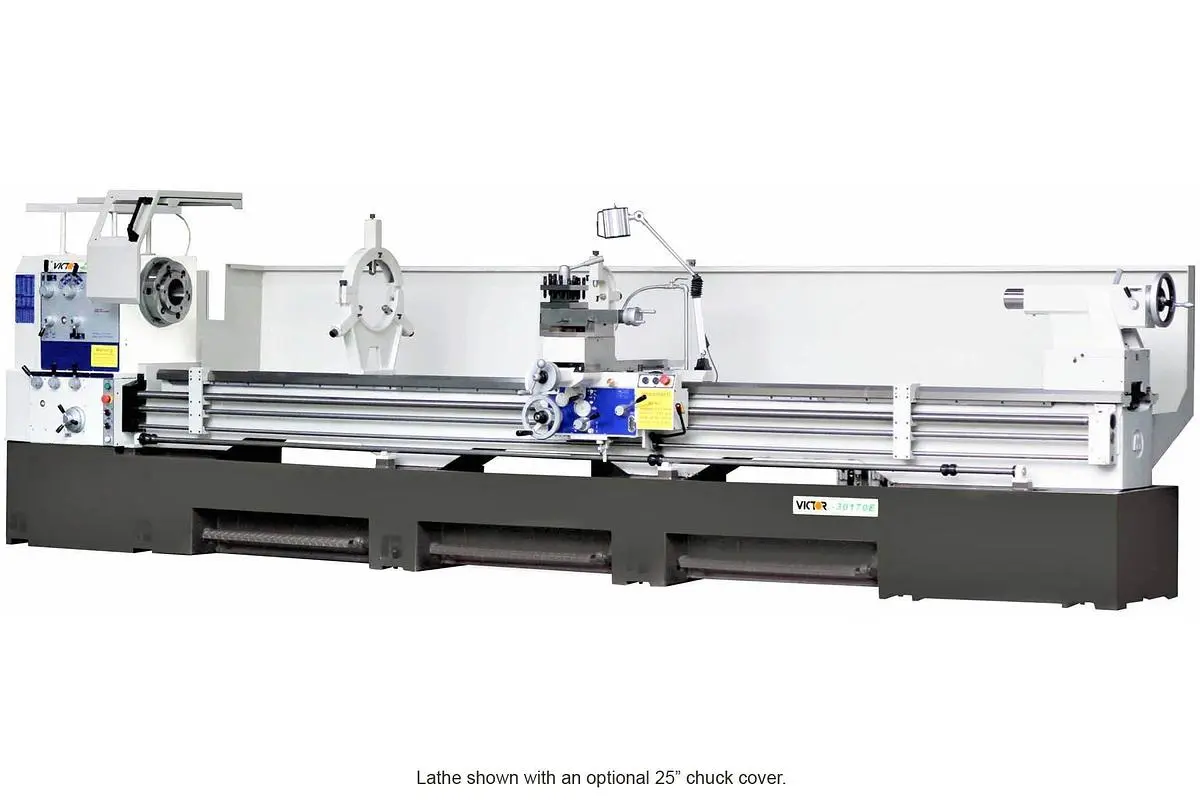

Equipped with a large 4.6" spindle bore, 4-way power rapid traverse, and 15 HP 6 pole motor to handle the utmost demanding work conditions.
FEATURES:
4.6" spindle bore with D1-11 camlock spindle nose
Headstock gears are hardened and ground alloy steel for long lasting accuracy
One-piece solid base for high rigidity and low vibration
Thermal treated Meehanite casting bed
Spindle is supported at 3 points with high-precision bearings
Overload device to ensure safety when operating
Dual-speed tailstock quill provides faster setups
Universal gearbox design for both inch and metric threading
4-way power rapid traverse
15 HP 6 pole motor features more torque at a lower RPM
STANDARD ACCESSORIES:
4-way power rapid traverse
Center sleeve
Auto-feed stopper rings
Coolant system
Thread dial indicator
Safety pin
Dead centers M.T. #5
Tool box
Leveling pads
MACHINE INCLUDES:
Steady rest with rollers
Follow rest
4-way tool post
Full length splash guard
Micro carriage stop
Halogen work light
Chuck cover (16") with limit switch
STANDARD ACCESSORIES:
4-way power rapid traverse
Center sleeve
Auto-feed stopper rings
Coolant system
Thread dial indicator
Safety pin
Dead centers M.T. #5
Tool box
Leveling pads
MACHINE INCLUDES:
Steady rest with rollers
Follow rest
4-way tool post
Full length splash guard
Micro carriage stop
Halogen work light
Chuck cover (16") with limit switch
STANDARD ACCESSORIES:
4-way power rapid traverse
Center sleeve
Auto-feed stopper rings
Coolant system
Thread dial indicator
Safety pin
Dead centers M.T. #5
Tool box
Leveling pads
MACHINE INCLUDES:
Steady rest with rollers
Follow rest
4-way tool post
Full length splash guard
Micro carriage stop
Halogen work light
Chuck cover (16") with limit switch
STANDARD ACCESSORIES:
4-way power rapid traverse
Center sleeve
Auto-feed stopper rings
Coolant system
Thread dial indicator
Safety pin
Dead centers M.T. #5
Tool box
Leveling pads
MACHINE INCLUDES:
Steady rest with rollers
Follow rest
4-way tool post
Full length splash guard
Micro carriage stop
Halogen work light
Chuck cover (16") with limit switch
STANDARD ACCESSORIES:
4-way power rapid traverse
Center sleeve
Auto-feed stopper rings
Coolant system
Thread dial indicator
Safety pin
Dead centers M.T. #5
Tool box
Leveling pads
MACHINE INCLUDES:
Steady rest with rollers
Follow rest
4-way tool post
Full length splash guard
Micro carriage stop
Halogen work light
Chuck cover (16") with limit switch
Type: Precision Heavy-Duty Lathe
Swing over bed: 30"
Swing over cross slide: 21-1/4"
Swing over gap: 39"
Bed width: 15-3/4"
Distance between centers: 59" 79" 98" 126" 166"
Spindle bore diameter: 4.6"
Spindle bore taper: M.T. 7
Taper of center in sleeve: M.T. 5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 10 ~ 1,000 rpm
Speed selections: 10, 18, 25, 35, 60, 85, 120, 200, 280, 400, 660, 1000
Range of longitudinal feeds: 0.0022" ~ 0.03"/rev.
Range of cross feeds: 0.0013" ~ 0.0175"/rev.
Inch threads: 2 ~ 56 TPI x 44 kinds
Metric threads: 0.5 ~ 14 mm x 24 kinds
Cross slide travel: 17-3/4"
Compound slide travel: 7-7/8"
Tailstock taper center: M.T. 5
Tailstock quill travel: 6-1/2"
Main motor: 15 HP (6 pole) 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 120"x46"x76" 145"x46"x76" 170"x46"x76" 195"x46"x76" 235"x46"x76"
Gross weight: 6,200 lb. 7,080 lb. 7,630 lb. 8,730 lb. 11,510 lb.
