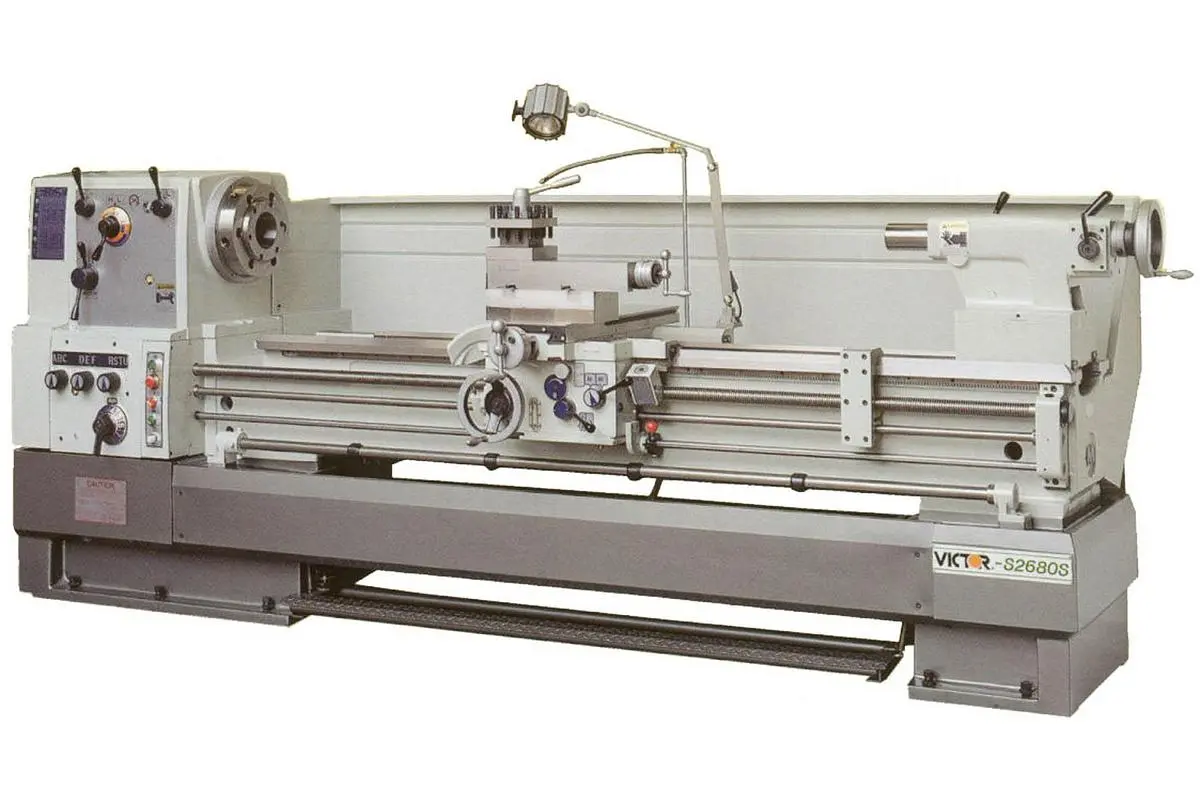

NEW VICTOR MACHINES S2640S S2660S S2680S S26100S S26120S S26160S

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
NEW VICTOR MACHINES S2640S S2660S S2680S S26100S S26120S S26160S

NEW VICTOR MACHINES S2640S S2660S S2680S S26100S S26120S S26160S

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Engine Lathes
Manufacturer:
VICTOR
Model:
S2640S S2660S S2680S S26100S S26120S S26160S
Stock #:
8171402
Description

Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently. The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.

FEATURES:
Hardened and precision ground chromium molybdenum steel gears in headstock
Hardened and ground bed ways
Meehanite casting bed
Large 4-1/8" spindle bore with D1-11 spindle nose
The spindle speed ranges from 15 ~ 1,200 rpm
Carriage with a mechanical overload device
Turcite B coated slideways between saddle and bed
Cross slide is induction hardened to HRC 52º and precision ground
2-speed tailstock quill speed
Universal inch/metric gearbox
Dual speed tailstock quill (ratio 1:1 and 5:1) provides easy drilling operation
2-way longitudinal (z-axis) power rapid traverse on S26100S, S26120S and S26160S
15 HP main motor

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (S26100S, S26120S and S26160S only)
Leveling screws and pads
Manual and parts list
MACHINE INCLUDES:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2660S and S2680S only
On-carriage splash guard for S26100S, S26120S and S26160S only

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (S26100S, S26120S and S26160S only)
Leveling screws and pads
Manual and parts list
MACHINE INCLUDES:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2660S and S2680S only
On-carriage splash guard for S26100S, S26120S and S26160S only

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (S26100S, S26120S and S26160S only)
Leveling screws and pads
Manual and parts list
MACHINE INCLUDES:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2660S and S2680S only
On-carriage splash guard for S26100S, S26120S and S26160S only

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (S26100S, S26120S and S26160S only)
Leveling screws and pads
Manual and parts list
MACHINE INCLUDES:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2660S and S2680S only
On-carriage splash guard for S26100S, S26120S and S26160S only

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (S26100S, S26120S and S26160S only)
Leveling screws and pads
Manual and parts list
MACHINE INCLUDES:
Steady rest with rollers
4-way tool post
Face plate
Halogen work light
Chuck cover with limit switch
Full length splash guard for S2660S and S2680S only
On-carriage splash guard for S26100S, S26120S and S26160S only

Specifications

Type: Precision Heavy-Duty Lathe
Swing over bed: 26"
Swing over cross slide: 18-1/16"
Swing over gap: 33-1/4"
Bed width: 15-3/4"
Distance between centers: 40" 60" 80" 100" 120" 160"
Spindle bore diameter: 4.13"
Spindle bore taper: M.T. 8
Taper of center in sleeve: M.T. 5
Spindle nose: D1-11
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 15 ~ 1,200 rpm
Speed selections: 15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200
Range of longitudinal feeds: 0.0014" ~ 0.0387" /rev.
Range of cross feeds: 0.0007" ~ 0.01935"/rev.
Inch threads: 2 ~ 112 TPI x 60 kinds
Metric threads: 0.2 ~ 14 mm x 60 kinds
Cross slide travel: 15"
Compound slide travel: 10"
Tailstock taper center: M.T. 5
Tailstock quill travel: 6-5/16"
Main motor: 15 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 101"x45"x67" 121"x45"x67" 140"x45"x67" 161"x45"x67" 185"x45"x67" 223"x45"x67"
Gross weight: 5,082 lb. 5,676 lb. 6,270 lb. 6,864 lb. 7,458 lb. 8,646 lb.
