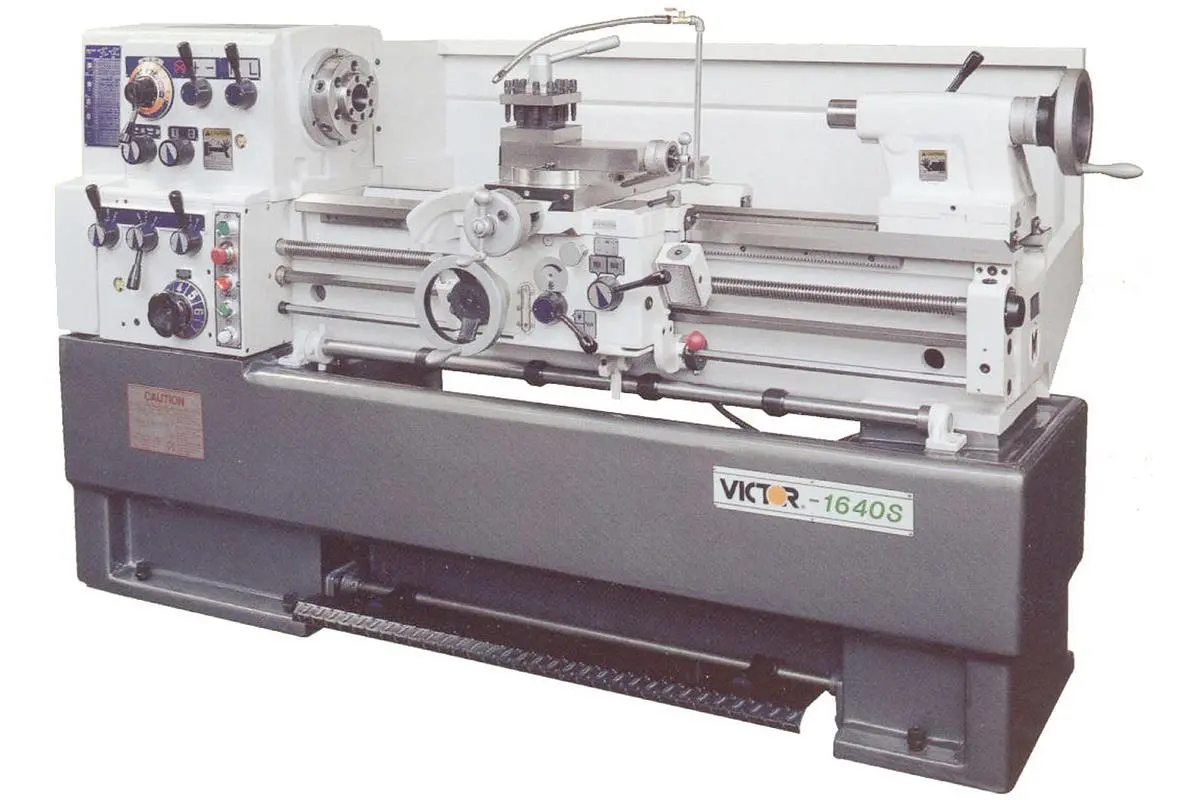

NEW VICTOR MACHINES 1640S 1660S

High-performance precision high-speed heavy-duty lathe with rigid one-piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high-quality construction results in stability and consistency.
One-piece heavy-duty cast iron base with a special exit for chips removal
Oversized rigid compound rest for heavy cutting
Hardened and precision ground gears and bedways
Hardened and ground spindle nose
Full Meehanite casting bed
Headstock transmission gears driven by spline shafts
The spindle is supported at 3 points by precision bearings
Safety overload device
Inch/metric threading without changing gears
7.5 HP main motor delivers full power at all 12 speeds

STANDARD ACCESSORIES:
Removable gap
Tailstock
Coolant system
Chuck cover with limit switch
Full length foot brake
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #4
Leveling screws and pads
Manual and parts list
OPTIONAL SPECIAL PACKAGE INCLUDES:
8" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Face plate
Full length splash guard
Halogen work light
Chuck cover with limit switch

Type: Precision High-Speed Heavy-Duty Lathe
Swing over bed: 16"
Swing over cross slide: 9.44"
Swing over gap: 23-7/16"
Bed width: 11-13/16"
Distance between centers: 40" 60"
Spindle bore diameter: 2.03"
Spindle bore taper: M.T. 6
Taper of center in sleeve: M.T. 4
Spindle nose: D1-6
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 30 ~ 2,000 rpm
Speed selections: 30, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000
Range of longitudinal feeds: 0.0012" ~ 0.0352"/rev.
Range of cross feeds: 0.0006" ~ 0.0176"/rev.
Inch threads: 2 ~ 56 TPI x 40 kinds
Metric threads: 0.4 ~ 14 mm x 52 kinds
Cross slide travel: 9"
Compound slide travel: 4-3/4"
Tailstock taper center: M.T. 4
Tailstock quill travel: 4-3/4"
Main motor: 7.5 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 89"x38"x65" 110"x38"x65"
Gross weight: 4,290 lb. 4,950 lb.
