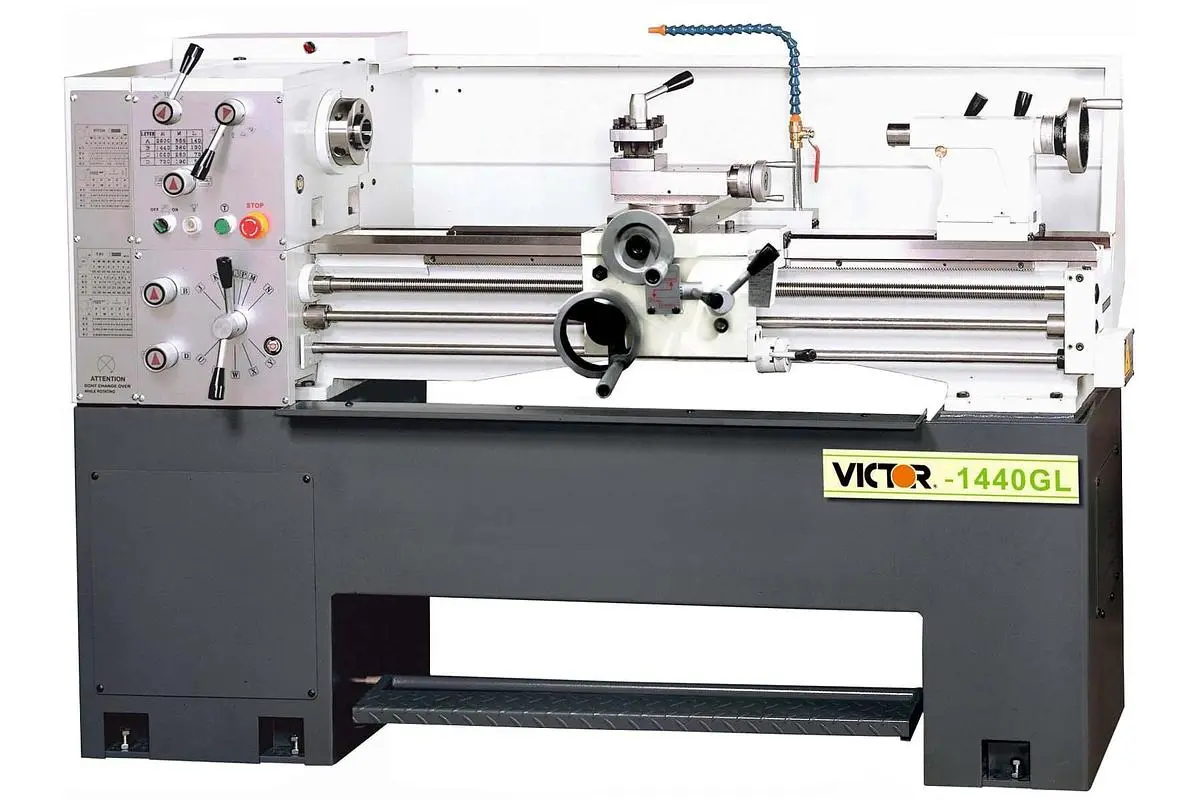

High-speed precision gear-head lathe that provides outstanding machining performance.
FEATURES:
Headstock gears are made of chrome-moly steel
Hardened and precision ground spindle and headstock gears
A forced lubrication system lubricates all headstock gears and bearings
The bed is made of high tensile cast iron FC30
Hardened and ground bed ways
The leadscrew is equipped with a torque limit safety device
The feed rod has a built-in overload safety clutch
An interlocking device in the apron to prevent simultaneous engagement of auto feeding and threading operations
Jog button for easy spindle speed changes
Full length foot brake
5 HP powerful main motor
STANDARD ACCESSORIES:
Removable gap
Tailstock
Chuck cover with limit switch
Coolant system
Full length foot brake
Dead center M.T. #3
Center sleeve
Change gears
Threading dial indicator
Leveling screws and pads
Manual and parts list
MACHINE INCLUDES:
6" 3-jaw chuck
Steady rest with brass tips
Follow rest
4-way tool post
Full length splash guard
Halogen work light
Chuck cover with limit switch
Type: Precision High-Speed Lathe
Swing over bed: 14"
Swing over cross slide: 8.75"
Swing over gap: 20.50"
Bed width: 9"
Distance between centers: 40"
Spindle bore diameter: 1.56"
Spindle bore taper: M.T. 5
Taper of center in sleeve: M.T. 3
Spindle nose: D1-4
Number of spindle speeds: 12 Steps
Range of spindle speeds (rpm): 50 ~ 2,000 rpm
Speed selections: 50, 70, 100, 140, 190, 260, 380, 555, 720, 1000, 1440, 2000
Range of longitudinal feeds: 0.0026" ~ 0.0368"/rev.
Range of cross feeds: 0.0009" ~ 0.0123"/rev.
Inch threads: 4 ~ 56 TPI x 32 kinds
Metric threads: 0.4 ~ 7 mm x 32 kinds
Cross slide travel: 7"
Compound slide travel: 3.75"
Tailstock taper center: M.T. 3
Tailstock quill travel: 4"
Main motor: 5 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 76" x 32" x 63"
Gross weight: 1,810 lb.
