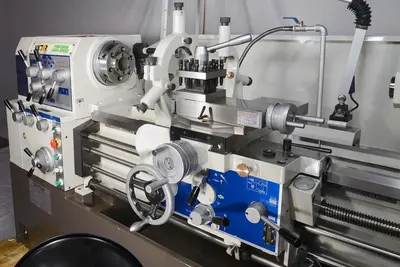

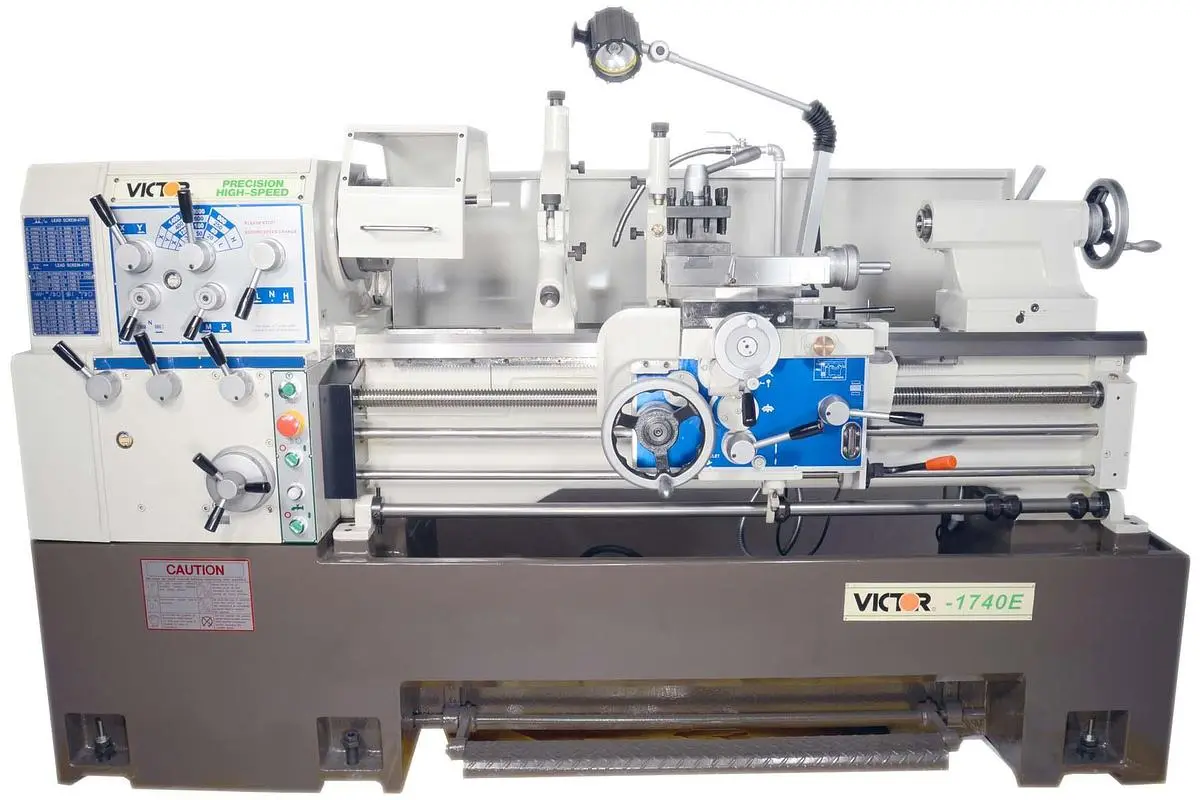

Precision-built lathe combines accuracy, rigidity, and large 3-1/8" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.
FEATURES:
Large 3-1/8" thru spindle hole
One-piece high rigidity and low vibration base
Thermal treated Meehanite cast bed
Hardened and precision ground bedways
Thermal treated and precision ground alloy gears
Universal gearbox for both inch and metric threading
Double reservoir oil bath type cross slide
Safety overload device
Wear-resistant phosphor bronze leadscrew nuts
High capacity coolant tank provides sufficient coolant output
10 HP powerful main motor delivers full power at all 12 speeds
STANDARD ACCESSORIES:
Removable gap
Tailstock
Coolant system
Chuck cover with limit switch
Full length foot brake
Threading dial indicator
Auto-feed stopper ring
Center sleeve
Dead center M.T. #4
Leveling screws and pads
Manual and parts list
10" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard
Chuck cover w/ limit switch
STANDARD ACCESSORIES:
Removable gap
Tailstock
Coolant system
Chuck cover with limit switch
Full length foot brake
Threading dial indicator
Auto-feed stopper ring
Center sleeve
Dead center M.T. #4
Leveling screws and pads
Manual and parts list
10" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard
Chuck cover w/ limit switch
STANDARD ACCESSORIES:
Removable gap
Tailstock
Coolant system
Chuck cover with limit switch
Full length foot brake
Threading dial indicator
Auto-feed stopper ring
Center sleeve
Dead center M.T. #4
Leveling screws and pads
Manual and parts list
10" 3-jaw chuck
Steady rest with rollers
Follow rest
4-way tool post
Halogen work light
Full length splash guard
Chuck cover w/ limit switch
Type: Precision High-Speed Heavy-Duty Lathe
Swing over bed: 17"
Swing over cross slide: 9.45"
Swing over gap: 25.59"
Bed width: 11.81"
Distance between centers: 39.37" 59" 86.60"
Spindle bore diameter: 3.13"
Spindle bore taper: M.T. 7
Taper of center in sleeve: M.T. 4
Spindle nose: D1-8
Number of spindle speeds: 12 steps
Range of spindle speeds (rpm): 40 ~ 2,000 rpm
Speed selections: 40, 60, 90, 120, 185, 270, 280, 440, 635, 855, 1350, 2000
Range of longitudinal feeds: 0.002" ~ 0.03"/rev.
Range of cross feeds: 0.0008" ~ 0.011"/rev.
Inch threads: 4 ~ 56 TPI x 36 kinds
Metric threads: 0.5 ~ 7 mm x 17 kinds
Cross slide travel: 9.65"
Compound slide travel: 4.92"
Tailstock taper center: M.T. 4
Tailstock quill travel: 5.91"
Main motor: 10 HP 3 Phase
Coolant pump: 1/8 HP
Shipping dimensions (LxWxH): 90"x38"x64" 110"x38"x64" 143"x38"x64"
Gross weight: 4,100 lb. 4,850 lb. 5,450 lb.
