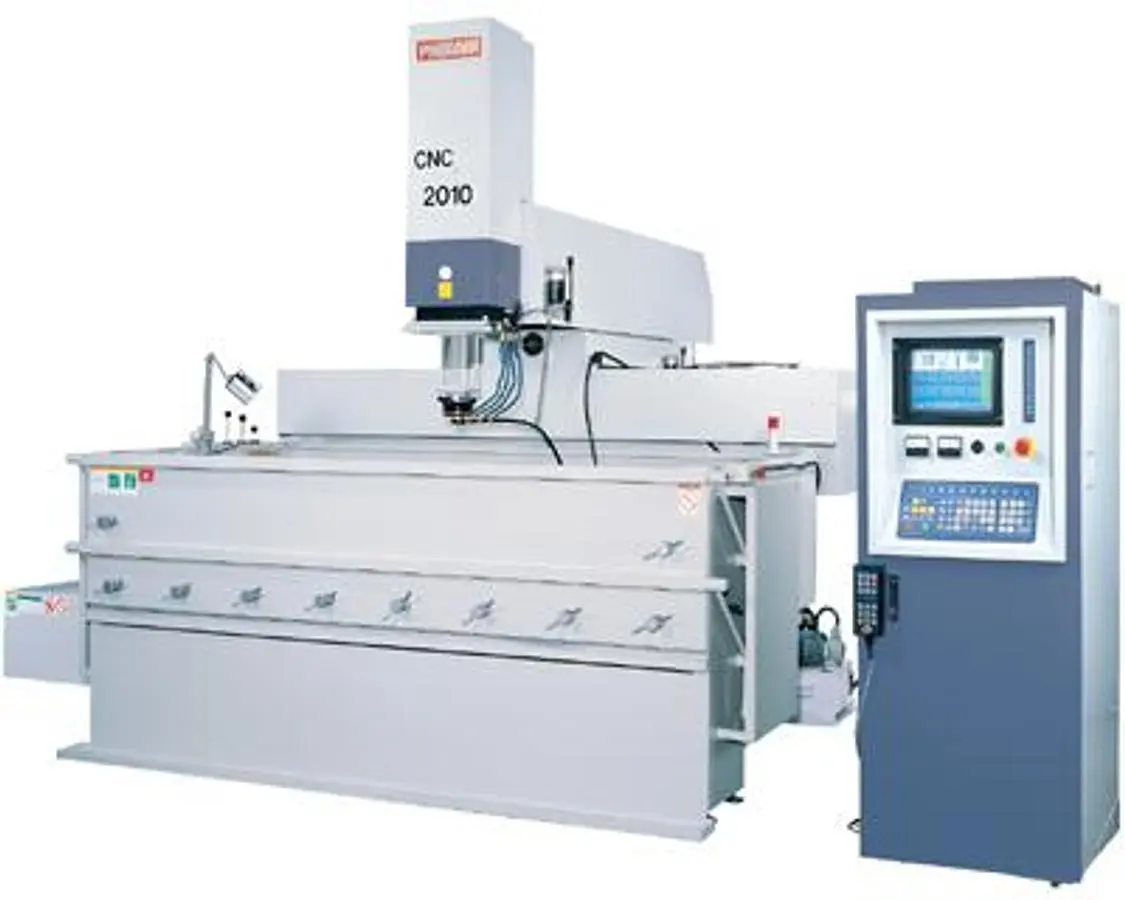

NEW TOP PHOENIX CNC-2010

Work tank (W x D x H) inner size: mm/inch 2,900x1,500x700(114.2x59.1x27.6)
Work table size (X x Y): mm/inch 2,240x1,050(88.2x41.3)
Work table travel (X x Y): mm/inch 2,000x1,000(78.7x39.4)
Ram servo travel (Z-axis): mm/inch 550(21.7)
Minimum/ Max. distance between the table surface and electrode plate.: mm/inch 600-1,150(23.6-45.3)
Max. electrode weight: kgs/lbs 500(1,100)
Max. workpiece weight: kgs/lbs 9,000(19,800)
External dimension (W x D x H): mm/inch 1,500x3,000x470(59x118.1x18.5)
Packing dimension (W x D x H): mm/inch DEPEND ON REQUIRED
Net weight: kgs (lbs) 200 (440)
Capacity: LITERS 4,200
Filter paper/pump: PCS 6/2PC
Control axes: X,Y,Z
Moving locus: CIRCLE, SQUARE, SECTOR, INNER, OUTER, SPHERE. TAPER, RADIATION, 45 HOLE ENLARGE, ETC.
Least input increment: mm inch 0.001 (0.00004)
Max. input increment: mm inch ±9999.999 (± 393.7)
Coordinates system: Relative
Display system: 15" LCD-TFT
Nominal current: A 30 60 120
Total power input: KVA 3.5 6 10
Max. material removal rate: mm3/min 360 550 700
Electrode wear rate: % < 0.3
Best surface roughness: Min.Ra 0.3 µ m
External dimension (W x H x D): mm inch 800x730x1,800 (31.5x28.8x70.9)
Packing dimension (W x H x D): mm inch 950x880x2,000 (37.5x34.7x78.7)
NO: DESCRIPTION SPECIFICATION
1: Display 15" LCD-TFT
2: Control method CNC Close Loop
3: Control axes X,Y,Z(Optional C-Axis)
4: Minimum setting unit 0.001mm/0.00004inch
5: Arithmetic limits ±9999.999mm
6: Positioning command format Incremental. Absolute
7: Manual feed rate(by remote controller) 4 Speed
8: Inching(x1) 0.001mm/0.00004inch per push
9: Positioning parameters sets E-Code
10: Machining parameters sections S-Code
11: Enlarged machining functions Circle, Square, Sector, Inner, Outer, Sphere. Taper, Radiation, 45" Hole enlarge, etc.
12: Orbital movement control X,Y,Z(Free). X,Y(Fixed)
13: Machining position (Max) 200 Position
14: Screen pages 20 Pages
15: Program date capacity 100 Files At Least
16: Linear scales resolution 0.001mm/0.00004inch
