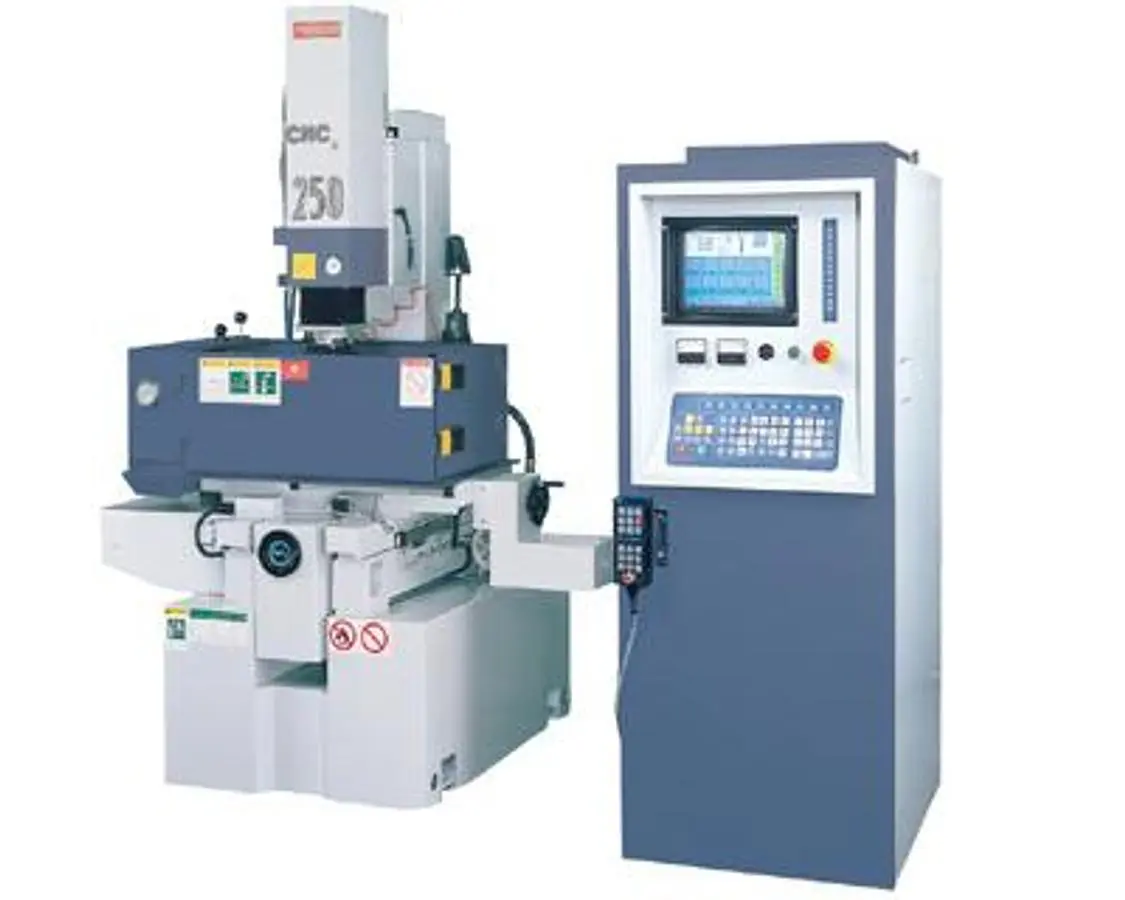

NEW TOP PHOENIX CNC-250

Work tank (W x D x H) inner size: mm/inch 750x500x340(29.5x19.7x13.4)
Work table size (X x Y): mm/inch 600x300(23.6x11.8)
Work table travel (X x Y): mm/inch 300x200(11.8x7.9)
Work head travel (W-axis): mm/inch 200(7.9)
Ram servo travel (Z-axis): mm/inch 180(7.1)
Minimum/ Max. distance between the table surface and electrode plate.: mm/inch 0-380(0-14.9)
Max. electrode weight: kgs/lbs 50(110)
Max. workpiece weight: kgs/lbs 300(660)
External dimension (W x D x H): mm/inch BUILTIN
Packing dimension (W x D x H): mm/inch BUILTIN
Net weight: kgs (lbs) 200(440)
Capacity: LITERS 300
Filter paper/pump: PCS 2/1PC
Control axes: X,Y,Z
Moving locus: CIRCLE, SQUARE, SECTOR, INNER, OUTER, SPHERE. TAPER, RADIATION, 45 HOLE ENLARGE, ETC.
Least input increment: mm inch 0.001 (0.00004)
Max. input increment: mm inch ±9999.999 (± 393.7)
Coordinates system: Relative
Display system: 15" LCD-TFT
Nominal current: A 30 60 120
Total power input: KVA 3.5 6 10
Max. material removal rate: mm3/min 360 550 700
Electrode wear rate: % < 0.3
Best surface roughness: Min.Ra 0.3 µ m
External dimension (W x H x D): mm inch 800x730x1,800(31.5x28.8x70.9)
Packing dimension (W x H x D): mm inch 950x880x2,000(37.5x34.7x78.7)
NO: DESCRIPTION SPECIFICATION
1: Display 15" LCD-TFT
2: Control method CNC Close Loop
3: Control axes X,Y,Z(Optional C-Axis)
4: Minimum setting unit 0.001mm/0.00004inch
5: Arithmetic limits ±9999.999mm
6: Positioning command format Incremental. Absolute
7: Manual feed rate(by remote controller) 4 Speed
8: Inching(x1) 0.001mm/0.00004inch per push
9: Positioning parameters sets E-Code
10: Machining parameters sections S-Code
11: Enlarged machining functions Circle, Square, Sector, Inner, Outer, Sphere. Taper, Radiation, 45" Hole enlarge, etc.
12: Orbital movement control X,Y,Z(Free). X,Y(Fixed)
13: Machining position (Max) 200 Position
14: Screen pages 20 Pages
15: Program date capacity 100 Files At Least
16: Linear scales resolution 0.001mm/0.00004inch
