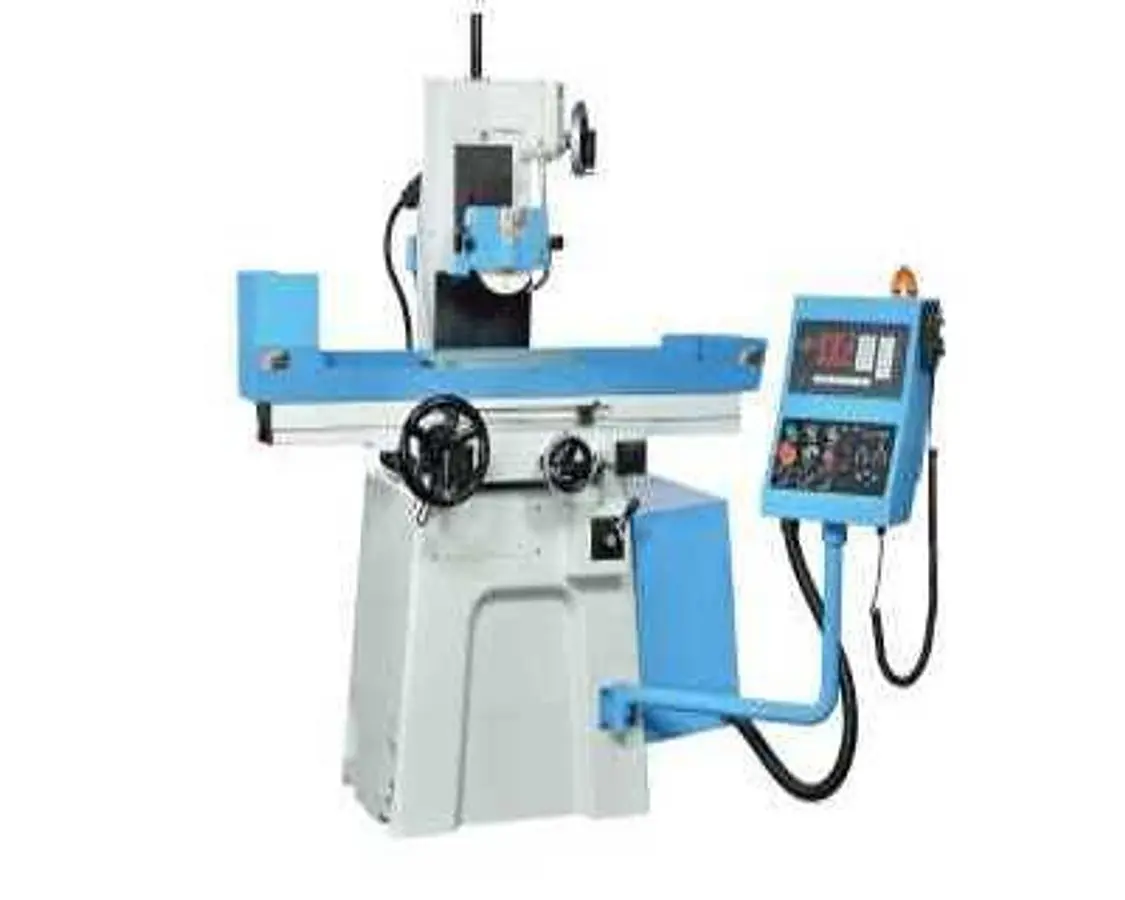

NEW TOP PHOENIX UNIT PSG-1A820 PSG-2A820 PSG-3A820 PSG-820AD

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Table Working Surface: mm 200x500
Max. Table Travel: mm 230x530
Max. Grinding Surface: mm 200x500
Max. Distance Center of Spindle to Table: mm 420 / 450(Opt.)
Table Guideway: V & Flat Way
Table Speed: M/min 3~25
Rapid Power (Approx.): mm/min 1,100(60HZ)/ 900(50HZ)
Hand Wheel(1 rev): mm 1
Hand Wheel(1 gra): mm 0.005
Microfeed(1 gra) / Opt.: mm 0.002
Increment (Approx.): mm 0.15 ~ 7.5
Rapid Power Elevation(Approx.)(3A/Ad): mm/min 220 (60HZ)
MPG Micro Feed / Opt.: mm (x1)0.001 (x10)0.01 (x100)0.1
Feed Rate (Coarse / Fine): mm 0.001~0.099
Total Stock Removal: mm 0.001~999.999
Fine Feed Stock Removal: mm 0.001
Spark Out: passes 0~9
Wheel Dimensions (DiaxWidthxBore): mm 180x13x31.75
Wheel Speed: rpm 3,000/3,600
Spindle Motor: HP 2
Cross Feed: W 40
Hydraulic: hpxp 1x6
Vertical Feed (Only for 3A/AD Series): 25W (3A) / 21.6 kg-cm (AD)
Coolant Pump: HP 1/8
Packing Size (LxWxH): cm 172x125x210 190x150x210 (AD)
