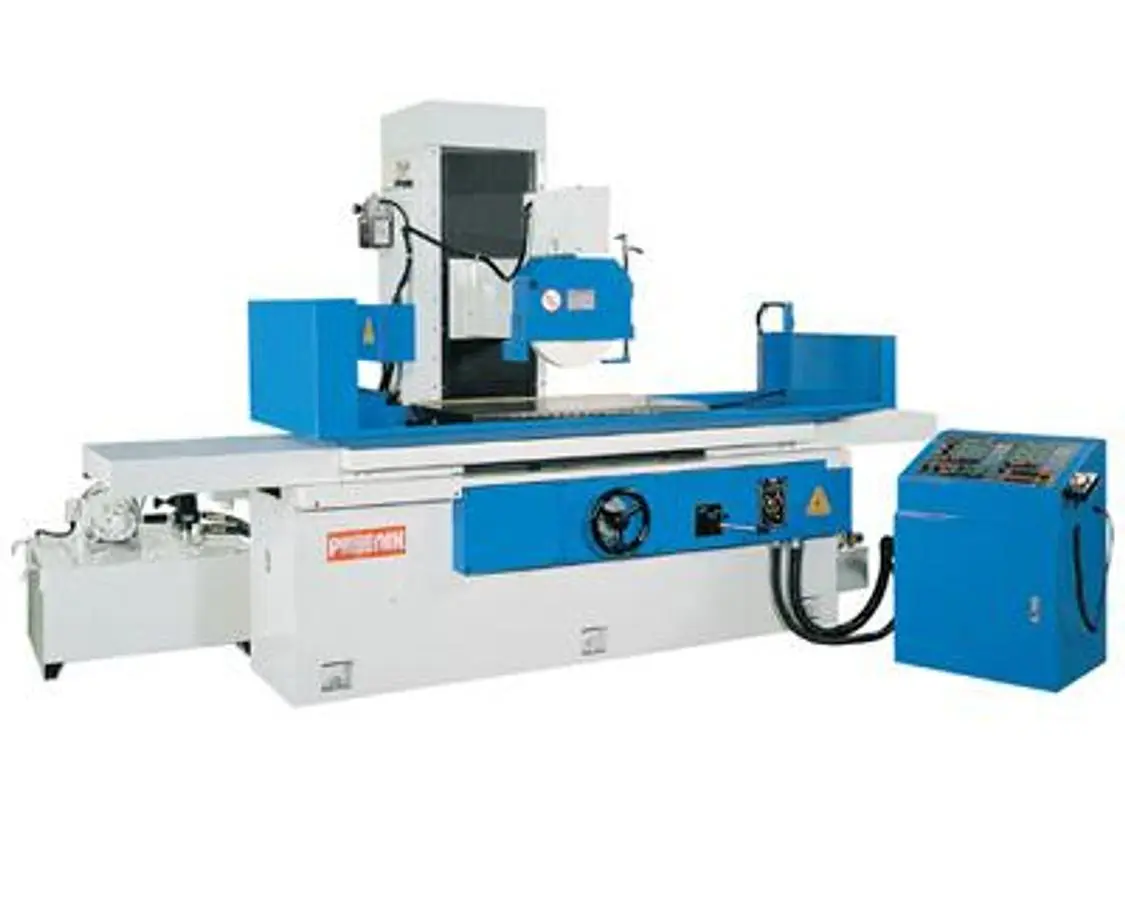

NEW TOP PHOENIX UNIT FSG-50100AHR FSG-60100AHR FSG-70100AHR

NEW TOP PHOENIX UNIT FSG-50100AHR FSG-60100AHR FSG-70100AHR

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Grinders (misc)
Manufacturer:
TOP PHOENIX
Model:
UNIT FSG-50100AHR FSG-60100AHR FSG-70100AHR
Stock #:
8155827
Description

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Specifications

Table size: mm (inch) 500x1020(20"x40") 600x1020(24"x40") 700x1020(28"x40")
Max. grinding surface: mm (inch) 500x1020(20"x40") 600x1020(24"x40") 700x1020(28"x40")
Max. distance center of spindle to table: mm (inch) 600 mm (24") [800 mm (32") / 1000 mm (40"), Opt.]
Table speed: m/min ("/min) 5~25 M/min (200"~1000"/min)
Table guideway: V & Flat way
Auto. cross feed increment: approx. mm (inch) 0.5 mm~ 20 mm (0.02"~0.8")
Rapid power cross feed approx.: mm/min ("/min) 1100 mm/min (44"/min) (60Hz) 900 mm/min (36"/min) (50Hz)
Cross feed on hand wheel: 1 rev 1 gra 5 mm (0.2") 0.02 mm (0.001")
Rapid power head elevation approx.(Option): 60Hz 50Hz 300 mm/min (10"/min)
Vertical feed with M. P. G.: 1 rev 1 gra (x1) 0.1mm (0.01") (x5) 0.5mm (0.05") (x10) 1mm (0.1") (x1) 0.001mm (0.0001") (x5) 0.005mm (0.0005") (x10) 0.01mm (0.001")
Auto. down feed: (Option) 0.001 mm~0.999 mm/Time (0.00001"~0.00999"/Time, Opt.)
Wheel speed: 60Hz/50Hz 1750 R.P.M. (60Hz) / 1450 R.P.M. (50Hz)
Wheel dimension: mm (inch) 406x50x127 mm (16" x 2" x 5")
Spindle motor: HP 10 HP (15 HP, Opt.)
Hydraulic pump motor: HP 3HP
Auto. cross feed motor: HP 1/5HP
Rapid head elevation motor: HP 1KW AC servo motor
Machine net weight: kgs (Lbs) 6000 (13200 Lbs) 6300 (13860 Lbs) 6600 (14520 Lbs)
Packing gross weight: kgs (Lbs) 6800 (15000 Lbs) 7100 (15620 Lbs) 7400 (16280 Lbs)
Machine floor space: mm (inch) 4600 x 2300 (180" x 91") 4600 x 2450 (180" x 96") 4600 x 2550 (180" x 100")
Packing dimensions (LxWxH): cm (inch) 376 x 228 x 228 (148" x 90" x 90")
