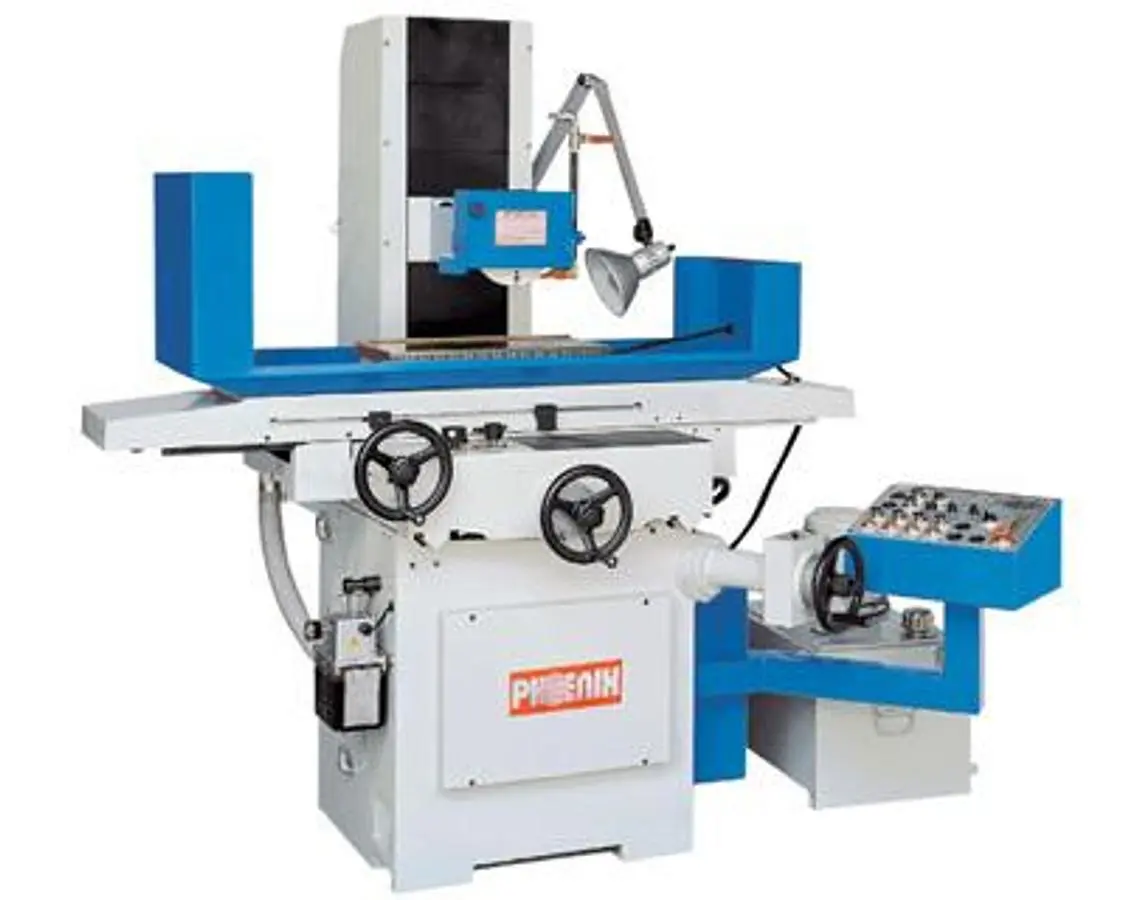

NEW TOP PHOENIX UNIT FSG-2550H FSG-2550AH

The manufacturer reserves the right to modify the design, specifications, mechanisms…etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Table size: mm (inch) 250x500 (10"x20")
Max. grinding surface: mm (inch) 250x500 (10"x20")
Max. distance center of spindle to table: mm (inch) 500 mm (20")
Table speed: m/min ("/min) 5~25 M/min
Table guideway: V & Flat way
Auto. cross feed increment: approx. mm (inch) Manual 0.1mm ~ 12mm
Rapid power cross feed approx.: mm/min ("/min) Manual 1100 mm/min (60Hz) / 900 mm/min (50Hz)
Cross feed on hand wheel: 1 rev 1 gra 5 mm (0.2") 0.02 mm (0.001")
Rapid power head elevation approx. (Option): 60Hz 50Hz 550 mm/min (13"/min) (60Hz) 450 mm/min (11"/min) (50Hz)
Vertical feed on hand wheel: 1 rev 1 gra 2 mm (0.05") 0.01 mm (0.0002") (Std.) / 0.005mm (0.0001") (w/AD5, Opt.)
Auto. down feed: (Option) 0.001 mm~0.999 mm/Time (0.0001"~0.0999"/Time, Opt.)
Wheel speed: 60Hz/50Hz 3500 R.P.M. (60Hz) / 2900 R.P.M. (50Hz)
Wheel dimension: mm (inch) 180x13x31.75 mm (max. 200x20x31.75mm) (7"x0.5"x1.25") (max. 8"x0.75"x1.25")
Spindle motor: HP 2HP
Hydraulic pump motor: HP 1HP
Auto. cross feed motor: W or HP 1/5HP
Rapid head elevation motor: HP 1/5HP (Opt.)
Machine net weight: kgs (Lbs) 1350 (2970 Lbs)
Packing gross weight: kgs (Lbs) 1550 (3410 Lbs)
Machine floor space: mm (inch) 2250x1400 (89"x55")
Packing dimensions (LxWxH): cm (inch) 212x146x200 (84"x58"x79")
