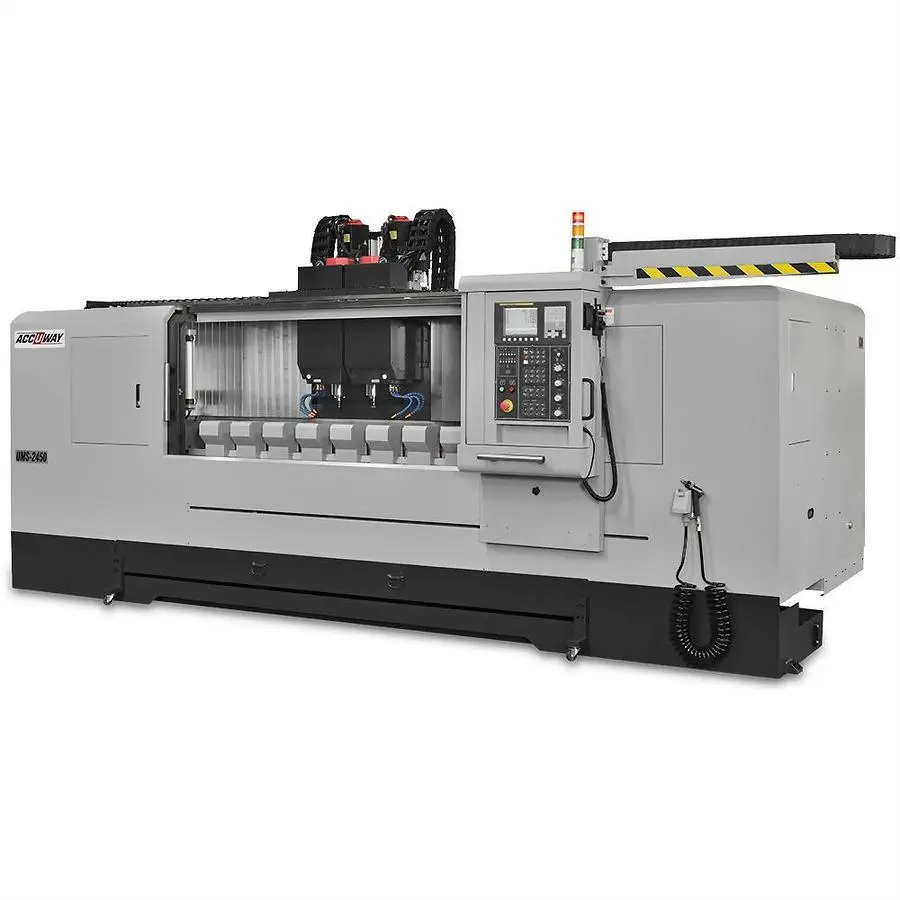

Two Spindle Vertical Machining Center
STANDARD ACCESSORIES

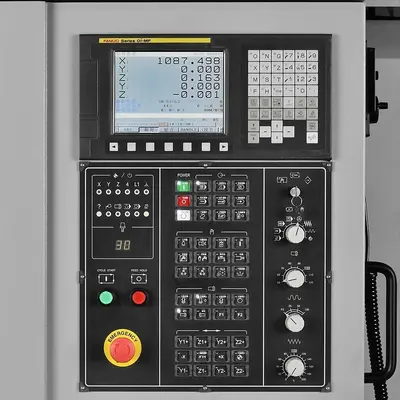

FANUC 0i-M controller
Heat exchanger for electric cabinet
8.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Cutter air blast
Spray gun
Three-color warning light
Chain type chip conveyor + chip cart
OPTIONAL ACCESSORIES
Data server 2G
Linear scale (Heidenhain)
Contact tool setter
Workpiece touch probe
Roller type guide way
Air cooler for electric cabinet
Upgraded to 10,000 rpm spindle (direct drive)
Upgraded to 12,000 rpm spindle & motor (direct drive)
Upgraded to 15,000 rpm spindle & motor (direct drive)
Upgrade to 15" Colored LCD monitor
20 bar coolant through spindle system
Oil-coolant skimmer
Oil mist collector
Auto door
Transformer
CE version
Controller: FANUC 0i-M
Spindle speed: rpm 5000
Spindle nose taper: BT30
Drive system: Direct
X1-axis travel: mm 2510
Y1/Y2-axis travel: mm 100/100
Z1/Z2-axis travel: mm 100/100
Table dimension: mm 2300 x 180
Cutting feed rate: m / min 12
Guideway bearing type: Linear Guideway
Tool magazine capacity: pcs 2
Max. tool length: mm 100
Spindle 1 motor power(Cont. / 30min): kW 3.7/5.5
Spindle 2 motor power(Cont. / 30min): kW 3.7/5.5
X1-axis feed motor: kW 4
Y1/Y2-axis feed motor: kW 3/3
Z1/Z2-axis feed motor: kW 3/3
Machine dimension L x W x H: m 5.6 x 2.5 x 2.1
Net weight: kg 8000
