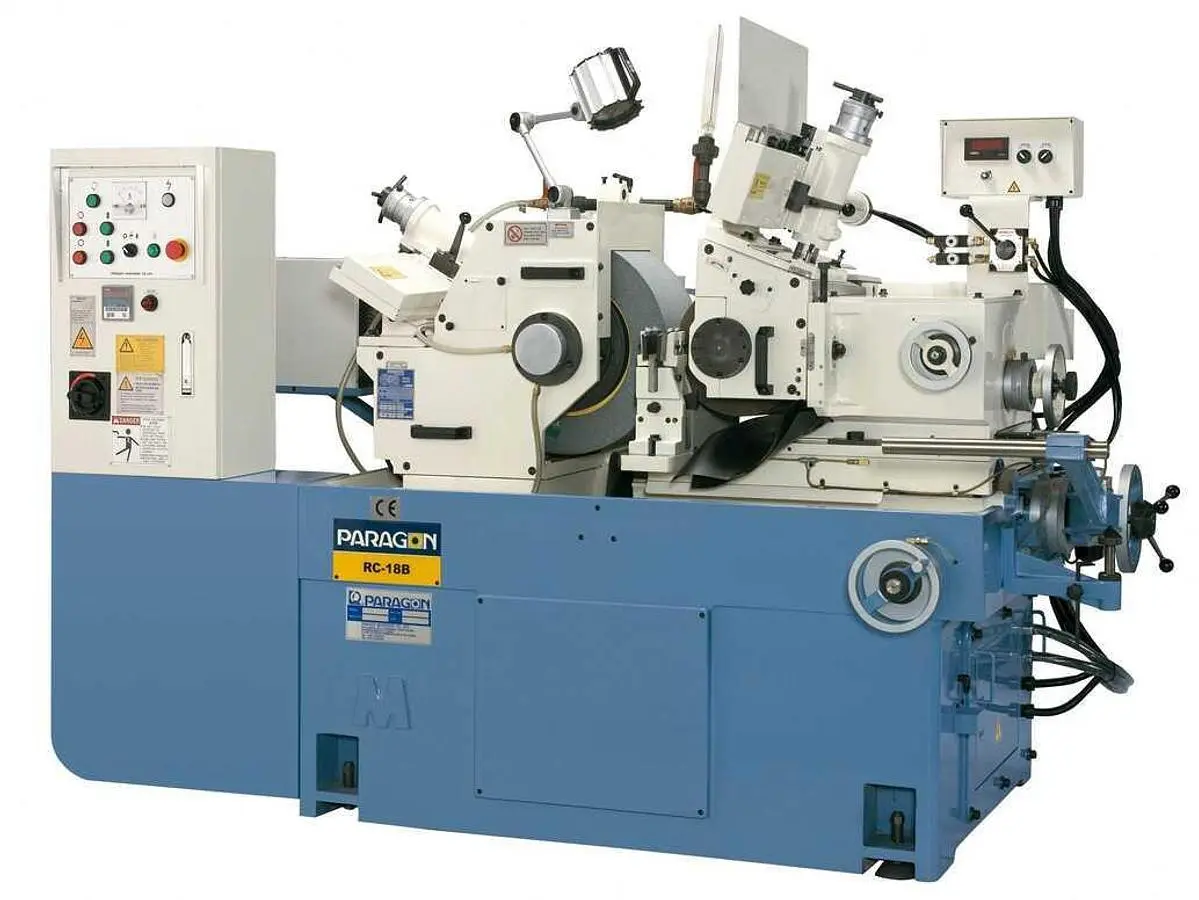

Roller and Ball Bearing Series (B Series)

The innovative advanced regulating wheel spindle does not require a flange and utilizes angular contact bearings and Roller and Ball Bearing with double supports that firmly maintain spindle super precision rotation and rigidity.

Grinding range (dia. mm): Ø2-Ø50
Grinding wheel size (dia. x width x hole mm): Ø510 x 205 x Ø304.8
Machine Dimension (WxDXH mm): 2,650×2,150×1,600
Machine Weight (kg): 4,000
