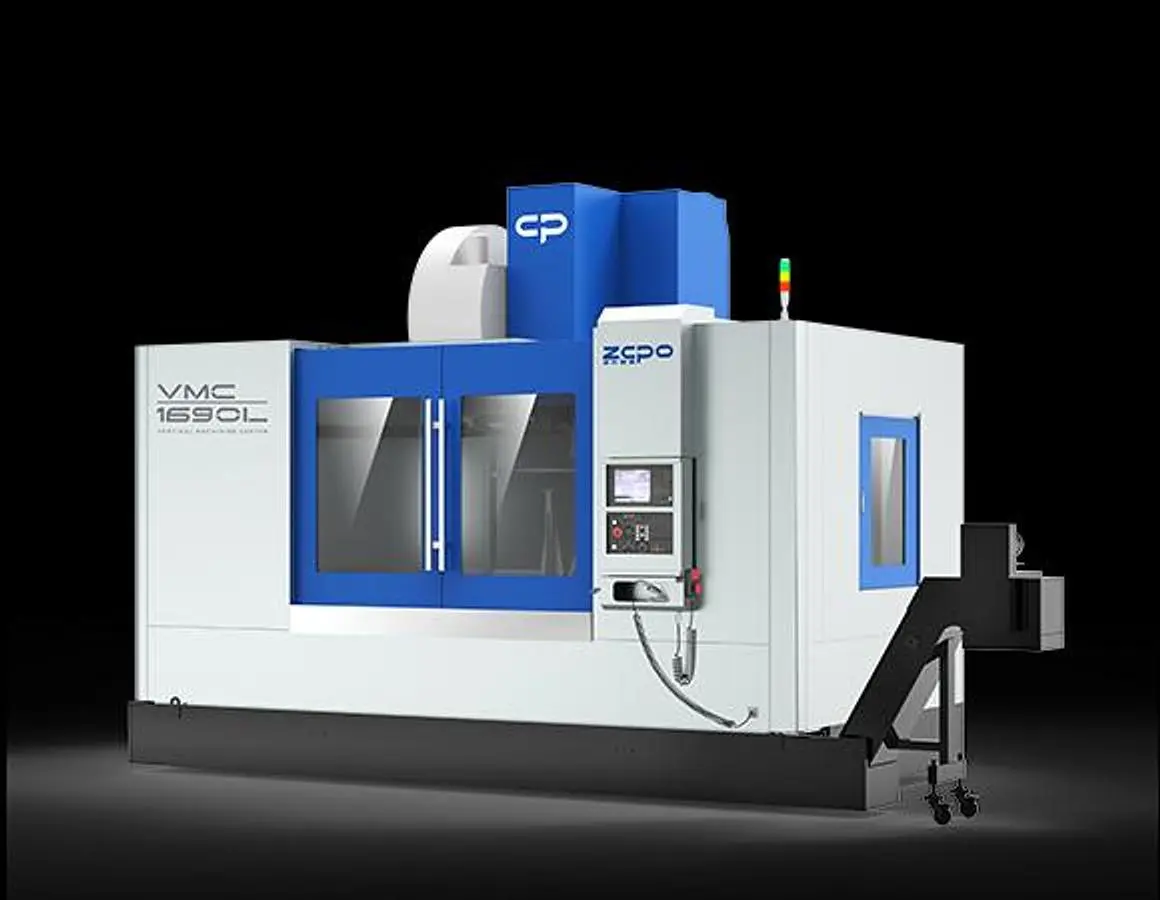

XY axis linear guideway Z axis box guideway large machine body structure with high rigidity heavy cutting and high stability
Three-axis full-travel support: unique machine bed slide design, saddle full-travel without hanging phenomenon, the table in the X-axis travel for the full support, processing center in the middle of the two guideway, load force is strong.
Y-axis adopts four 45mm high rigidity and high load roller linear guideway, 8 heavy slider, strengthen the rigidity and load.
Convenient and efficient chip conveyor: the machine is equipped with 2 screw rows as standard, effectively discharging the chips generated during machining, with high conveying efficiency.
Superior processing capabilities
The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
X/Y/Z axis travel: 1650/900/900mm
Distance from column to spindle center: 935mm
Distance from table surface to spindle nose: 95-995mm
Worktable size: 850x1700mm
T-slot size: 7-18（5x125/2x100）mm
Max. load bearing of worktable
Length: 1600kg
Spindle hole taper: BT50
Main motor power: 15/18.5KW
Spindle speed: 6000(belt)rpm
Max. feed speed: 10000mm/min
Rapid feed speed: 24/24/15m/min
Tool magazine capacity: 24T
Max.Tool change time: 4.5S
Machine dimension: 5800*3520*3880mm
Machine weight: 13500kg
