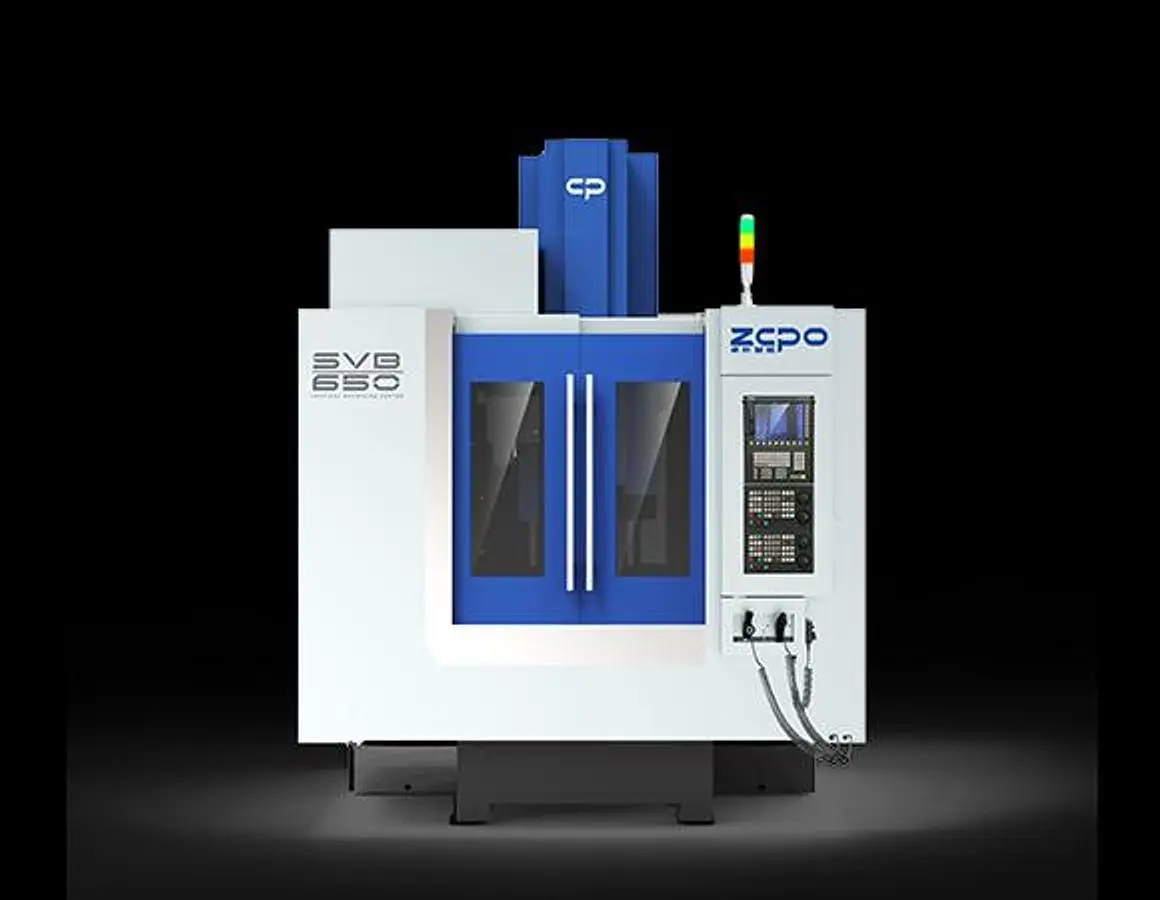

NEW 2026 ZOPO SVB650

Stable and reliable structure

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.

Closed spindle box

The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

Stable and reliable tool changing system

The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.
The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.
The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.

X/Y/Z axis travel: 650/400/500mm
Distance from column to spindle center: 451mm
Distance from table surface to spindle nose: 100-600mm
Worktable size: 400x850mm
T-slot size: 3-18*1000mm
Max. load bearing of worktable
Length: 400kg
Spindle hole taper: BT40
Main motor power: 7.5/11)KW
Spindle speed: 8000(belt)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 48/48/32m/min
Tool magazine capacity: 20T
Max.Tool change time: 2.5S
Machine dimension: 2110*2320*2750mm
Machine weight: 4100kg
