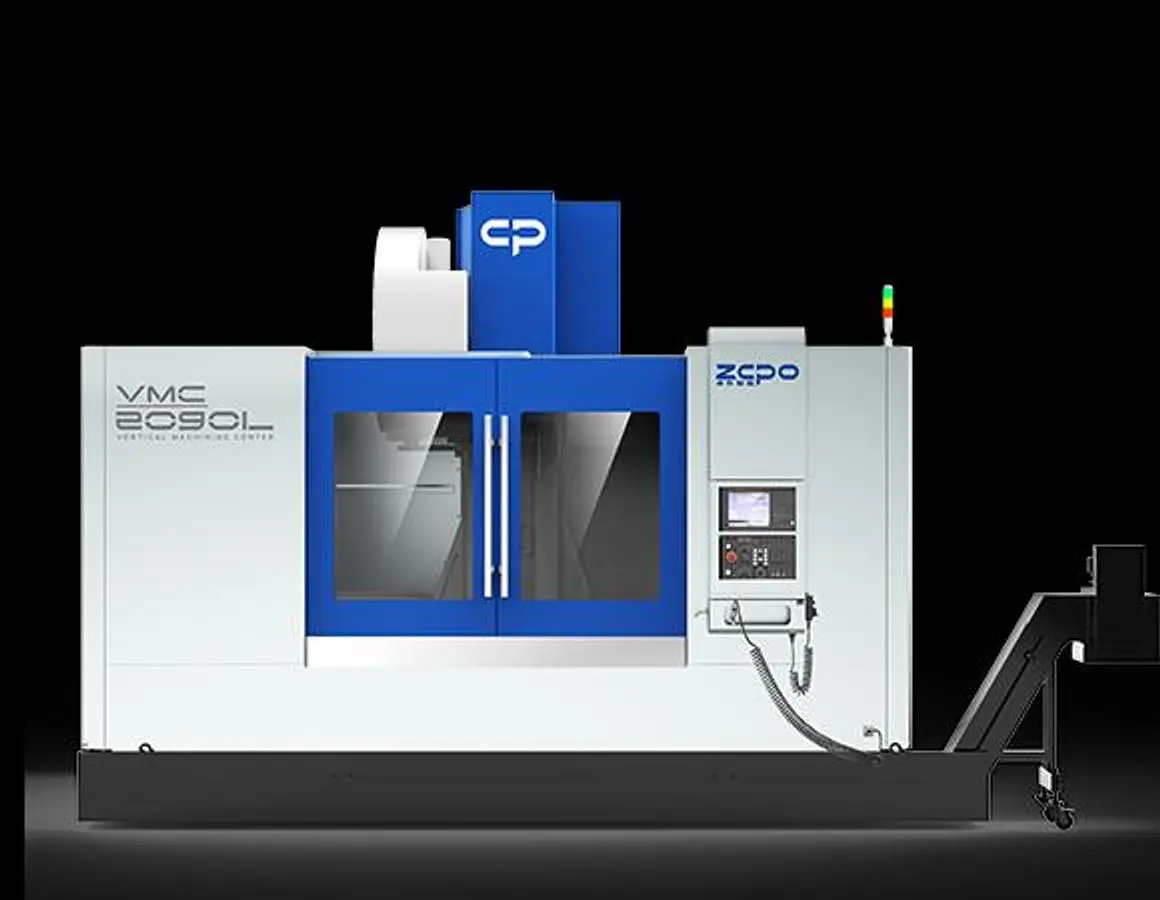

NEW 2026 ZOPO VMC2090L

XY axis linear guideway Z axis box guideway large machine body structure with high rigidity heavy cutting and high stability
Three-axis full-travel support: unique machine bed slide design, saddle full-travel without hanging phenomenon, the table in the X-axis travel for the full support, processing center in the middle of the two guideway, load force is strong.
Y-axis adopts four 45mm high rigidity and high load roller linear guideway, 8 heavy slider, strengthen the rigidity and load.
Convenient and efficient chip conveyor: the machine is equipped with 2 screw rows as standard, effectively discharging the chips generated during machining, with high conveying efficiency.

X/Y/Z axis travel: 2000/900/900m
Distance from column to spindle center: 960mm
Distance from table surface to spindle nose: 95-995mm
Worktable size: 900x2000mm
T-slot size: 7-18*125mm
Max. load bearing of worktable
Length: 1800kg
Spindle hole taper: BT50
Main motor power: 15/18.5KW
Spindle speed: 6000(belt)rpm
Max. feed speed: 10000mm/min
Rapid feed speed: 24/24/15m/min
Tool magazine capacity: 24T
Max.Tool change time: 4.5S
Machine dimension: 6400*3550*3880mm
Machine weight: 15200kg
