High rigidity and high precision structural design
After FEA, the integral bed with reinforcement is made of dense baked cast iron casting, which has better rigidity in the same size machine tool.
The bed and saddle are designed with triangular stabilizing structure, which strengthens the rigidity of the main load-bearing parts, thus ensuring the stability of accuracy.
Spindle box structure, while doing lightweight design, combined with FEA, to enhance the rigidity of the spindle box and dynamic response capability.
The lightweight design of the moving parts further improves the dynamic response speed of the machine tool.
Direct spindle
Direct spindle reduces vibration and noise compared to belt spindle, resulting in improved machining performance and a better working environment.
Higher productivity is realized by reducing tool change times and improving acceleration/deceleration times for all axis feed systems. Superior efficiency and accuracy for small hole machining, short-stroke acceleration/deceleration machining, and machining of curved surface corners with small line segments, etc.
Easier to use and more powerful control system
Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
Selection of energy-efficient processing modes
Tool management function
Broken tool detection function
Troubleshooting guide function
Super powerful human-computer interaction interface.
Stronger processing applications

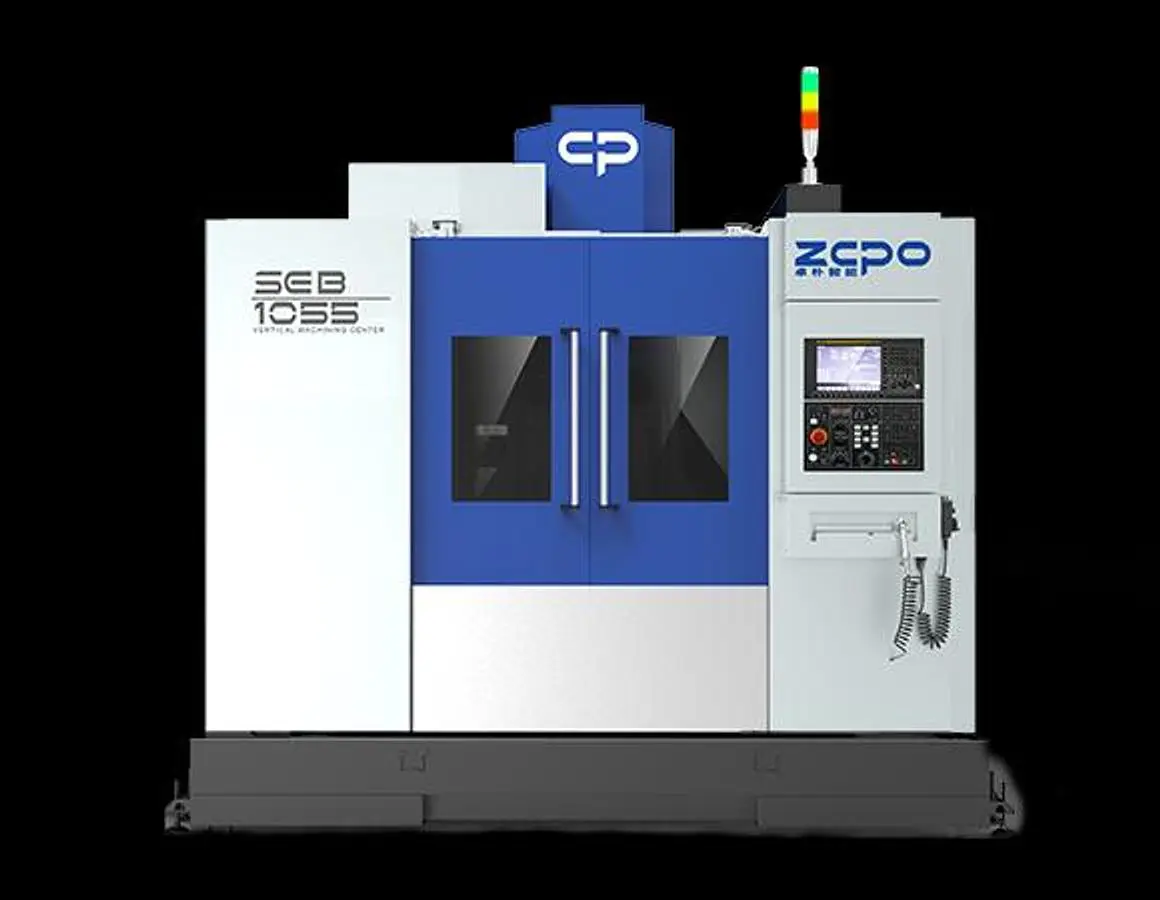

SE series vertical machining centers have leading capabilities in the machining of non-ferrous metals. With high speed, high precision and flexible expansion space, it is the first choice for automated group line machining and is widely used in high-tech industries such as automotive parts, molds and aerospace.
Larger machining range
Higher machining stability
Faster dynamic response
Higher metal removal capability
X/Y/Z axis travel: 1000/550/600mm
Distance from column to spindle center: 597mm
Distance from table surface to spindle nose: 120-720mm
Worktable size: 500x1100mm
T-slot size: 5-18*100mm
Max. load bearing of worktable
Length: 600kg
Spindle hole taper: BT40
Main motor power: 11/15KW
Spindle speed: 8000(belt)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 48/48/36m/min
Tool magazine capacity: 24T
Max.Tool change time: 2.5S
Machine dimension: 2650*2700*2850mm
Machine weight: 4800kg
