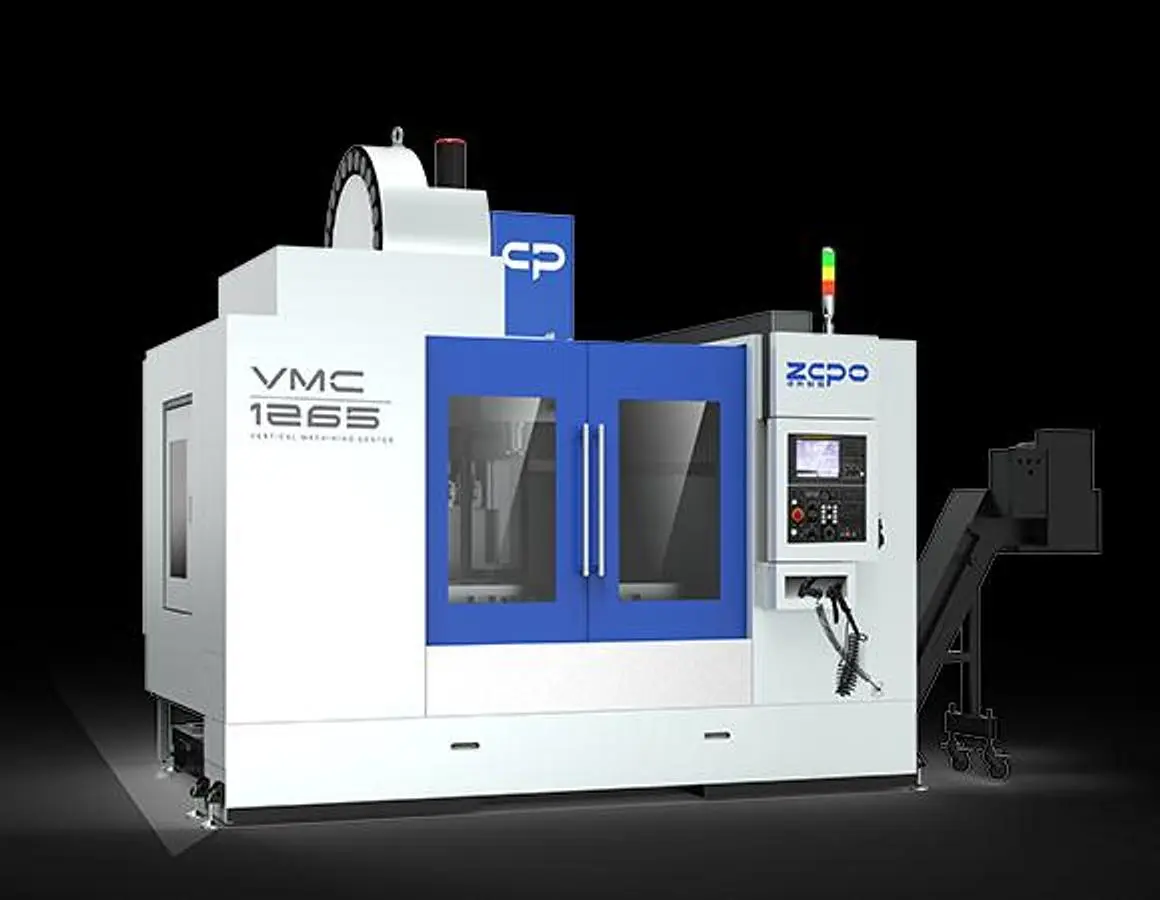

3 axes box guideway machine body structure with high rigidity heavy cutting and high stability
The base adopts double-layer covered box structure, and the base, bed saddle, worktable and column are all reinforced with rib structure, which makes the rigidity and precision of the machine tool better guaranteed, and thus avoids the deformation of the machine tool.
Precision hand scraping reduces wear and ensures that the machine remains highly accurate.
Superior processing capabilities
The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.
X/Y/Z axis travel: 1200/670/66mm
Distance from column to spindle center: 700mm
Distance from table surface to spindle nose: 115-780mm
Worktable size: 650*1400mm
T-slot size: 5-18*125mm
Max. load bearing of worktable
Length: 1200kg
Spindle hole taper: BT50
Main motor power: 11/15KW
Spindle speed: 6000(belt)rpm
Max. feed speed: 10000mm/min
Rapid feed speed: 12/12/12m/min
Tool magazine capacity: 24T
Max.Tool change time: 4.5S
Machine dimension: 4426*2620*3250mm
Machine weight: 8900kg
