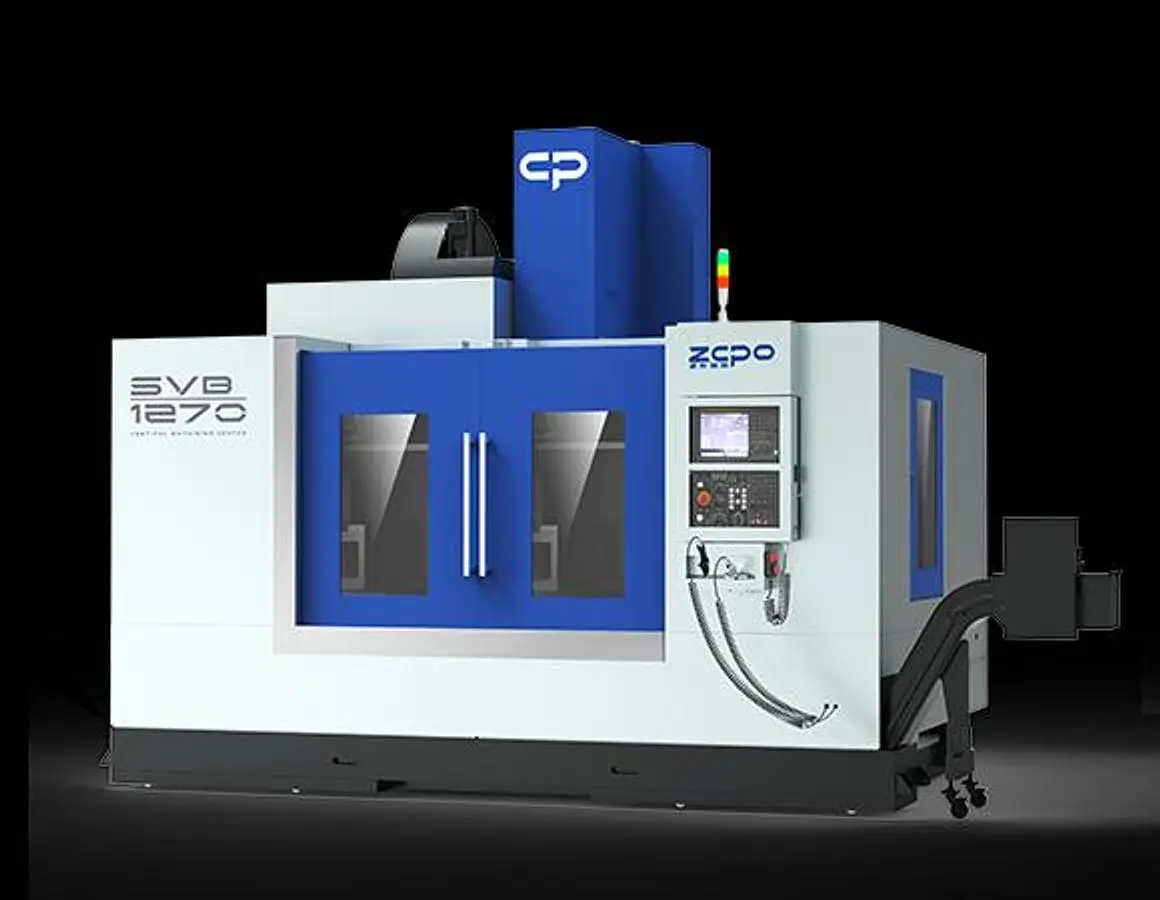

Stable and reliable structure
The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.
Convenient and efficient chip handling: The machine is equipped with two screws as standard to effectively discharge the chips generated during processing, with high conveying efficiency.
X/Y/Z axis travel: 1200/700/700mm
Distance from column to spindle center: 766mm
Distance from table surface to spindle nose: 150-850mm
Worktable size: 700x1400mm
T-slot size: 5-18*125mm
Max. load bearing of worktable
Length: 1000kg
Spindle hole taper: BT50
Main motor power: 15/18.5(wide area)KW
Spindle speed: 6000(belt)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 24/24/20m/min
Tool magazine capacity: 24T
Max.Tool change time: 3.5S
Machine dimension: 4350*2955*3320mm
Machine weight: 9700kg
