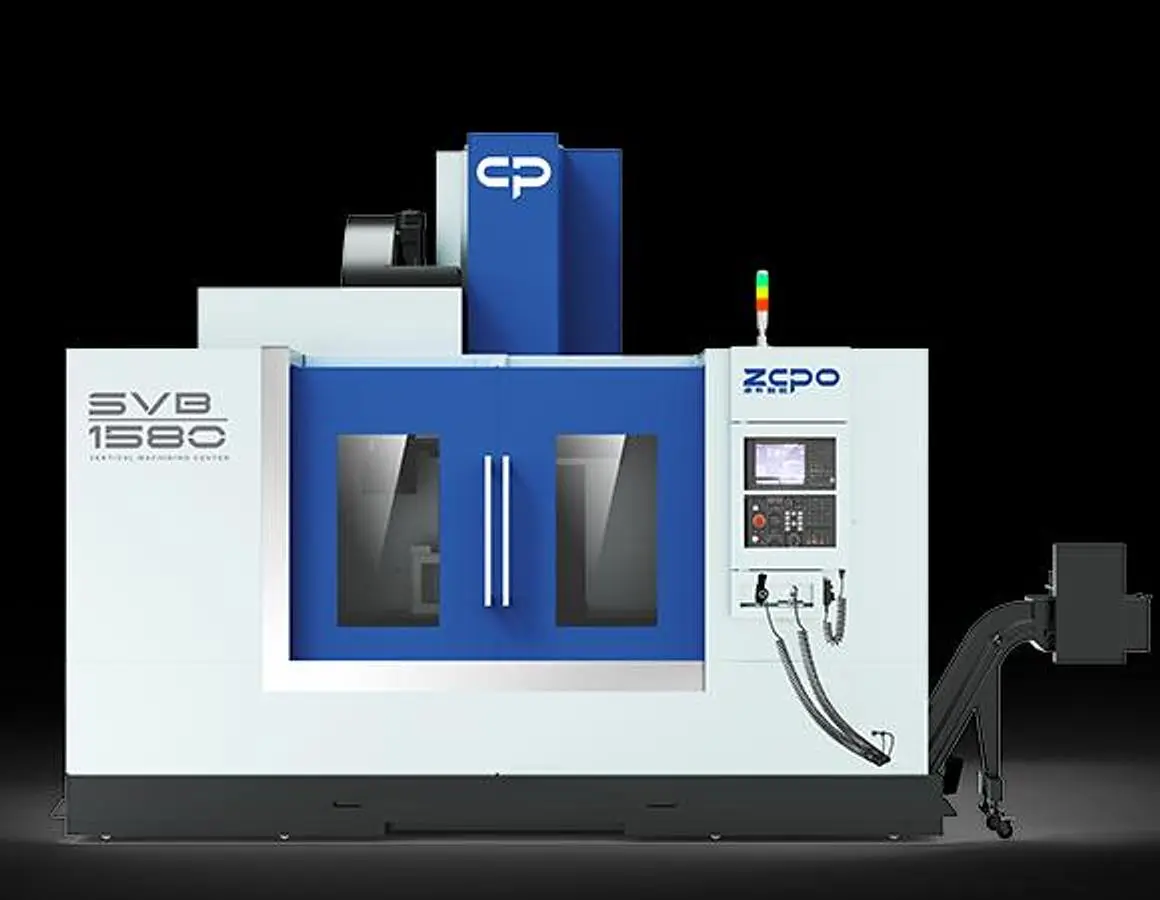

Stable and reliable structure
The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.Closed spindle box
The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.
X/Y/Z axis travel: 1500/800/800mm
Distance from column to spindle center: 887mm
Distance from table surface to spindle nose: 180-980mm
Worktable size: 800x1700mm
T-slot size: 5-22*160mm
Max. load bearing of worktable
Length: 1200kg
Spindle hole taper: BT50
Main motor power: 15/18.5(wide area)KW
Spindle speed: 6000(belt)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 24/24/20m/min
Tool magazine capacity: 24T
Max.Tool change time: 3.5S
Machine dimension: 5300*3250*3560mm
Machine weight: 14500kg
