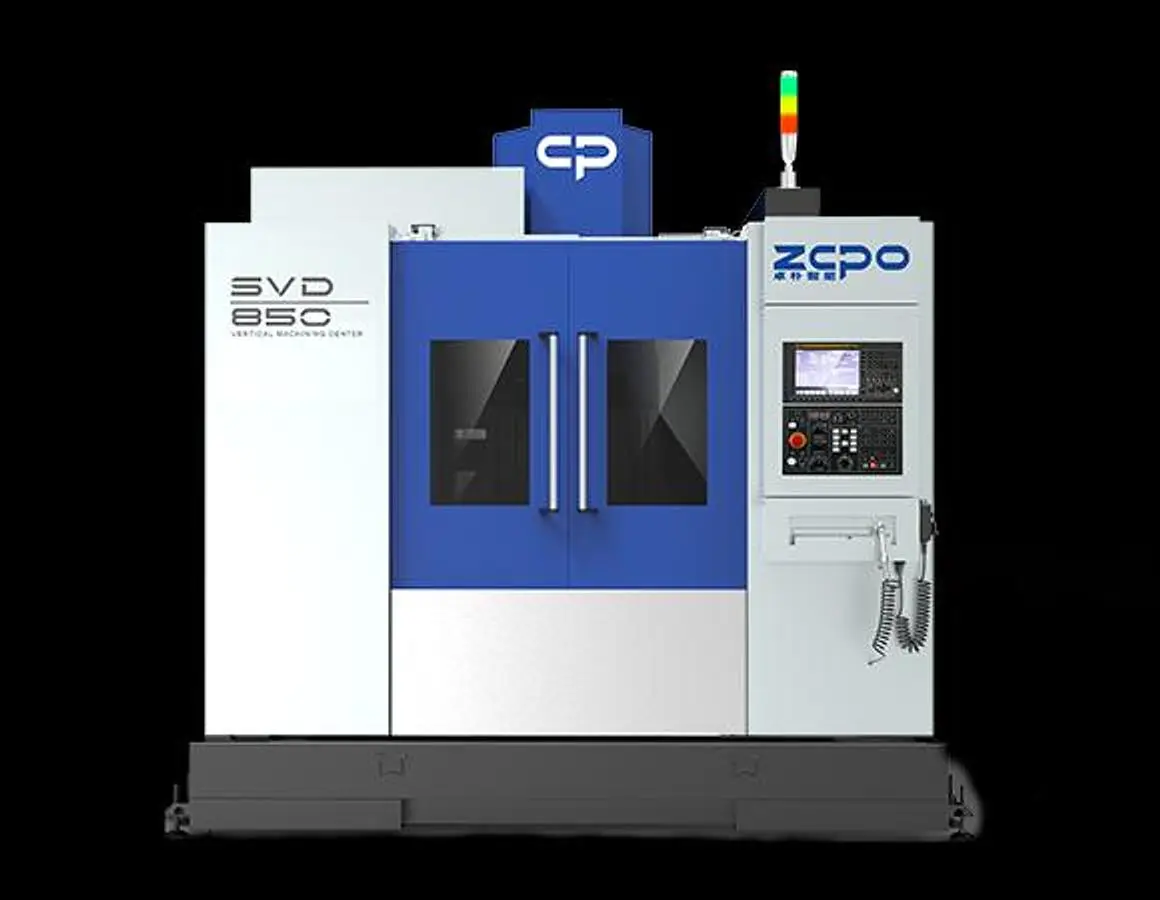

NEW 2026 ZOPO SVD850

Stable and reliable bed structure

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.
Closed spindle box

The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

Direct spindle
The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly
Greatly improve processing efficiency and quality
Extend tool life and reduce processing costs

X/Y/Z axis travel: 850/520/560mm
Distance from column to spindle center: 592mm
Distance from table surface to spindle nose: 120-680mm
Worktable size: 500x1000mm
T-slot size: 5-18*100mm
Max. load bearing of worktable
Length: 600kg
Spindle hole taper: BT40
Main motor power: 7.5/11KW
Spindle speed: 12000(direct)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 48/48/32m/min
Tool magazine capacity: 24T
Max.Tool change time: 2.5S
Machine dimension: 2250*2700*2850mm
Machine weight: 6800kg
