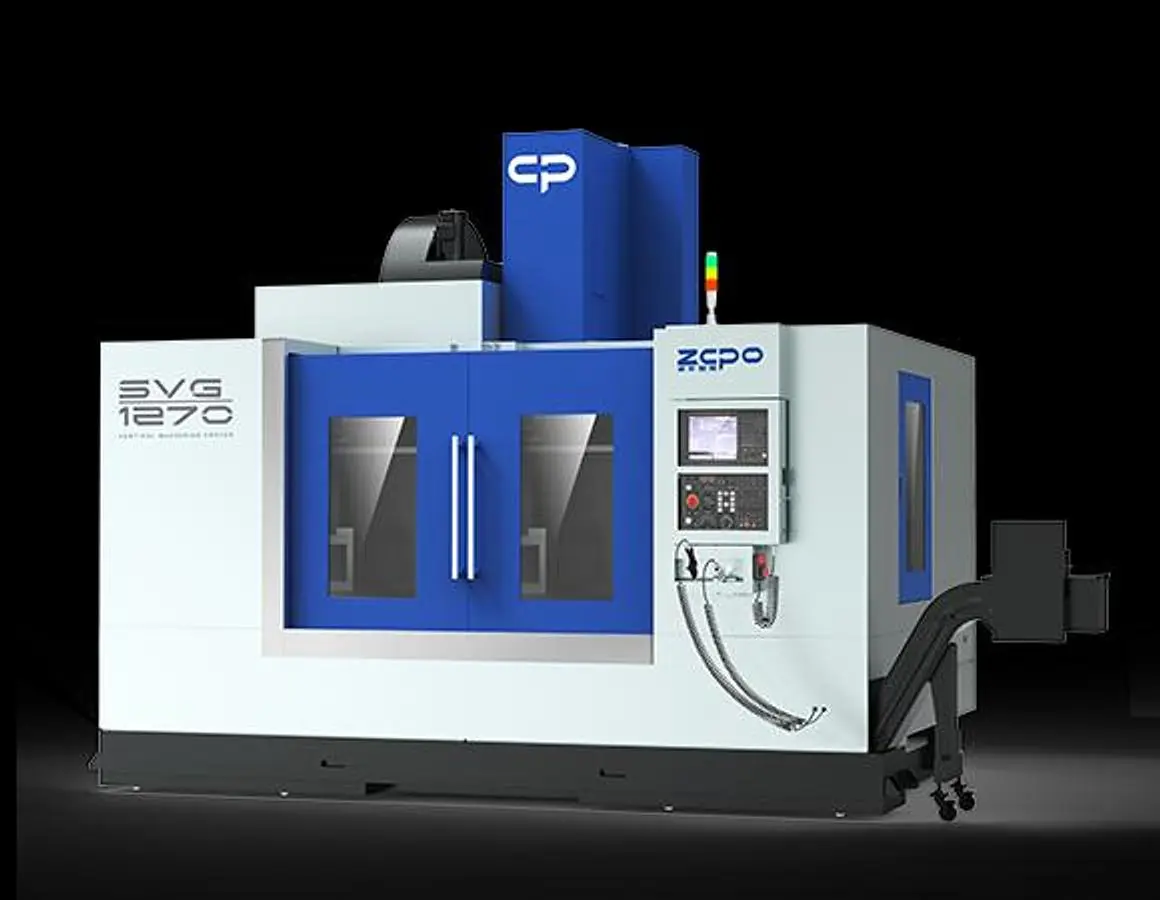

NEW 2026 ZOPO SVG1270

Higher stability and high rigidity bed structure

The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine.
The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tool's three-axis transmission.
The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.
Convenient and efficient chip handling: The machine tool is equipped with two screw rows as standard to effectively discharge the iron chips generated during processing, with high conveying efficiency.
Closed spindle box

The spindle box adopts a closed box structure, the contact size with the column guideway is enlarged, and the overall lightweight design. The short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine processing.

High rigidity spindle

The SVG series uses built-in gear transmission, and the 2-stage gear-driven spindle uses cylindrical roller bearings to ensure strong torque at low speed and stable speed at high speed to meet customers' diverse processing needs. The maximum torque at low speed can reach 1042Nm.

X/Y/Z axis travel: 1200/700/700mm
Distance from column to spindle center: 766mm
Distance from table surface to spindle nose: 150-850mm
Worktable size: 700x1400mm
T-slot size: 5-18*125mm
Max. load bearing of worktable
Length: 1000kg
Spindle hole taper: BT50
Main motor power: 11/15(Wide area)KW
Spindle speed: 6000(Gearhead)rpm
Max. feed speed: 12000mm/min
Rapid feed speed: 24/24/20m/min
Tool magazine capacity: 24T
Max.Tool change time: 3.5S
Machine dimension: 4350*2955*3320mm
Machine weight: 9700kg
