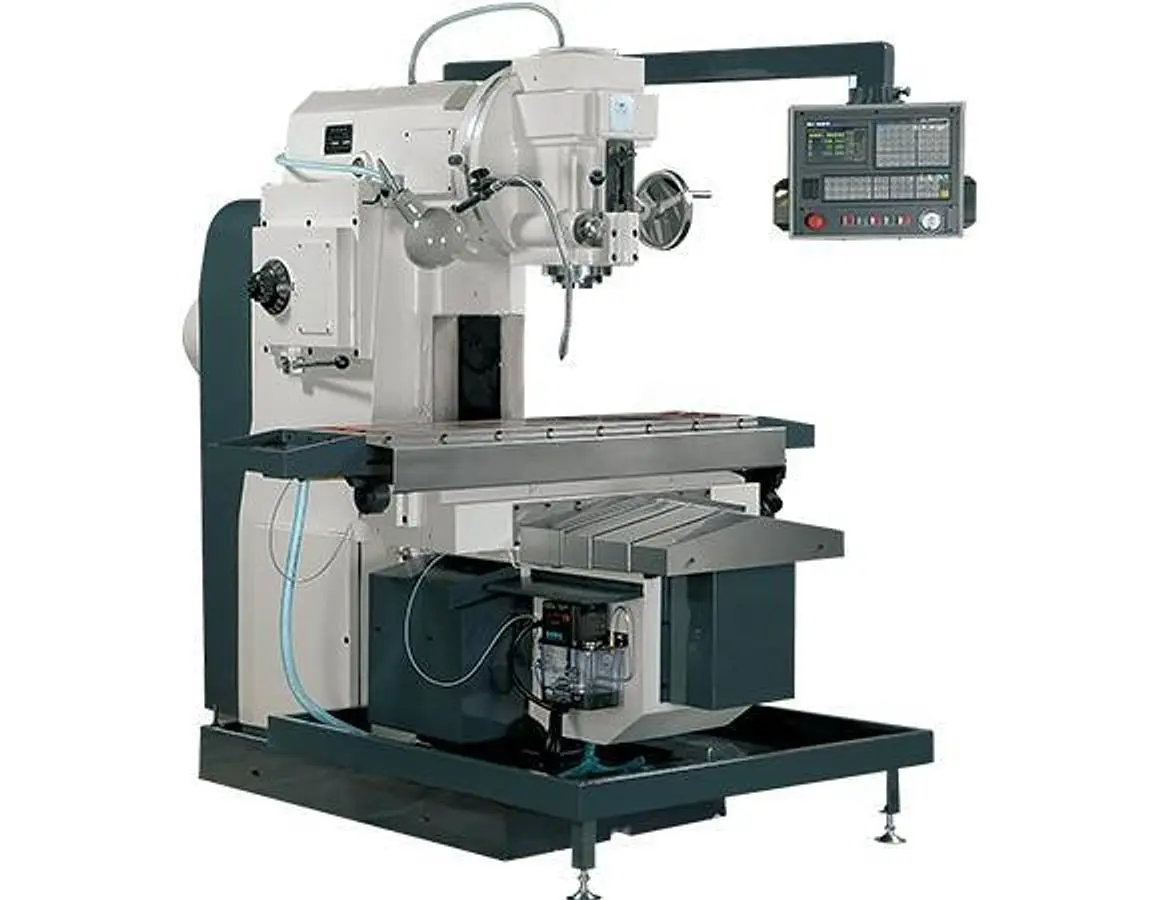

NEW 2026 ZOPO XK5030B

Rigidity structure +Stability precision
This horizontal knee type milling machine has high rigidity structure and stable precision. Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
This CNC knee type milling machine has high rigidity structure and stable precision. Configured with high performance numerical control system, which can achieve X Y Z combined
The machine has complete functions, high degree of automation, easy operation and reliable performance.
High rigidity and stability of mechanical structure

The spindle is driven by variable frequency motor, which is with power of 4kW and max. speed 5000rpm. It is transmit by a flexible coupling and the gear of the speed change mechanism. Depend on the variable frequency power to spindle, speed range from 200-2500rpm.
3 axe adopt high-precision ball screws, Y axis driven by motor directly, others driven by the synchronous belt, which devoted to high precision.
Three directions guideway are equipped with quenching and plastic coating, which can improve to high accuracy and long life.
高刚性
加工应用能力
Extensive Application

This machine has advantages on maching complex and high presision products, no matter for one piece or big batch, like cam, sample, module, arc groove and so on.
More machining can achieve with some accessories like universal indexing head, circular table and so on.

X/Y/Z axis travel: 580/260/90 mm
Max spindle quill travel: 90mm
Distance from spindle nose to table surface: 70-430 mm
Distance from spindle center to vertical guideway: 290 mm
Distance from table center to vertical guideway: 160-420 mm
Worktable size: 300x1100mm
T slots: 3-14*63
Max. load bearing of worktable: 280kg
Spindle hole taper: 7：24 No.50
Spindle power: 4KW
Max. spindle speed: 2500rpm
Rapid feed speed: 2000mm/min
Feed speed range: 3000/3000/1500mm/min
Machine dimension: 1500*1470*1800mm
Machine weight: 1800kg
