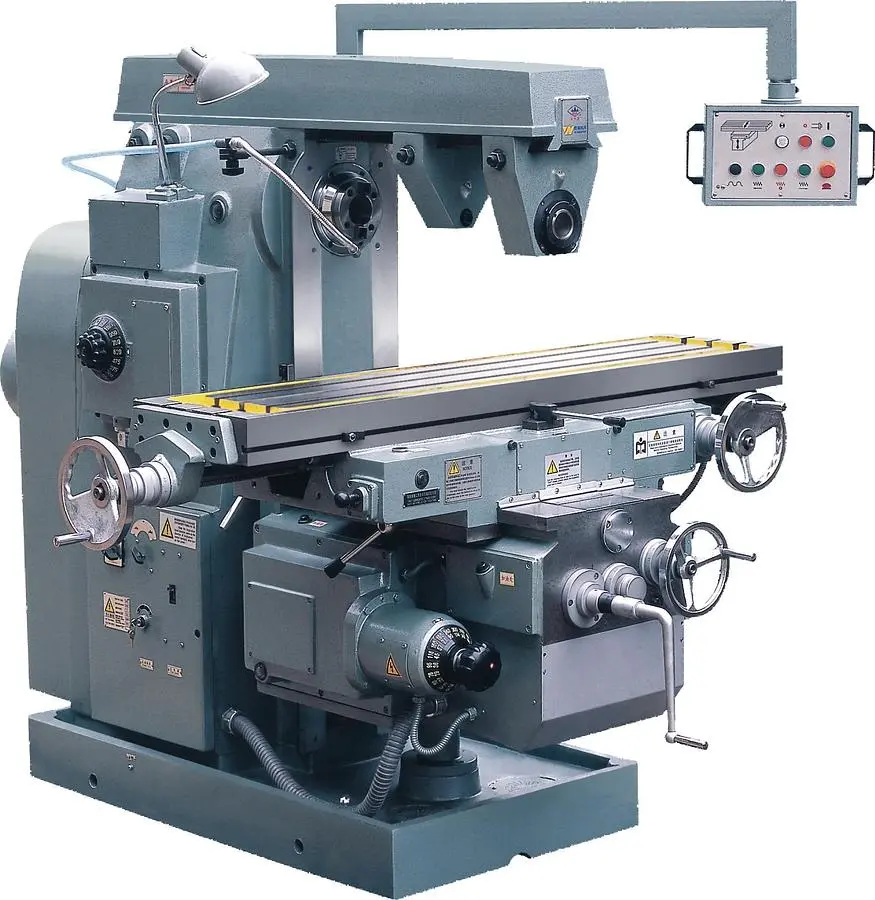

NEW 2026 ZOPO X6036

Rigidity structure +Stability precision

This horizontal knee type milling machine has high rigidity structure and stable precision. .Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
加工应用能力
Extensive Application

Mounted with rod, disc, angle, forming and face milling cutter, the machine can use for flat, bevel, angle, groove and edge processing. The machine can also be milling gears, reamers, spiral grooves, cams and drums instal with indexing accessories and others, which is widely used in machining industries.

X/Y/Z axis travel: 1020/300/410 mm
Distance from spindle nose to table surface: 50-460mm
Distance from spindle center to vertical guideway: 155 mm
Distance from table center to vertical guideway: 235-535 mm
Worktable size: 360x1600mm
T slots: 3-18*80mm
Max. load bearing of worktable: 500kg
Spindle hole taper: 7：24 No.50
Spindle power: 7.5KW
Max. spindle speed: 1500rpm
Rapid feed speed: 2250/2250/844mm/min
Feed speed range: 15-750/15-750/5.7-280mm/min
Machine dimension: 2327/2067/1720mm
Machine weight: 2850kg
