Rigidity structure +Stability precision

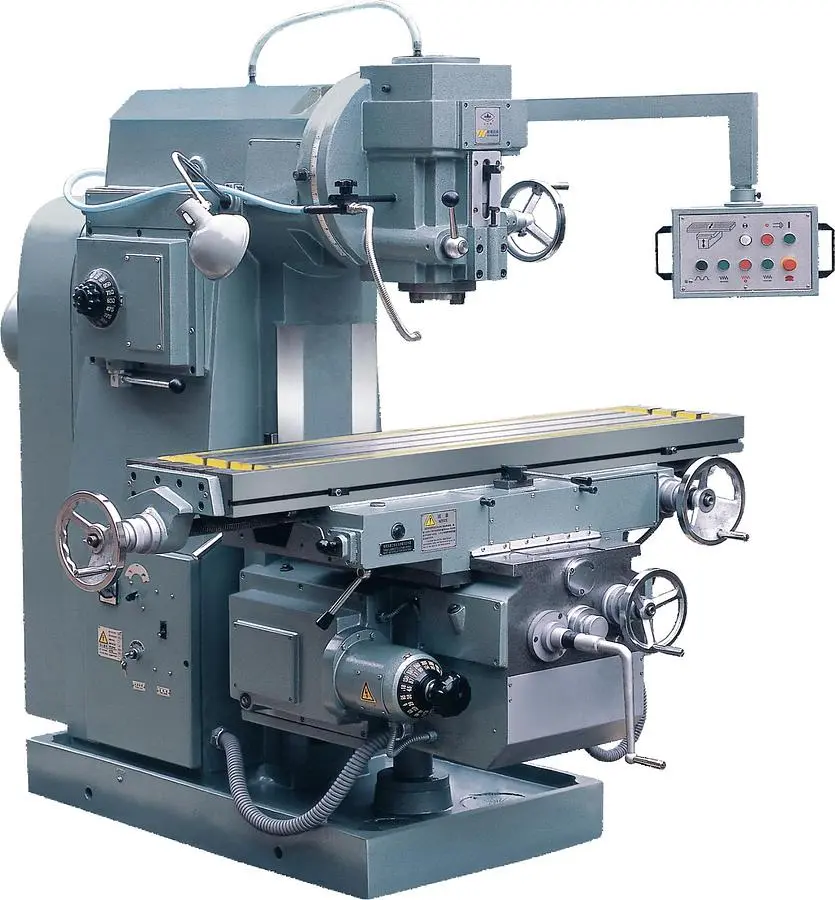

This vertical knee type milling machine has high rigidity structure and stable precision. .Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
加工应用能力
Extensive Application
Mounted with rod, disc, angle, forming and face milling cutter, the machine can use for flat, bevel, angle, groove and edge processing. The machine can also be milling gears, reamers, spiral grooves, cams and drums instal with indexing accessories and others, which is widely used in machining industries.
X/Y/Z axis travel: 1200/360/470mm
Distance from spindle nose to table surface: 40-510 mm
Distance from spindle center to vertical guideway: 450mm
Distance from table center to vertical guideway: 275-655 mm
Worktable size: 420x1800mm
T slots: 3-18*90mm
Max. load bearing of worktable: 800kg
Spindle hole taper: 7：24 No.50
Spindle power: 11KW
Max. spindle speed: 1500rpm
Rapid feed speed: 2400/2400/900mm/min
Feed speed range: 22-1100/22-1100/8.3-410mm/min
Machine dimension: 2522/2265/2432mm
Machine weight: 4450kg
