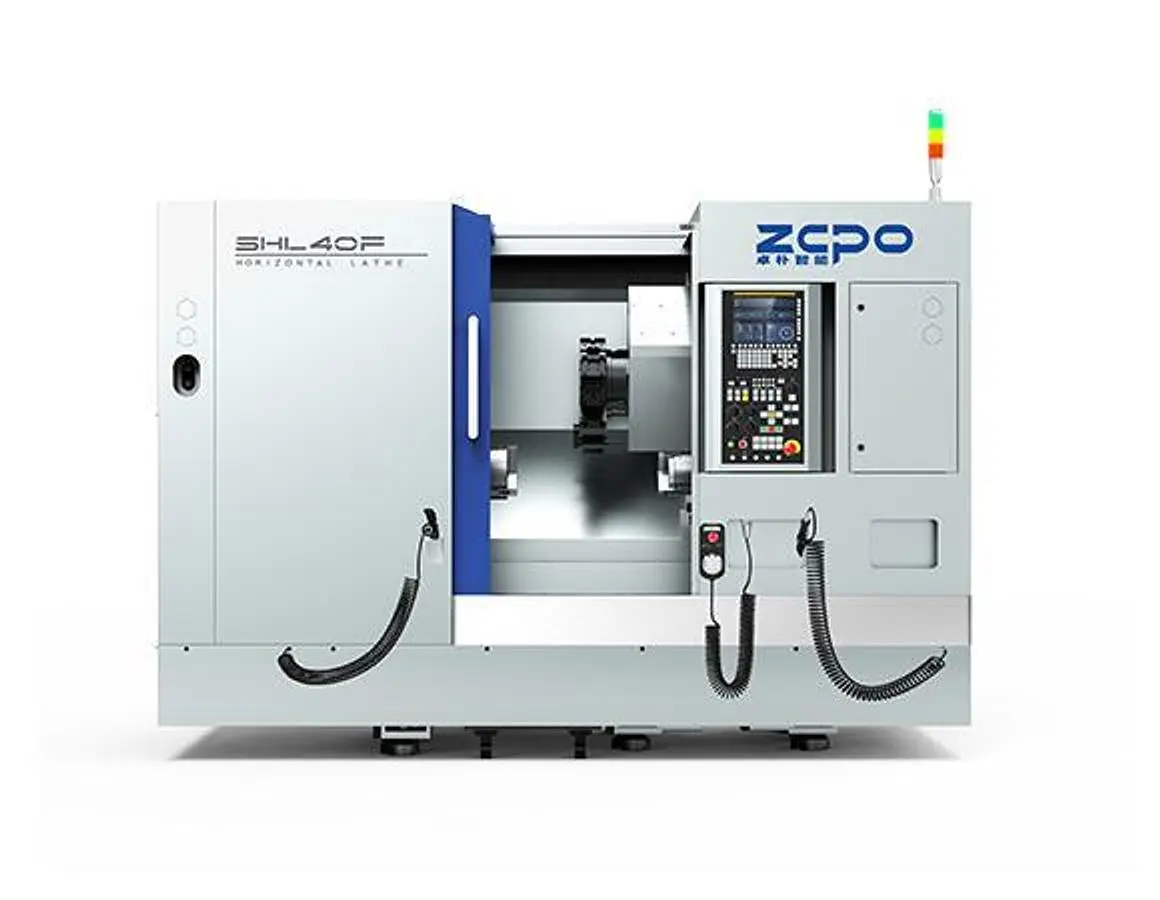

NEW 2026 ZOPO SHL40F

Cost-effective

On the basis of the P series, use more cost-effective functional components significantly enhances the product's market competitiveness.
Compact Design&High Efficenty

The compact design occupy smaller space, and easy to install and use.
The gang tool layout can quickly change tools, reduce tool changing time, and improve processing efficiency.
结构紧凑
适用范围广
Flexible Processing

Suitable for processing various axis and disc parts, capable of completing various machining processes such as turning, drilling, boring, tapping, etc., and with high scalability, it can adapt to various internal and external automatic lines, improving machining efficiency

Max. Swing Over Bed: Φ400mm
Max.Turning Length: 300mm
Max.Turning Dia: Φ320mm
Max. Swing Over Carriage: Φ160mm
X/Z Axis Travel: 460/365mm
Spindle Hole Taper: A2-5
Max. Passing Bar Dia.: Φ42mm
Spindle Speed Range: 50-5000rpm
Power: 5.5/7.5kW
Standard Chuck Dia.: φ42Collet
Rapid Feed Rate: 20/24m/min
Tailstock Spindle Taper: /
Standard Turret: Gang Tool
Nearby Tool Select: Yes
Machine dimension: 2200*1600*1700mm
Machine weight: 2500kg
