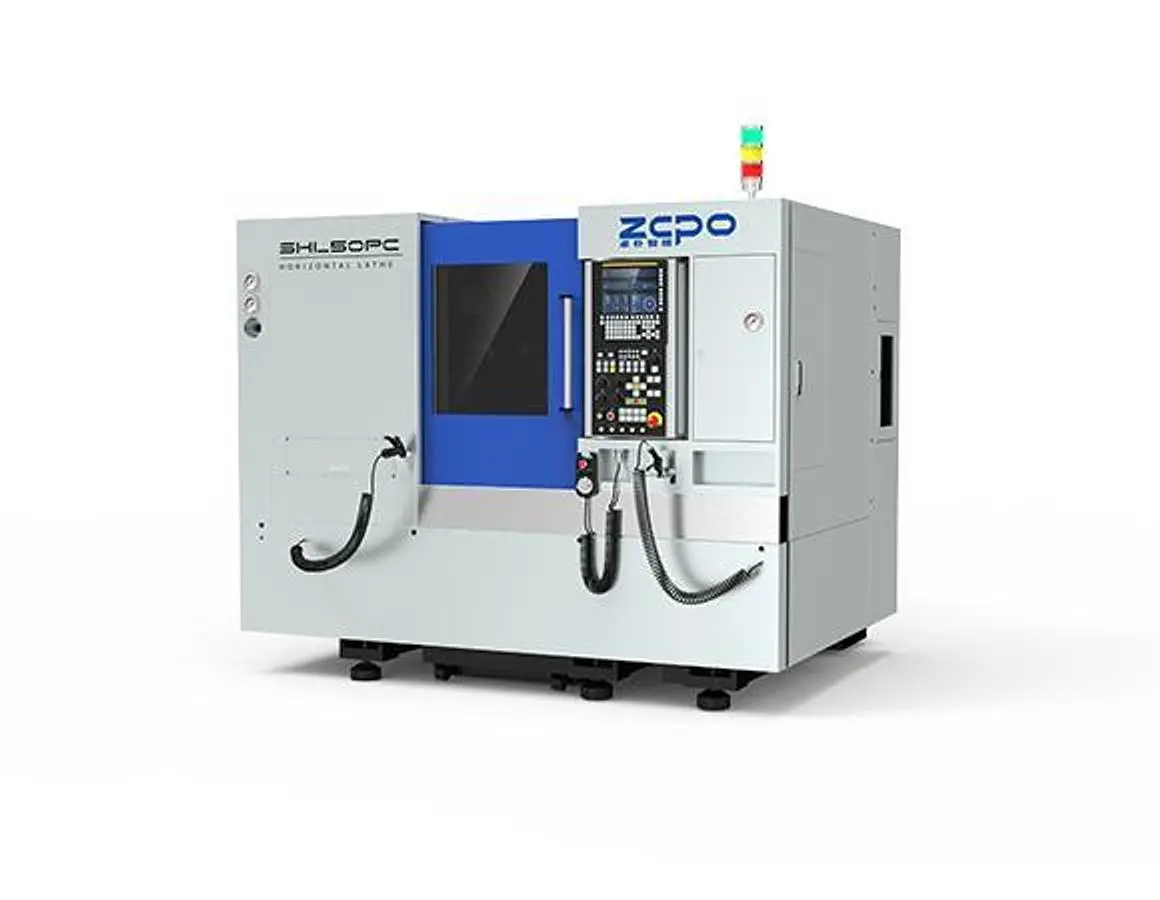

NEW 2026 ZOPO SHL50PC

30°Inclined Machine Bed

30° Inclined machine bed，making the center of gravity of the bed lower, the rigidity higher, and the vibration generated during cutting smaller, it is more suitable for deep cutting. Thickened bed saddles are used to improve the deep cutting performance of the machine

Linear Guideway

Imported 35# ball linear guideway, with high feed accuracy, low friction resistance, good rigidity, high resistance to vibration and deformation, which can enable users to achieve high processing accuracy and improve the speed of rapid movement, achieving high production efficiency
直线导轨
内嵌主电机
Embedded Main Motor

The embedded main motor makes the bed more compact and occupies a smaller area without affecting the machining stroke. It can be equipped with a chip box, side row, or rear row.

Max. Swing Over Bed: Φ500mm
Max.Turning Length: 500mm
Max.Turning Dia: Φ300mm
Max. Swing Over Carriage: Φ300mm
X/Z Axis Travel: 200/560mm
Spindle Hole Taper: A2-6
Max. Passing Bar Dia.: Φ50mm
Spindle Speed Range: 50-4500rpm
Power: 11/15kW
Standard Chuck Dia.: 8'' inch
Rapid Feed Rate: 30/30m/min
Tailstock Spindle Taper: 5#
Standard Turret: 12T(Driven)
Nearby Tool Select: Yes
Machine dimension: 2275*1625*1825 mm
Machine weight: 3650kg
