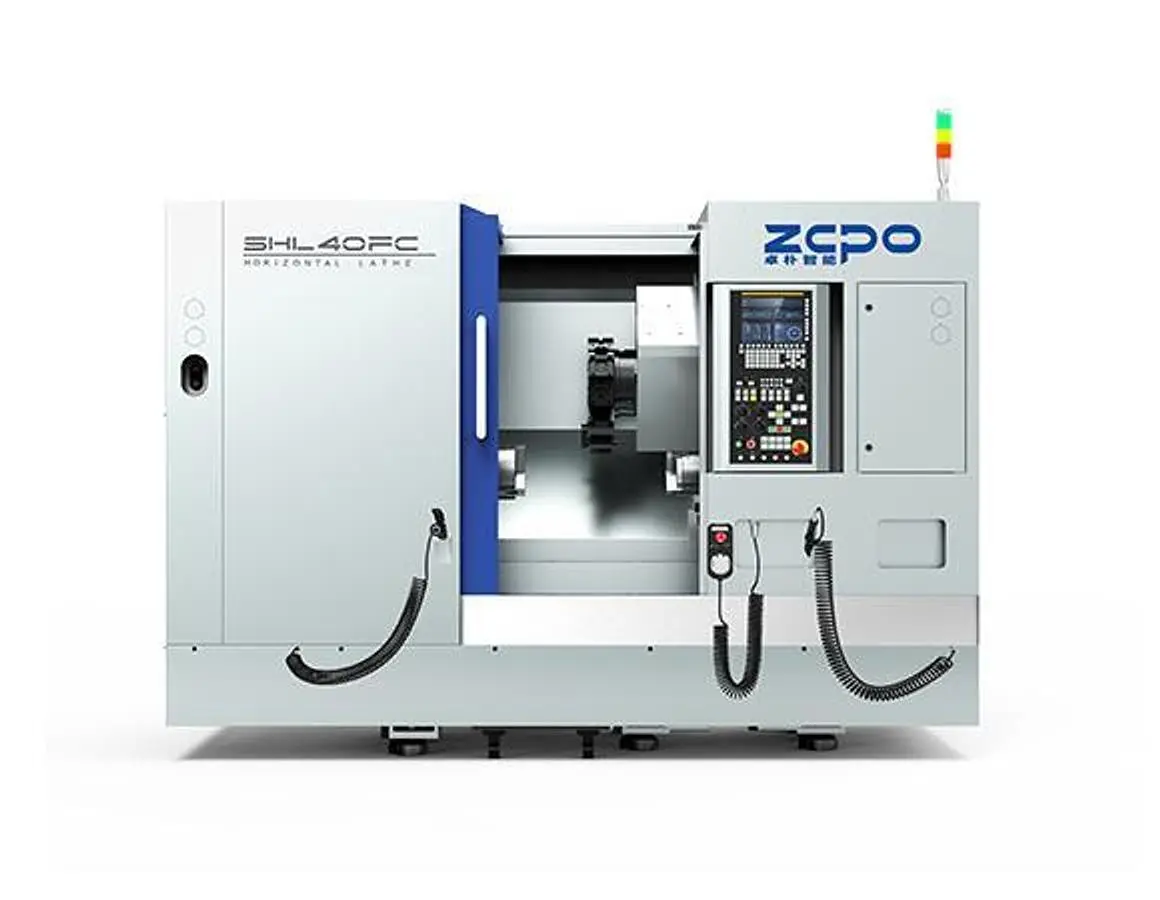

NEW 2026 ZOPO SHL40FC

Multi Function Integration

Integrate gang tools and milling/turning tools on one machine, reduces the times of transfers and clamping of workpieces between different machines, improves efficiency, and reduces costs.
Quick Tool Change

The tool changing process of the gang tools and milling tools is usually quick, which helps to shorten the processing assistance time.
高刚性伺服刀架
阶梯导轨床身
Flexible Processing

It can adapt to the processing of various shapes and sizes of parts, and can perform both simple turning and complex milling processes.

Max. Swing Over Bed: Φ400mm
Max.Turning Length: 300mm
Max.Turning Dia: Φ320mm
Max. Swing Over Carriage: Φ160mm
X/Z Axis Travel: 460/365mm
Spindle Hole Taper: A2-5
Max. Passing Bar Dia.: Φ42mm
Spindle Speed Range: 50-5000rpm
Power: 5.5/7.5kW
Standard Chuck Dia.: φ42Collet
Rapid Feed Rate: 20/24m/min
Tailstock Spindle Taper: /
Standard Turret: Gang tool，Power head
Nearby Tool Select: Yes
Machine dimension: 2200*1600*1700mm
Machine weight: 2500kg
