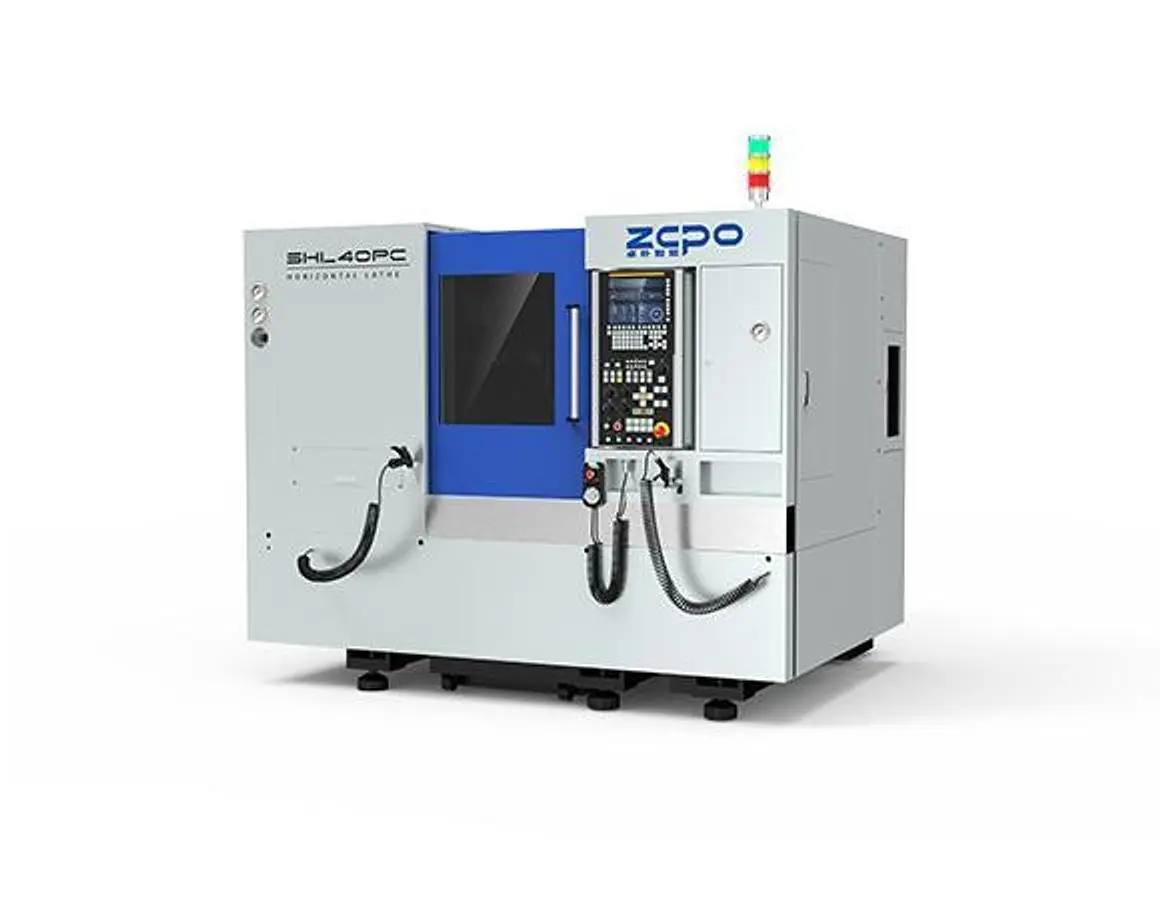

NEW 2026 ZOPO SHL40PC

Compact Design&High Efficenty

The compact design occupy smaller space, and easy to install and use.
The gang tool layout can quickly change tools, reduce tool changing time, and improve processing efficiency.
High Rigidity Structure

The design of the body and components has high rigidity, which can ensure stability during the machining process, reduce vibration and deformation, and improve the processing accuracy.
高刚性结构
适用范围广
Flexible Processing

Suitable for processing various axis and disc parts, capable of completing various machining processes such as turning, drilling, boring, tapping, etc., and with high scalability, it can adapt to various internal and external automatic lines, improving machining efficiency

Max. Swing Over Bed: Φ400mm
Max.Turning Length: 300mm
Max.Turning Dia: Φ320mm
Max. Swing Over Carriage: Φ160mm
X/Z Axis Travel: 460/365mm
Spindle Hole Taper: A2-5
Max. Passing Bar Dia.: Φ42mm
Spindle Speed Range: 50-5000rpm
Power: 7.5/11kW
Standard Chuck Dia.: φ42Collet
Rapid Feed Rate: 20/24m/min
Tailstock Spindle Taper: /
Standard Turret: Gang Tool/Driven Head
Nearby Tool Select: /
Machine dimension: 2200*1600*1700mm
Machine weight: 2500kg
