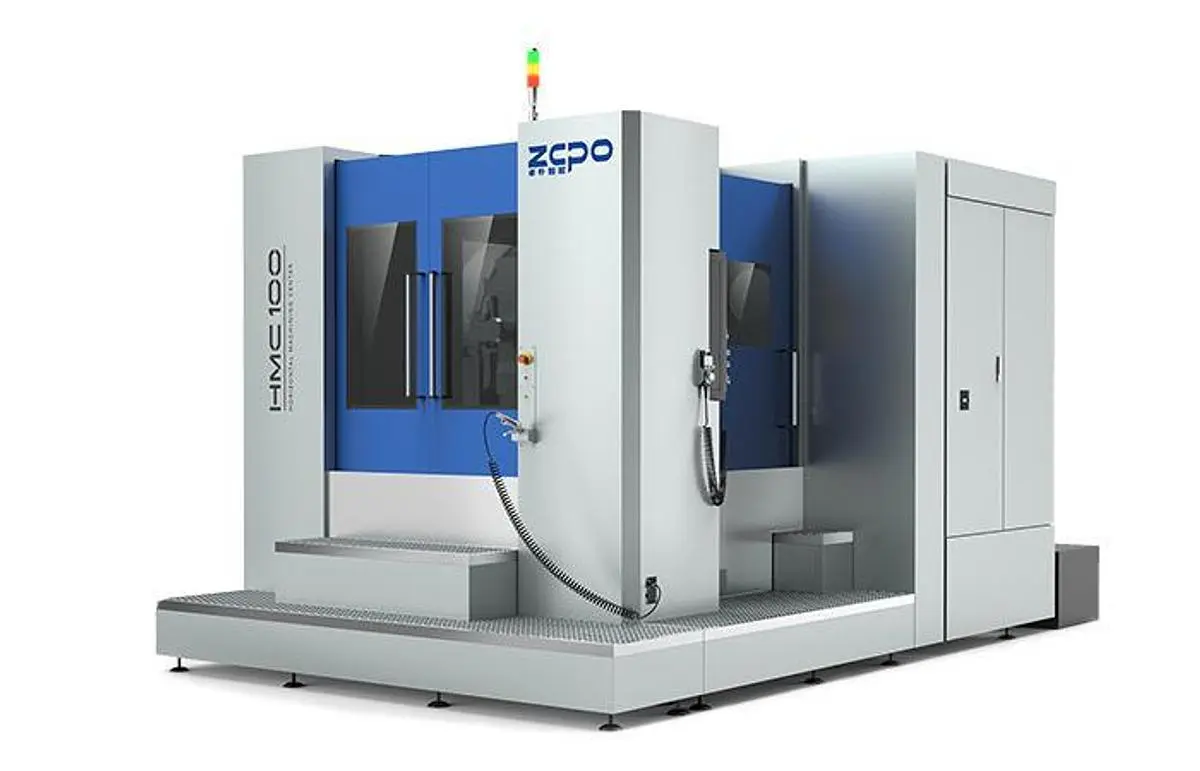

NEW 2026 ZOPO HMC100

Positive T type machine body

Better igidity than inverted T type
The accuracy of the whole machine is significantly improved
Less movement inertia of 3 axis moving component
Easy to achieve high speed and high precision processing

X-axis stepped layout
Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality

High precision double nut ball screw

Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed:24/24/24m/min

High rigidity, high precision

Low noise roller type linear guideway
Ensure high stability
高精度
加工应用
Application industry

Suitable for parts with complex shapes and
mass production of products requiring high precision
Especially the processing of box and complex structural parts
Industries such as automotive, aerospace, Marine and power generation

X/Y/Z axis travel: 1600/1000/1200mm
Distance between two columns: 20-1020mm
Distance from table surface to spindle nose: 300-1500mm
Worktable size: 1000x1000mm
Workpiece clamping type: 7-22x125
Rotary diameter of workpiece: Φ2000
Max. load bearing of worktable: 2500kg
Spindle hole taper: BT50
Spindle power: 15/18.5KW
Max. spindle speed: 5300(belt)rpm
Max. feed speed: 6000mm/min
Rapid feed speed: 24/24/24m/min
Tool magzine capacity: 24T
Tool changing time: 5.5S
Machine dimension: 5700*4600*3370mm
Machine weight: 18000kg
