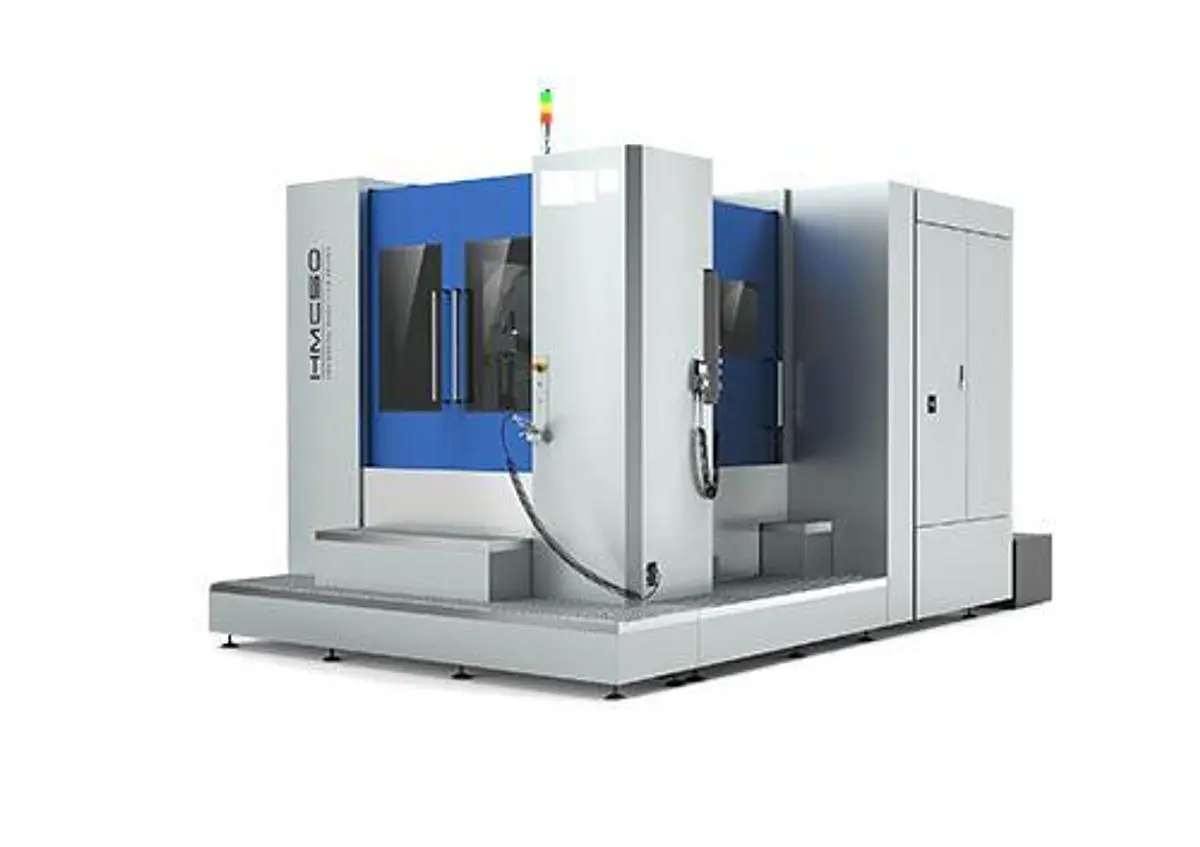

NEW 2026 ZOPO HMC50

Positive T type machine body

Better igidity than inverted T type
The accuracy of the whole machine is significantly improved
Less movement inertia of 3 axis moving component
Easy to achieve high speed and high precision processing

X-axis stepped layout

Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality

X-axis stepped layout

Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality：32/32/32m/min

High rigidity, high precision

Low noise roller type linear guideway
Ensure high stability
高精度
应用行业
Application industry

Suitable for parts with complex shapes and
mass production of products requiring high precision
Especially the processing of box and complex structural parts
Industries such as automotive, aerospace, Marine and power generation

X/Y/Z axis travel: 750/750/750mm
Distance between two columns: 120-870mm
Distance from table surface to spindle nose: 130-1030mm
Worktable size: 520x600mm
Workpiece clamping type: 24xM16mm
Rotary diameter of workpiece: Φ1400
Max. load bearing of worktable: 900kg
Spindle hole taper: BT50
Spindle power: 15/18.5KW
Max. spindle speed: 5300(belt)rpm
Max. feed speed: 6000mm/min
Rapid feed speed: 32/32/32m/min
Tool magzine capacity: 24T
Tool changing time: 5.5S
Machine dimension: 4950*3800*2980mm
Machine weight: 12000kg
