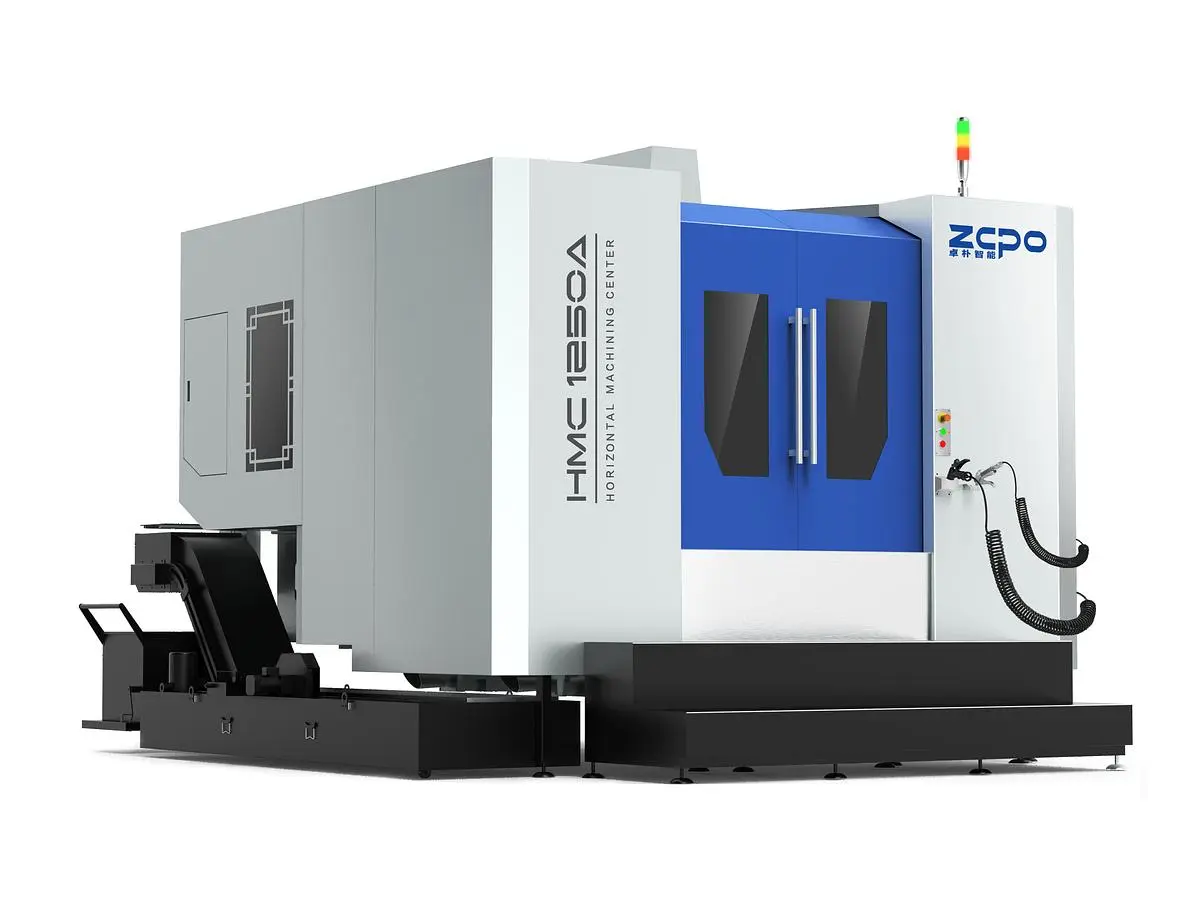

NEW 2026 ZOPO HMC1250A

Machine structure

“┻” shape and column moving structure to afford high rigidity and travel speed;
All the machine parts adopted finite element analysis.

spindle
Spindle
BT50 high tension spindle.
Broaching force 1800kgf (17640N).
Less prone to vibration during processing.
High precision double nut ball screw

Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed: 20/20/20m/min

High rigidity, high precision

Low noise roller type linear guideway
Ensure high stability
丝杆
应用
Man-machine interaction

Vertical stainless steel armor protection design, Better chip removal.

Combined with steeply sloped chip flutes, reduce manual cleanup time.

X/Y/Z axis travel: 2400/1300/1300mm
Distance between two columns: 140-1440mm
Distance from table surface to spindle nose: 450-1750mm
Worktable size: 1250x1250mm
Workpiece clamping type: 7-22x125
Rotary diameter of workpiece: Φ3200
Max. load bearing of worktable: 3000kg
Spindle hole taper: BT50
Spindle power: 15/18.5KW
Max. spindle speed: 5300rpm
Max. feed speed: 5300mm/min
Rapid feed speed: 20/20/20m/min
Tool magzine capacity: 24T
Tool changing time: 5.5S
Machine dimension: 7000*5800*4000mm
Machine weight: 22000kg
