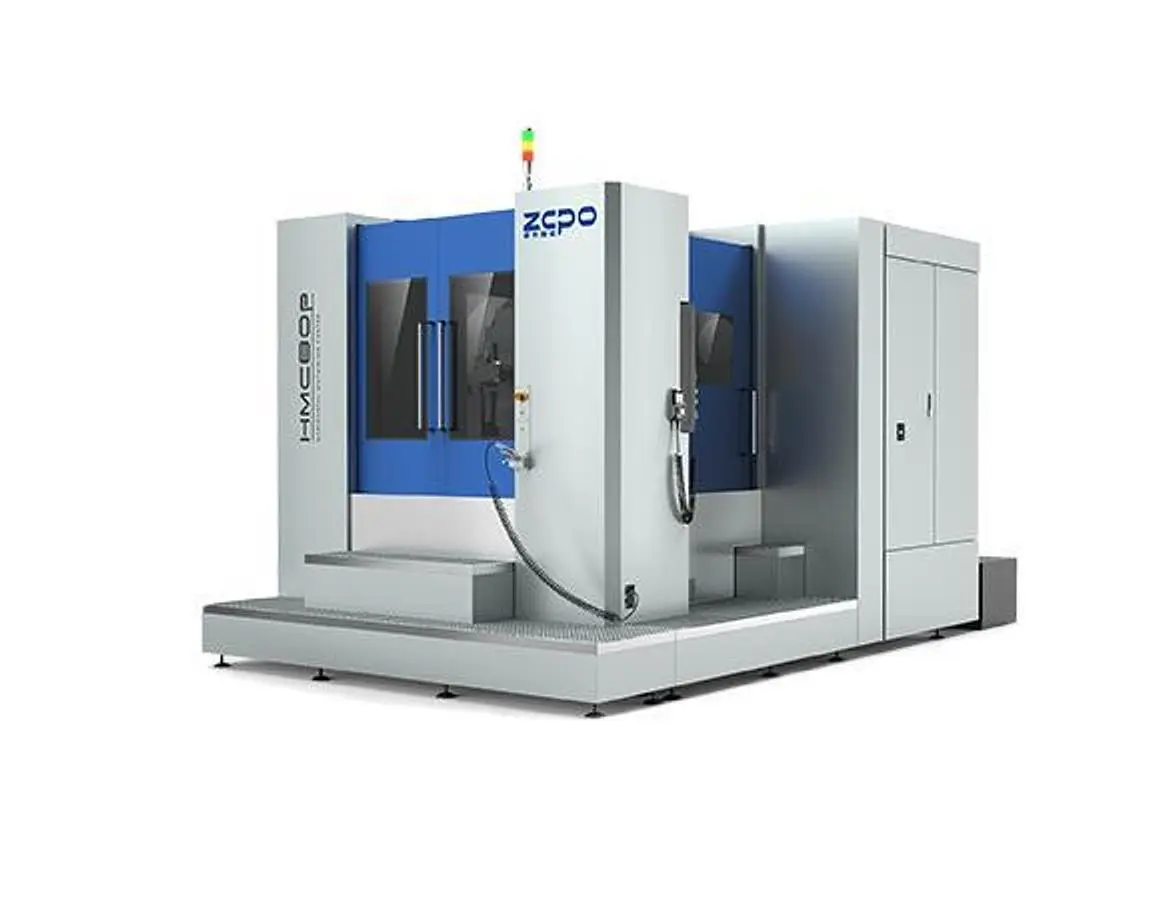

NEW 2026 ZOPO HMC80P

Positive T type machine body

Better igidity than inverted T type
The accuracy of the whole machine is significantly improved
Less movement inertia of 3 axis moving component
Easy to achieve high speed and high precision processing

X-axis stepped layout
Effectively lower the center of gravity of the column
Strengthen the force support behind the column during machining
Improve spindle boring quality

High precision double nut ball screw

Guaranteed heavy cutting
Ensure machining accuracy
Extend the service life of the lead screw
3 axes rapid feed speed：24/24/24m/min

High rigidity, high precision
Low noise roller type linear guideway
Ensure high stability
更易用更强大的控制系统
加工应用能力
Application industry

Suitable for parts with complex shapes and
mass production of products requiring high precision
Especially the processing of box and complex structural parts
Industries such as automotive, aerospace, Marine and power generation

X/Y/Z axis travel: 1300/1000/1000mm
Distance between two columns: 120-1120mm
Distance from table surface to spindle nose: 200-1200mm
Worktable size: 800x800mm
Workpiece clamping type: 7-22x125mm
Rotary diameter of workpiece: Φ1300
Max. load bearing of worktable: 2000kg
Spindle hole taper: BT50
Spindle power: 15/18.5KW
Max. spindle speed: 5300(belt)rpm
Max. feed speed: 6000mm/min
Rapid feed speed: 24/24/24m/min
Tool magzine capacity: 24T
Tool changing time: 5.5S
Machine dimension: 6900*4200*3500mm
Machine weight: 18000kg
