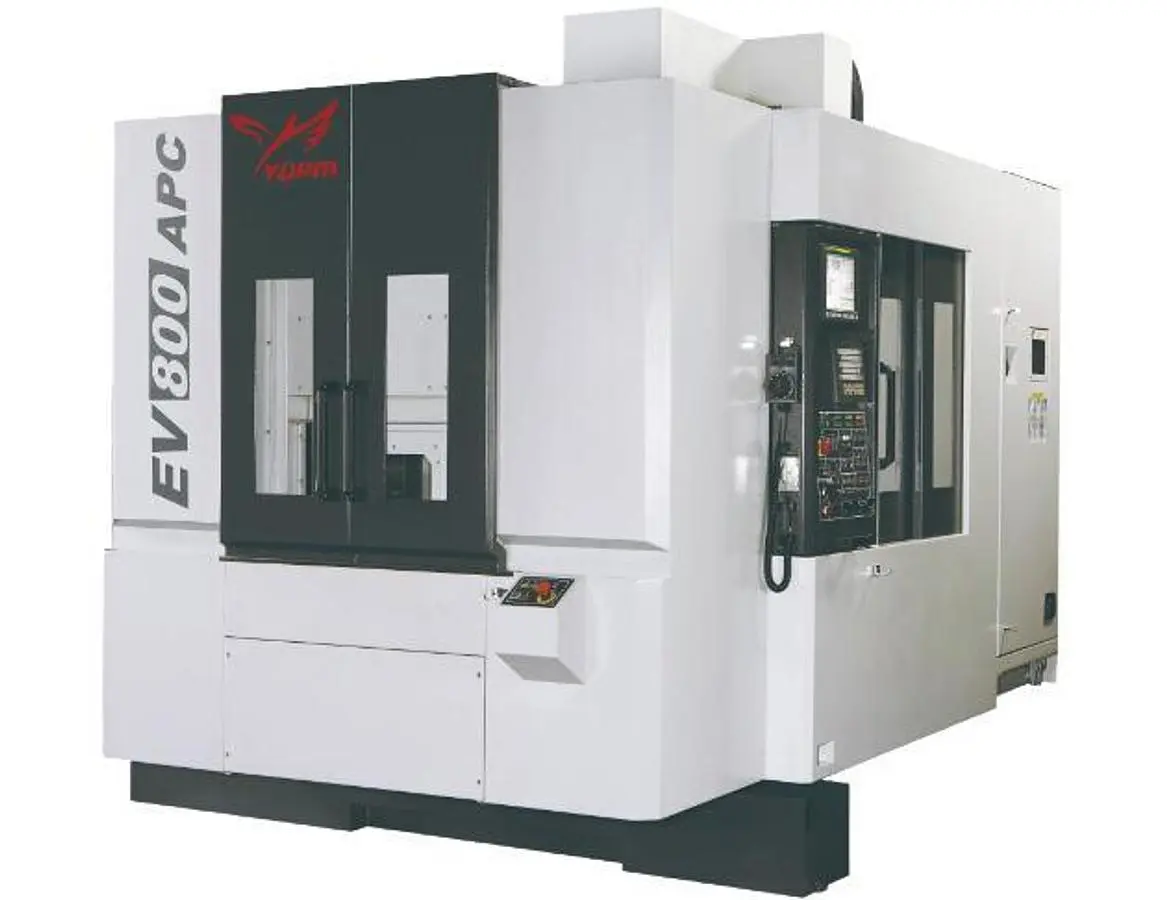

ITEM: UNIT EV-800APC
Table dimension: mm 800 x 460
Woking area: mm 860 x 600
T-slot: mm Bolt hole 60-M12 x P80
Number of work table: pcs 2
Max. Loading capacity: kgs 250
Max. travel range of X/Y/Z-axis: mm 860 x 500 x 500
Distance from spindle nose to table surface: mm 120~620
Distance from spindle center to column: mm 700
Spindle taper: ISO No. 40
Spindle bearing inner dia.: mm Φ70
Spindle speed: rpm STD: 8,000 belt-drive
OPT: 10,000 / 12,000 / 15,000
Feedrate of X / Y / Z-axis: mm/min 1~10,000
Slideways of X / Y/ Z-axis: Linear guideway
Rapid traverse of X / Y / Z-axis: m/min 36 / 36 / 30
Tool capacity: pcs STD: 24; OPT: 30
Tool selection: Bi-direction
Max. tool dia. x length: mm Φ80 x 300
Max. tool weight: kgs 7
Tool shank: STD: BT40; OPT: CAT40, SK40, BBT40, HSK63A
Spindle drive motor: kw STD: ß12 (11/15); OPT: α8 (7.5/11); α12 (11/15)
Servo motors of X / Y / Z-axis: kw STD: ß12/ß12/ß22 (1.8/1.8/3)
OPT: α12/α12/α22 (3/3/4)
Coolant motor: kw 1.08 (50Hz) / 1.62 (60 Hz)
Chip conveyor motor: kw 0.2
APC motor: kw STD: ß22 (2.5); OPT: α12 (3)
Positioning: mm ±0.004
Repeatability: mm ±0.003
Power requirement: kVA 380-415 / 220V 21 KVA
Floor area (L x W x H): mm 3,469 x 3,335 x 2,474
Packing dimension: mm 3,530 x 2,280 x 2,550 + 3,500 x 2,280 x 1,850
Net weight: kgs 6,400
Gross weight: kgs 7,100
