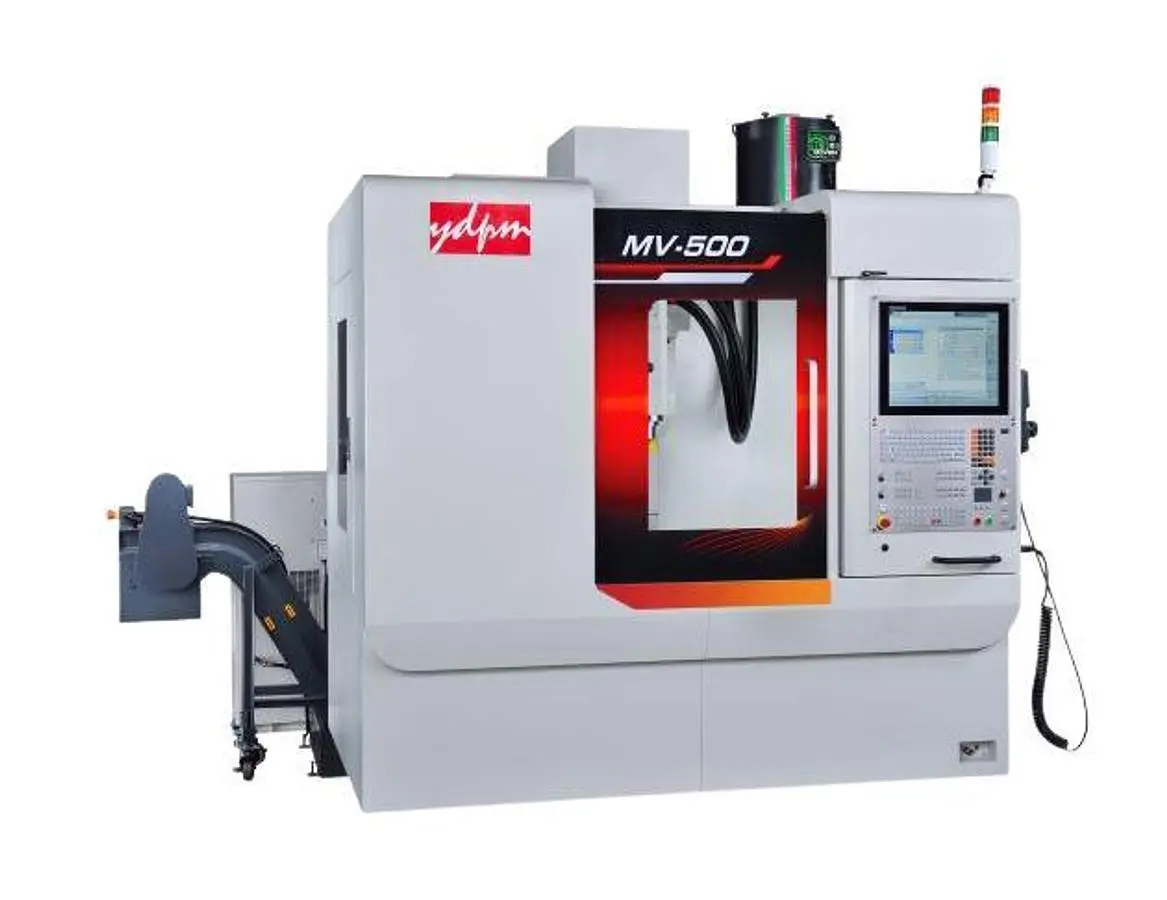

ITEM: MV-500 MV-800
Working Table Dimension: 600 x 500 mm 900 x 500 mm
Working Area: 500 x 500 mm 800 x 500 mm
Max. Loading Capacity: 500 kg 500 kg
Max. Travel Range of X/Y/Z-axis: 500 / 500/ 500 mm 800/ 500/ 500 mm
Distance from Spindle Nose to Table Surface: 100-600 mm 100-600 mm
Spindle Speeds: STD: 12,000 rpm (belt-driven)
OPT: 12,000/15,000 rpm (direct-drive)
24,000 (built-in) STD: 12,000 rpm (belt-driven)
OPT: 12,000/15,000 rpm (direct-drive)
24,000 (built-in)
Tool Capacity: STD: 20 pcs (arm type)
OPT: 24 pcs STD: 20 pcs (arm type)
OPT: 24 pcs
