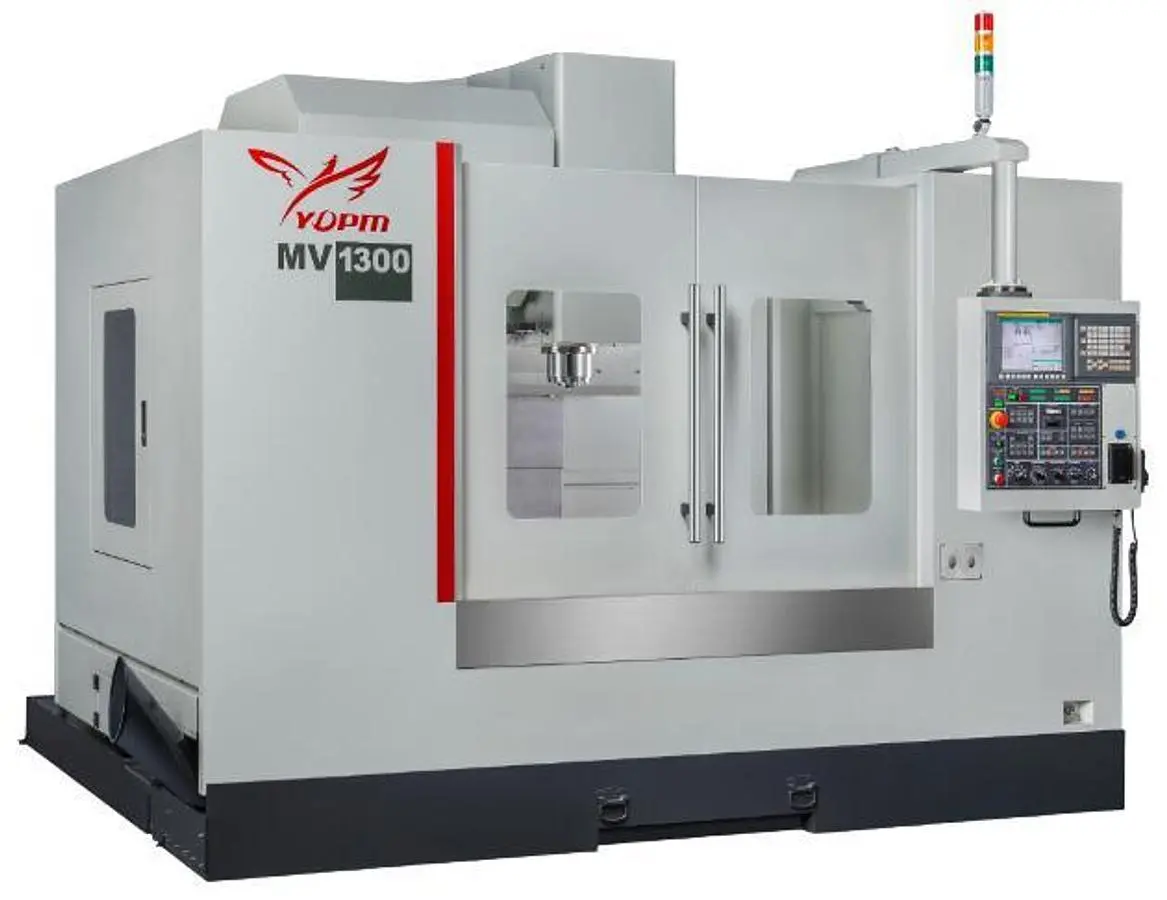

ITEM: UNIT MV-1300 BMV-1300
Table dimension: mm 1500 x 650
Woking area: mm 1,300 x 680
T-slot: mm CD125 x 18 x 5
Number of work table: pcs 1
Max. Loading capacity: kgs 1,200
Max. travel range of X/Y/Z-axis: mm 1,300 / 680 / 680
Distance from spindle nose to table surface: mm 150~830
Distance from spindle center to column: mm 765 760
Spindle taper: ISO No. 40
Spindle bearing inner dia.: mm Φ70
Spindle speed: rpm STD: 10,000 belt-drive
OPT: 8,000, 12,000
Feedrate of X / Y / Z-axis: mm/min 1~12,000
Slideways of X / Y/ Z-axis: Linear guideway Box way
Rapid traverse of X / Y / Z-axis: m/min 30 18
Tool capacity: pcs STD: 24; OPT: 30
Tool selection: Bi-direction
Max. tool dia. x length: mm Φ80 x 300
Max. tool weight: kgs 7
Tool shank: STD: BT40; OPT: CAT40, SK40, BBT40, HSK63A, BT50
Spindle drive motor: kw α15 (15/18.5)
Servo motors of X / Y / Z-axis: kw α22 (4)
Coolant motor: kw 1.08 (50Hz) / 1.62 (60 Hz)
Chip conveyor motor: kw 200
APC motor: kw –
Positioning: mm ±0.005
Repeatability: mm ±0.003 ±0.004
Power requirement: kVA 380-415 / 220V 30 KVA
Floor area (L x W x H): mm 4,045 x 2,599 x 2,878
Packing dimension: mm 4,420 x 2,300 x 2,530 + 1,050 x 800 x 920
Net weight: kgs Machine: 7,980; Accessory: 1,500
Gross weight: kgs Machine: 9,000; Accessory: 1,650
