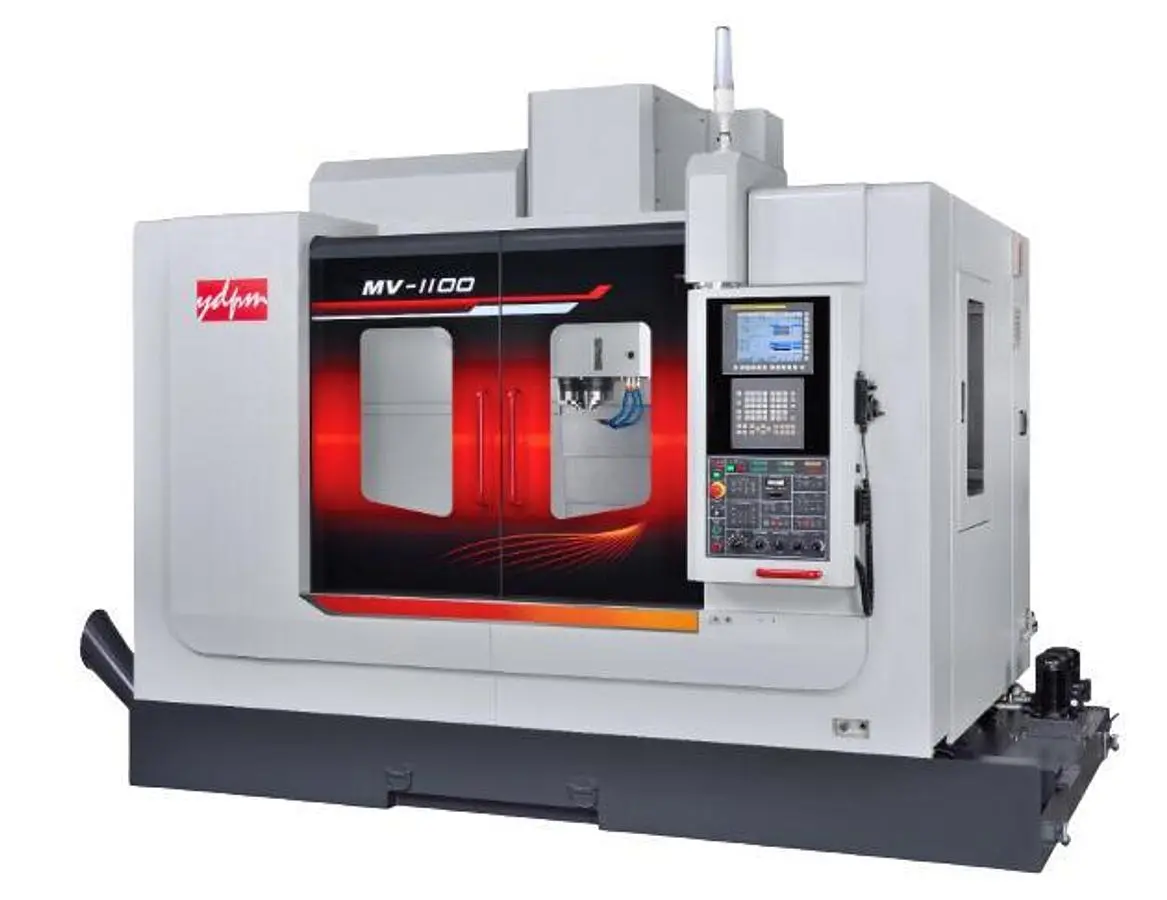

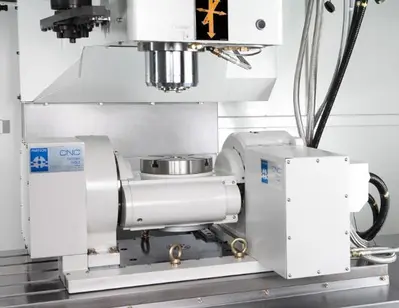

ITEM: UNIT MV-1100 BMV-1100
Table dimension: mm 1,180 x 560
Woking area: mm 1,100 x 650
T-slot: mm CD100 x 18 x 5
Number of work table: pcs 1
Max. Loading capacity: kgs 1,000
Max. travel range of X/Y/Z-axis: mm 1,100 / 650 / 620
Distance from spindle nose to table surface: mm 150~770
Distance from spindle center to column: mm 743 680
Spindle taper: ISO No. 40
Spindle bearing inner dia.: mm Φ70
Spindle speed: rpm STD: 10,000 belt-drive
OPT: 8,000, 12,000, 15,000
Feedrate of X / Y / Z-axis: mm/min 1~10,000
Slideways of X / Y/ Z-axis: Linear guideway Box way
Rapid traverse of X / Y / Z-axis: m/min 30 18
Tool capacity: pcs STD: 24; OPT: 30
Tool selection: Bi-direction
Max. tool dia. x length: mm Φ80 x 300
Max. tool weight: kgs 7
Tool shank: STD: BT40; OPT: CAT40, SK40, HSK63A
Spindle drive motor: kw STD: α12 (11/15); OPT: α15 (15/18.5)
Servo motors of X / Y / Z-axis: kw α12 (2.7)
Coolant motor: kw 1.08 (50Hz) / 1.62 (60 Hz)
Chip conveyor motor: kw 0.2
APC motor: kw –
Positioning: mm ±0.004 ±0.005
Repeatability: mm ±0.003 ±0.004
Power requirement: kVA 380-415 / 220V 21 KVA
Floor area (L x W x H): mm 4,299 x 2,453 x 2,814
Packing dimension: mm 3,730 x 2,280 x 2,530 + 1,050 x 800 x 920
Net weight: kgs Machine: 7,000; Accessory: 270
Gross weight: kgs Machine: 7,670; Accessory: 390
