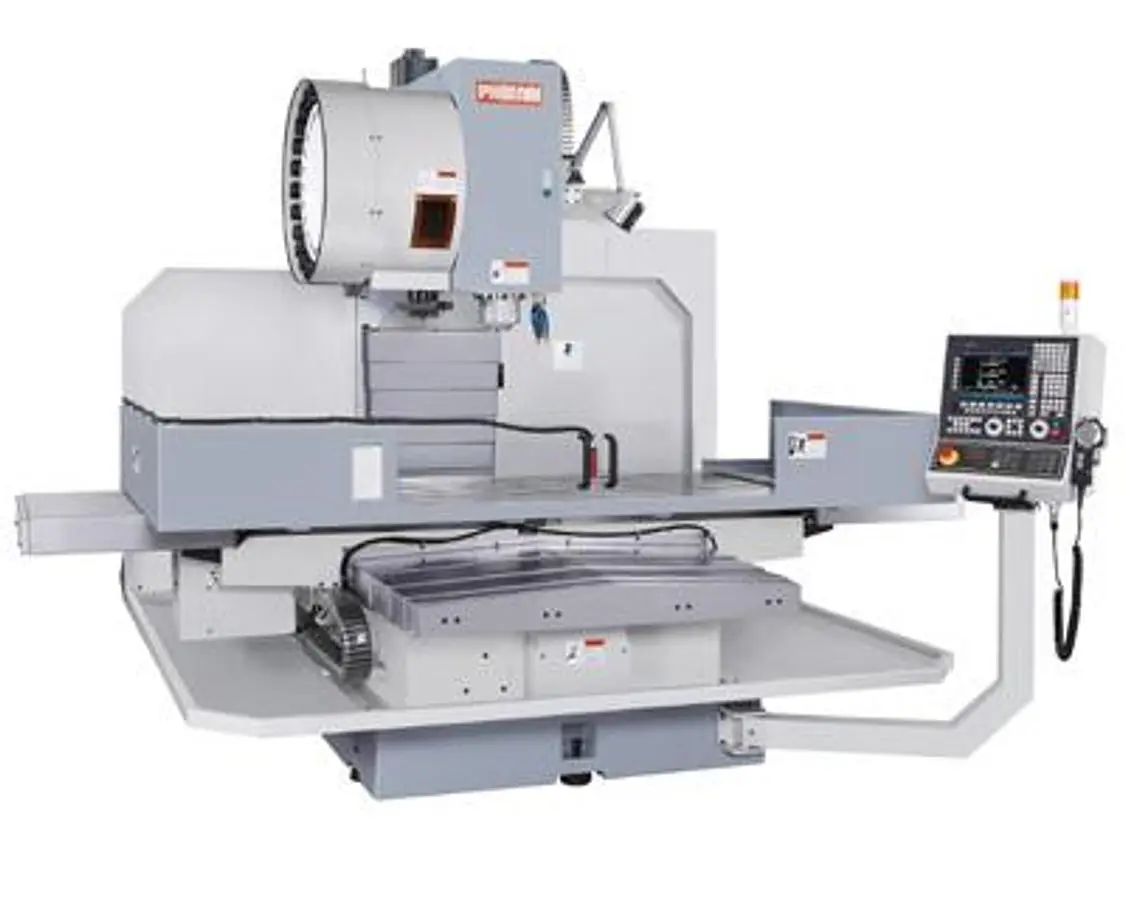

NEW TOP PHOENIX FM-340MH FM-340ATC FM-395MH FM-395ATC

NEW TOP PHOENIX FM-340MH FM-340ATC FM-395MH FM-395ATC

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Bed Type Mills
Manufacturer:
TOP PHOENIX
Model:
FM-340MH FM-340ATC FM-395MH FM-395ATC
Stock #:
00070
Description

The manufacturer reserves the right to modify the design, specifications, mechanisms… etc. to improve the performance of the machine without prior notice. All the specifications shown above are just for reference.

Specifications

Working surface: 762x1830mm(30"x72") 813x2185mm (32"x86")
T-slots (size x number x pitch): 18mmx5x100mm (0.709"x5x3.9")
Max. table load: 1800kgs (3960 lbs)
Longitudinal travel (X axis): 1700mm (66-7/8") 2000mm (78-3/4")
Cross travel (Y axis): 850mm (33-7/16")
Vertical travel (Z axis): 710mm (28")
Distance from spindle end to table: 105~815mm (4-1/8"~32")
Distance from spindle center to column: 870mm (34"-1/4")
Distance from floor to table surface: 885mm (34-13/16")
Spindle nose taper: BT40 (or BT50, opt.)
Spindle speeds: vari 6000 r.p.m. (BT40) (or 8000/10000 r.p.m., opt.) (BT40)
Cutting feed rate (X, Y, Z axes): 1~5000mm/min. (max.)
Rapid traverse (X, Y axes): 10.0m/min. (max.)
Rapid traverse (Z axis): 10.0m/min. (max.)
Gear ratio of motor pulley to ballscrew pulley on X, Y, Z axes: Direct coupled
Tool storage capacity: — 16 pcs (or 20pcs,opt.)(BT40) (carrousel) — 16pcs (or 20pcs,opt.)(BT40) (carousel)
Max. tool weight: — 7kgs (15.4 lbs)/ 15kgs(33.1 lbs)(BT50) — 7kgs (15.4 lbs)/ 15kgs(33.1 lbs)(BT50)
Max. tool size (dia. x length): — 89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50) — 89x250mm (3-1/2"x9-7/8")/ 125x300mm (4-7/8"x11-3/4")(BT50)
Tool selection: — Random — Random
Tool shank: — BT40 (or BT50, opt.) — BT40 (or BT50, opt.)
Pull stud bolt: — MAS-P40T-1/ MAS-P50T-1 (BT50) — MAS-P40T-1/ MAS-P50T-1 (BT50)
Distance from gauge line of tool holder to table: — 645mm (25-3/8") — 645mm (25-3/8")
Spindle motor (AC servo): 7.5 / 11KW (or 11/15KW, opt.)
X, Y, Z axes motor: AC servo, 3.5KW, 2000 r.p.m.
Coolant pump motor: AC1/4HP
Gross weight (Approx.): 6700kgs (14740 lbs) 6900kgs (15180 lbs) 7000kgs (15470 lbs) 7200kgs (15912 lbs)
Packing size (L x W x H): 3000x2300x2545mm (118-1/8"x90-9/16"x100-3/16") +3030x2300x1060mm (119-5/16"x90-9/16"x41-3/4")
