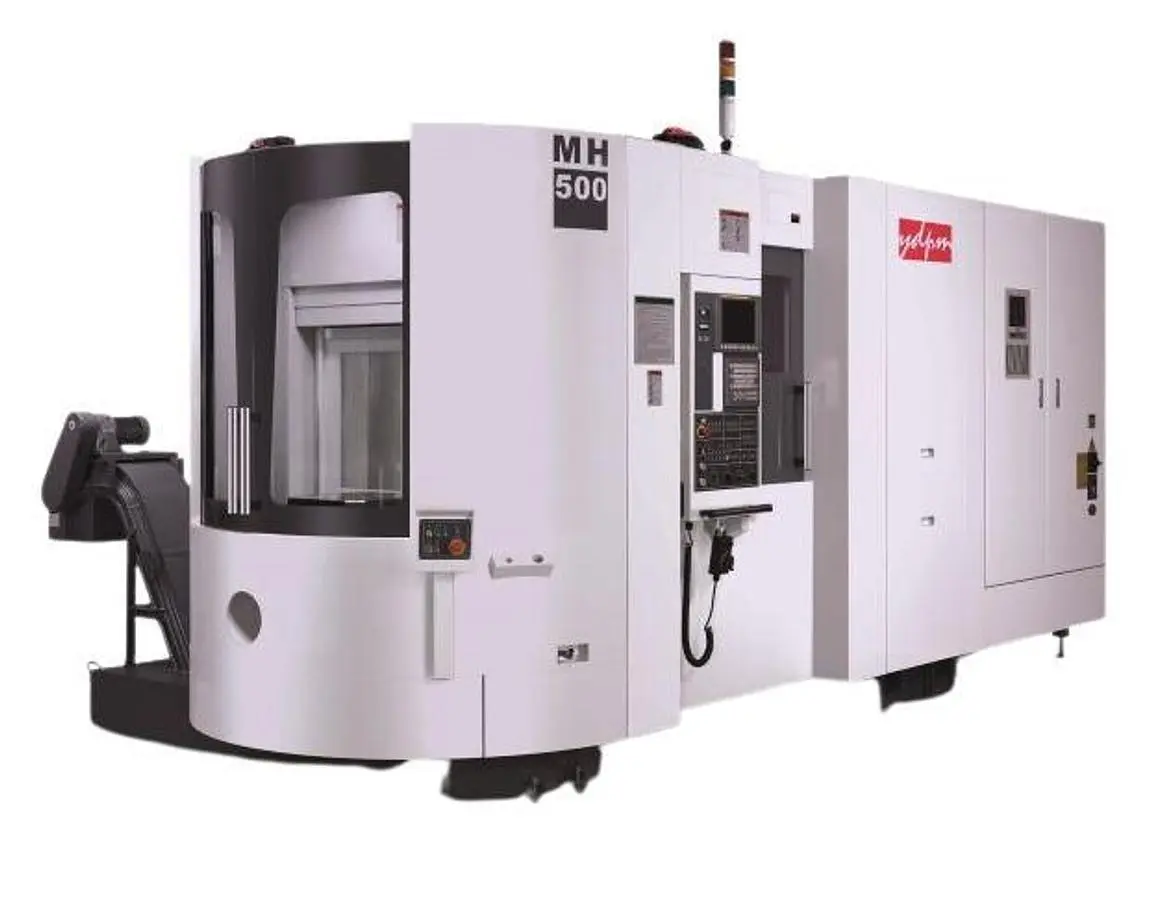

ITEM: MH-500
Working Table Dimensions: STD: 500 x 500 mm
OPT: 400 x 400 mm
Max. Loading Capacity: STD: 500 kg
OPT: 400 kg
B Minimum Indexing: STD: 0.001°
OPT: 1°
Pallet Capacity: 2 pcs
Max. Diameter of Workpiece: Ø570
Max. Height of Workpiece: 640 mm
Max. Travel of X/Y/Z-axis: 610 / 510 / 680 mm
Distance from Spindle Nose to Table Center: 140-820 mm
Spindle Taper: ISO No. 40
Spindle Speeds: STD: 10,000 rpm (belt-driven)
OPT: 12,000 rpm (belt-driven)
Tool Capacity: STD: 40 pcs
OPT: 60 pcs
