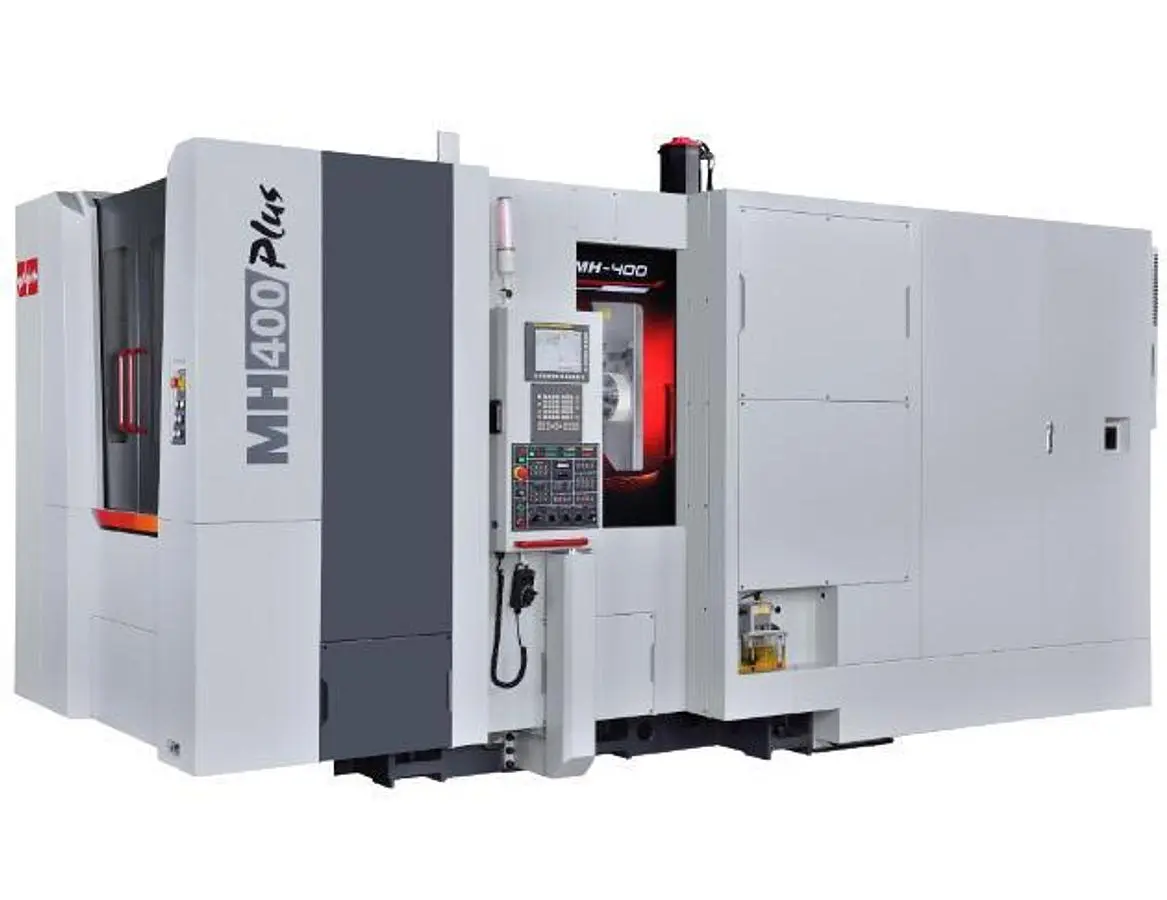

ITEM: MH-400
Working Table Dimensions: 400 x 400 mm
Max. Loading Capacity: 400 kg
B Minimum Indexing: STD: 0.001°
OPT: 1°
Pallet Capacity: 2 pcs
Max. Diameter of Workpiece: Ø550
Max. Height of Workpiece: 800 mm
Max. Travel of X/Y/Z-axis: 550 / 510 / 630 mm
Distance from Spindle Nose to Table Center: 70-700 mm
Spindle Taper: ISO No. 40
Spindle Speeds: STD: 10,000 rpm (belt-driven)
OPT: 12,000 rpm (belt-driven)
Tool Capacity: STD: 40 pcs
OPT: 60 /120 pcs
